Set Dimension offset from wall

_Vijay · February 22, 2021, 1:31pm

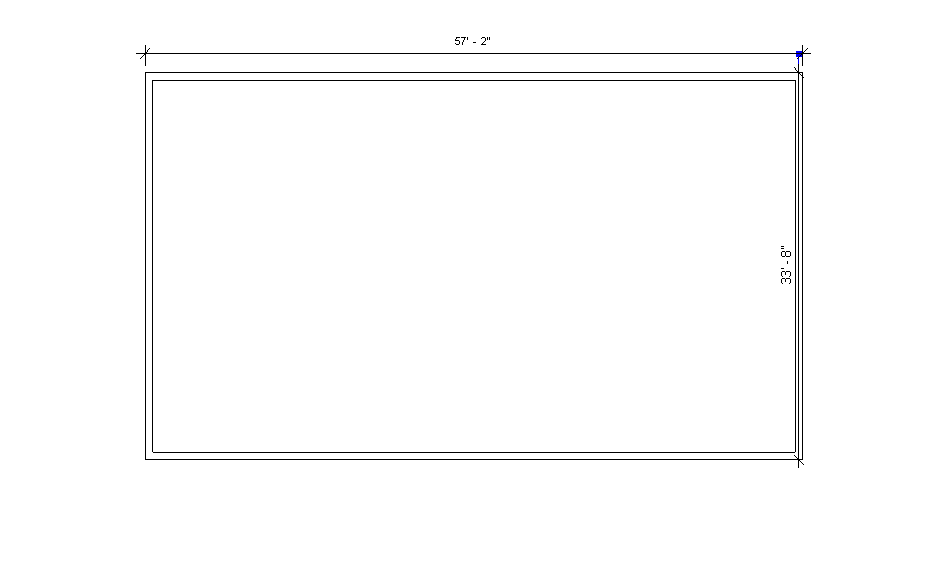

How can I set the same offset from all walls

Alban_de_Chasteigner · February 22, 2021, 2:01pm

What did you try ? I think you know the forum Guidelines.

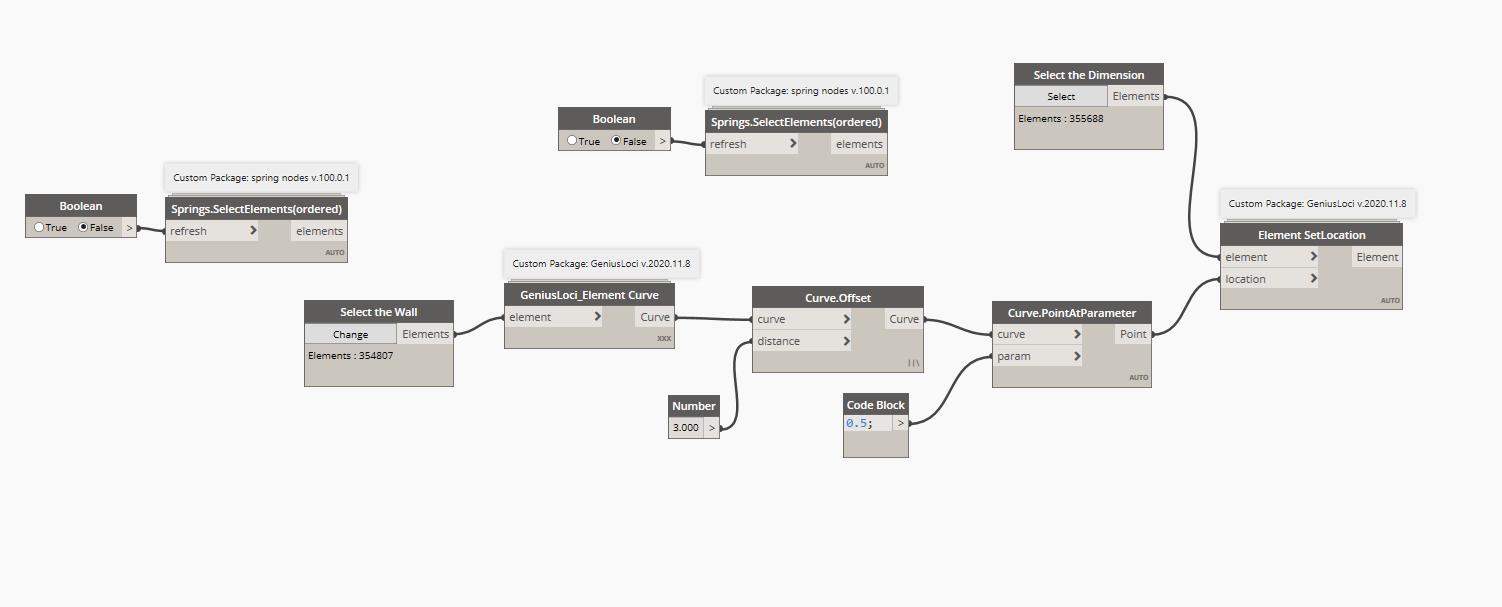

You can do it like this :

You need to find a logic with the Curve.Offset node to find external or internal curves.

_Vijay · February 22, 2021, 2:05pm

it’s working fine only in horizontal not in vertical. Any thoughts?

meantime I will try yours

Alban_de_Chasteigner · February 22, 2021, 2:13pm

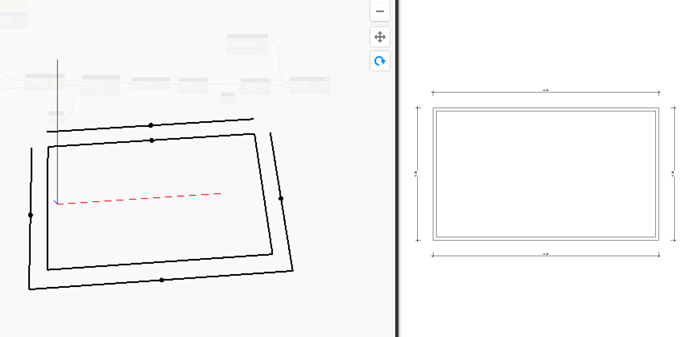

It’s working fine for me :

_Vijay · February 22, 2021, 2:21pm

Foe me:-(

_Vijay · February 22, 2021, 2:21pm

can you show your graph

_Vijay · February 22, 2021, 2:30pm

It works fine for me, but as you mentioned I need to find logic with the Curve.Offset node to find external or internal curves.

Alban_de_Chasteigner · February 22, 2021, 2:41pm

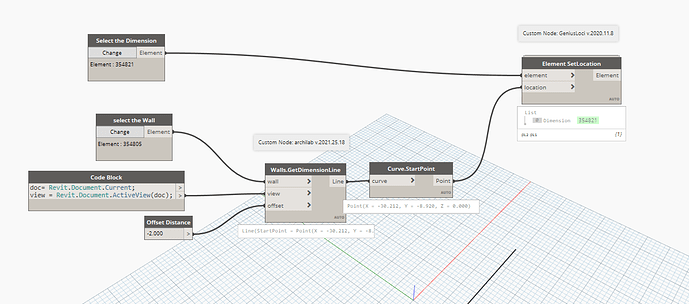

Use the PolyCurve.Offset node instead.

_Vijay · February 22, 2021, 2:47pm

thanks,
for that selected walls should be connected.

I will try and update
