Precast concrete beam over door

Revit
,
1

I want to run a script that would place a precast concrete beam over a door, with 200mm wider on both sides.

I’m very new to dynamo, so any help would be highly appreciated.

2

Welcome to the Forum @rudolf.
The best way to receive help here is to try to make a graph and let us know if you get stuck. The usually well suggest alternatives or a different approach if needed.

3

See below

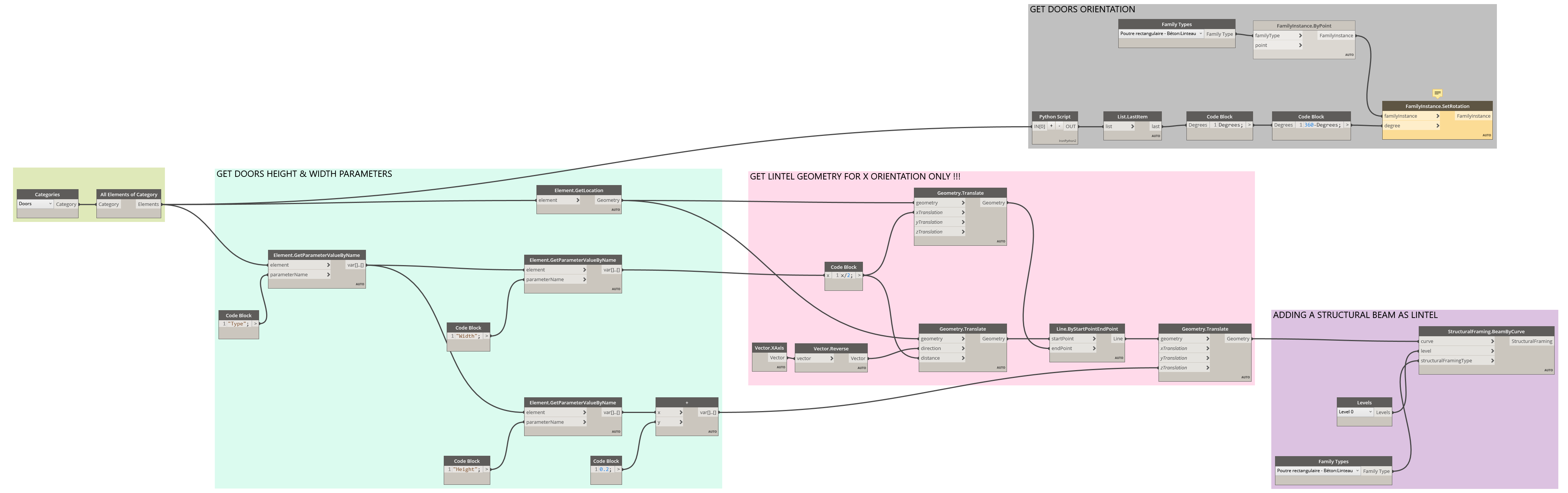

Lintels_Doors
Lintels_Doors.png4492×972 282 KB

1 Like
4

Thanks @Abdul_Ameer that really helped a lot. I have used what you have given me there. I would like to develop this further. Next I am going to try and have dynamo find the wall thickness of the wall the door is inserted to and create a beam of similar width. Also the wall construction type, as lintels will only be required in brick walls.

So far I have been able to find the wall thickness in Dynamo with the help of shared parameter.

The material class I have also been able to find, And been able to add a conditional statement (true/false) for each wall.

The problems I have found so far:

  1. The solution from @Abdul_Ameer creates beams in only 1 direction
  2. Cant link the ‘material class’ statement to create only beams for ‘Masonry’ walls.
  3. Don’t know how to link the wall thickness to beam thickness
5

Does anybody know how to make the beams be in the same direction as the wall. I’ve used the info as provided by @Abdul_Ameer following that method only creates it in the x-axis. I have tried various other nodes, but none comes even close to this. It worked perfectly if the wall is aligned in the x-axis direction only

6

You can extract the rotation of the doors and set your lintel to that rotation.

Lintel
Lintel.PNG1301×746 109 KB

Here is the Python code from @m.blijsterbosch’s Elements.get.Rotation package/node.

import clr
import math

clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *

# Import RevitAPI
clr.AddReference('RevitAPI')
import Autodesk
#The inputs to this node will be stored as a list in the IN variable.
dataEnteringNode = IN
resultsRadian = []
resultsDegree = []
input = []

#verify that IN[0] is a list, if not make a list out of it
try:
	for items in IN[0]:
		input.append(items)
except:
	input.append(IN[0])

#make unwrapped list of elements
elements = []
for i in input:
	elements.append(UnwrapElement(i))

#get rotation parameter
for item in elements:
	resultsRadian.append(item.Location.Rotation)
	resultsDegree.append(math.degrees(item.Location.Rotation))

OUT = resultsRadian, resultsDegree
1 Like
7

Hello guys!

I’d like to thank you for your advice and I’ve tried on my own running this dynamo script in a sample project but I didn’t get @callbowen 's idea…
I’m new on Dynamo and any help will be very appreciated.
Thanks again

PS: this is the script that I’m using

lintel test
lintel test4212×1324 293 KB

8

Hi,

The node FamilyInstance.ByPoint need a point :slight_smile:
