Need help for script

[pjangid81]

Hi,

I am very new to Dynamo and Revit. I am just go through one of Autodesk Knowledge network article, " Place 3D Beams from Imported 3D Drawings" and getting curious to know is it possible through using dynamo quickly.

Link for article : https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/Revit-DocumentPresent/files/GUID-C00D5B51-6AC4-408C-86D5-531C1F3D13E8-htm.html

I have created some 3d polylines with different layers considering different I-Beams will be place same as shown in article with respective layers.

Is it possible to make an dynamo script for it.

Kindly guide me.

Thanks in advance.

Regards,
Pankaj

[infeeeee]

You have to create Dynamo geometry/lines from the imported dwg lines, or import the dwg via dynamo, than use the StructuralFraming.BeamByCurve node to create the beams.

[pjangid81]

Thnaks @infeeeee for your quick and valuable response. I will try for it and let you know if more help require.

[pjangid81]

Hi @infeeeee,

It works…Thanks a lot!

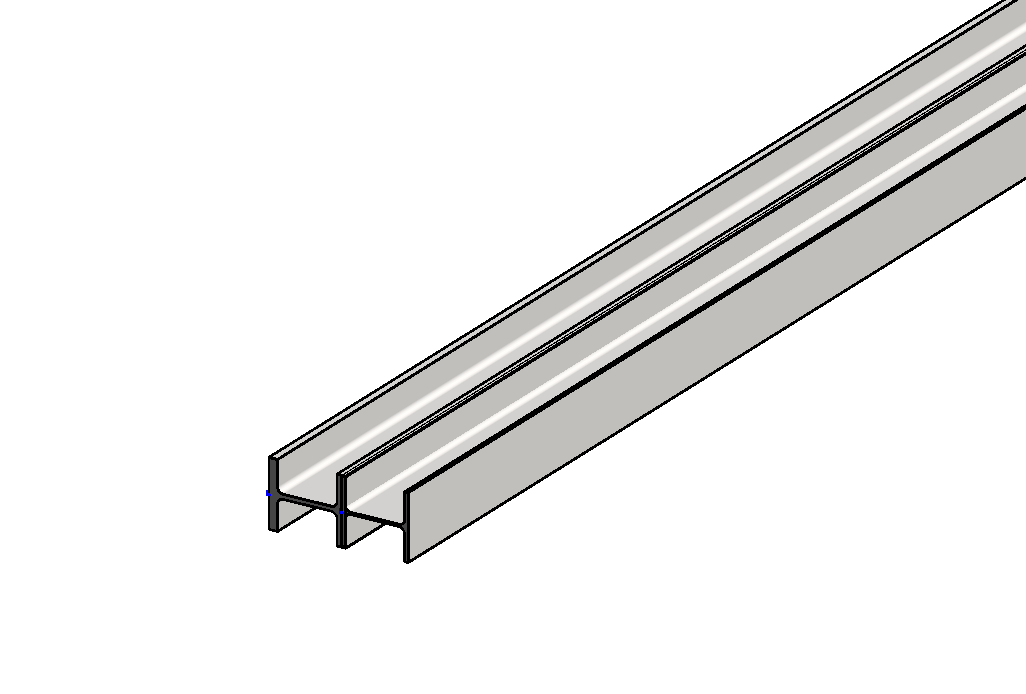

Now my only problem is to rotate that beam around X-axis?

Can you guide me?

[infeeeee]

Please use the search button on the top right corner of the site. A lot of questions was already answered.

I searched for ‘rotate beam’ these are the top results:

Beam rotation

Hi everyone, I’m trying to get the rotation of a beam but “Elements.get.Rotation” is not working with a beam. Does anyone know how to get the rotation of a beam. Thanks already! [vraag%202]

Structural beams rotation around own axis

Been trying to figure out away to control the orientation of a structural beam in section relative to a specific surface/line (green)? I use the “StructuralFraming.BeamByCurve” node on a list of lines to generate the beams, but no luck in controlling a rotation angle around a beam’s axis. See images below: [purlins]   [purlins 2]

[pjangid81]

@infeeeee,

Thanks for your quick response and it work for me.
