Placing various structural frames in curves written in Excel

Revit
1

This topic is a continuation of the following topics.

I made a curve with Excel and placed various structural families on it using the Familytype.byname node.

but some families are disappeared,

K-008
K-0081139×727 15.3 KB

and someone are rotated…

K-007
K-0071139×727 19 KB

what did I do wrong…?

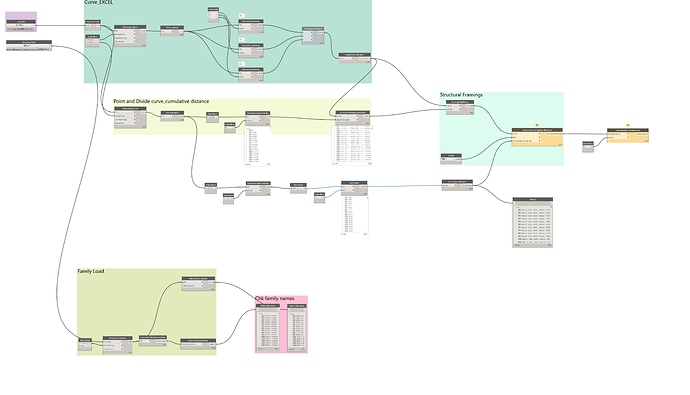

Whole
Whole4953×2841 599 KB
Tunnel Structural Framings_V.0.0.10 By Jicaprio_Import Families by path that their length has defined by Excel.dyn (293.1 KB)

2

Can you provide the excel data and the family you’re using. Spending hours recreating your work so we can help you solve your problem is counter productive.

3

Thank you very much for your reply.

I thought that Excel and family files were too large to upload. But it was not.

I will upload the Excel files with the families.

As much as you have helped me, I hope someday I will be able to help someone in this forum.

Thank you very much again and again

Linings only_Koreanname.zip.txt

2019년 3월 5일 (화) 오전 12:27, JacobSmall via Dynamo dynamobim@discoursemail.com님이 작성:

Civil Report_안성방향 V0.0.11.xlsx (413 KB)

4

Hi Jacob.
I deeply appreciate that you have seriously reviewed my topic.
Since I uploaded the topic, I’ve tried many different ways.
I tried to use adaptivecomponent.bypoins and cheked excel files and family files…
but I could not make any progress…
It’s been over a month since I started Dynamo, but I have not been able to solve anything yet.

Could you please let me know if you find any problems…?
