Modeling floors by wall location line

[chandanakeerthi19]

Hi,

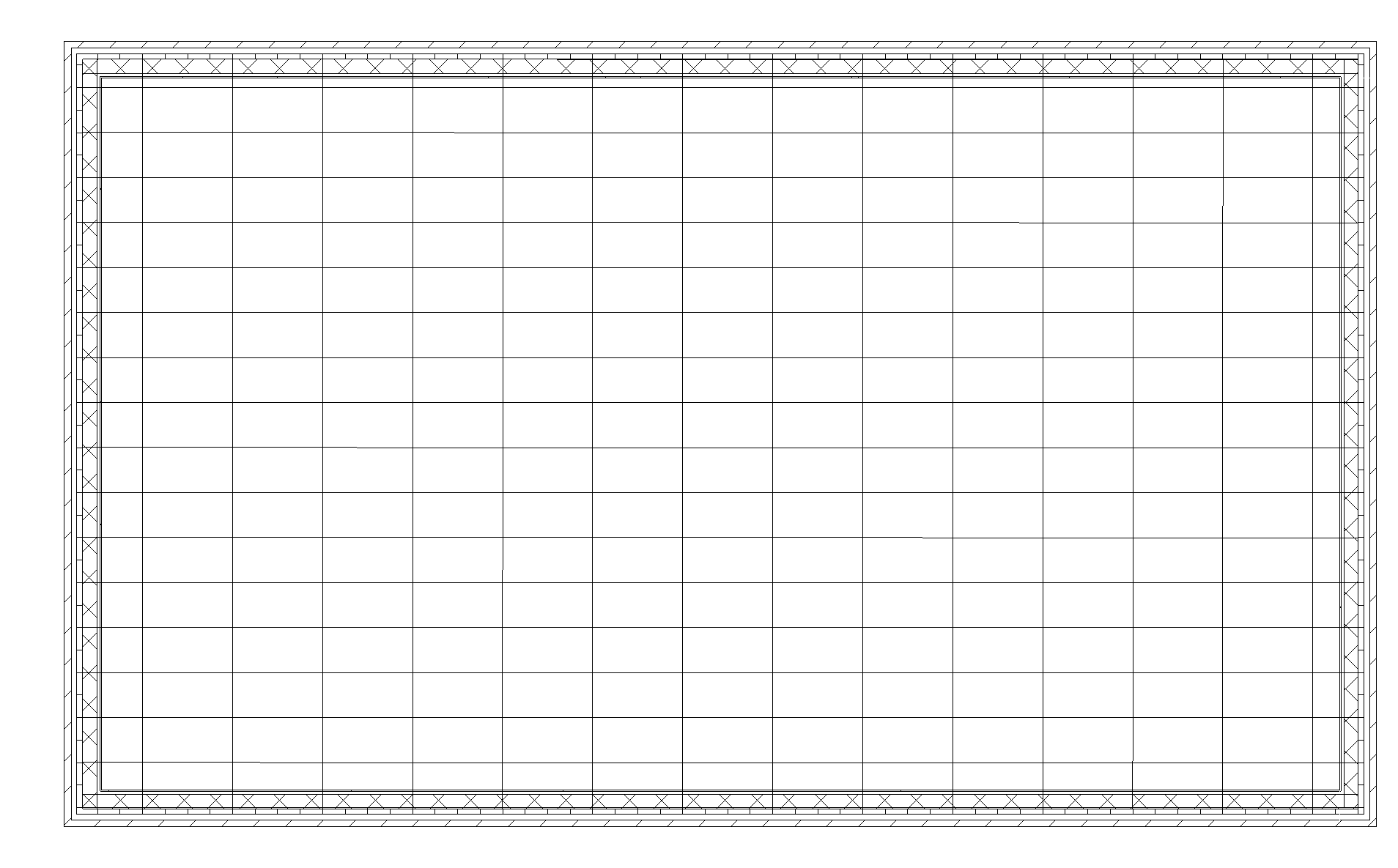

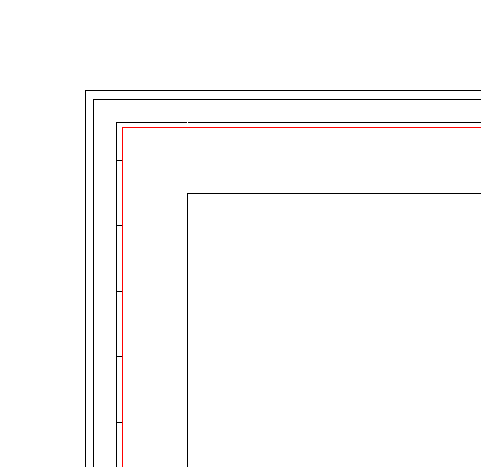

Can anyone please guide me about how to create floor, where the floor boundary is at CoreExterior location(red lines in image) of the wall but not exterior face, using dynamo?

Thank you in advance

[Alban_de_Chasteigner]

Hi @chandanakeerthi19,

Welcome to the Dynamo’s forum.
It’s a good practise to show your attempts.

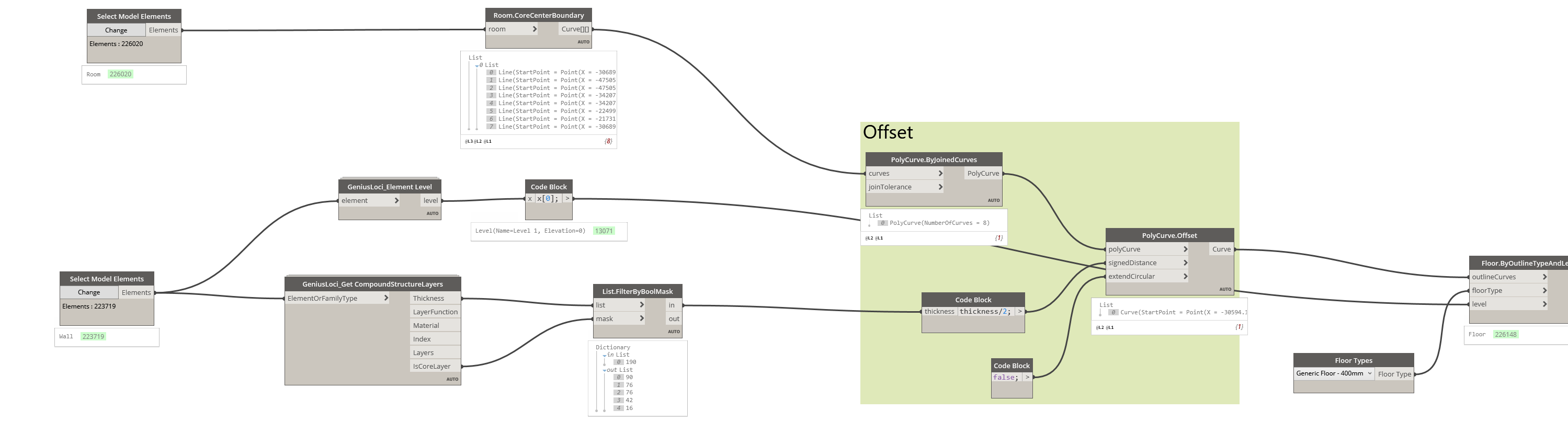

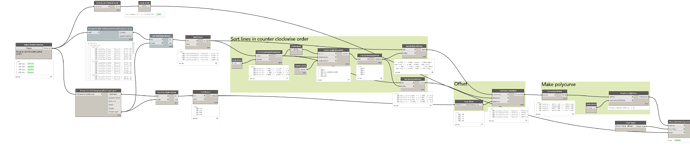

wall Core exterior to floor.dyn (47.8 KB)

[chandanakeerthi19]

Thank you @Alban_de_Chasteigner for the quick response.

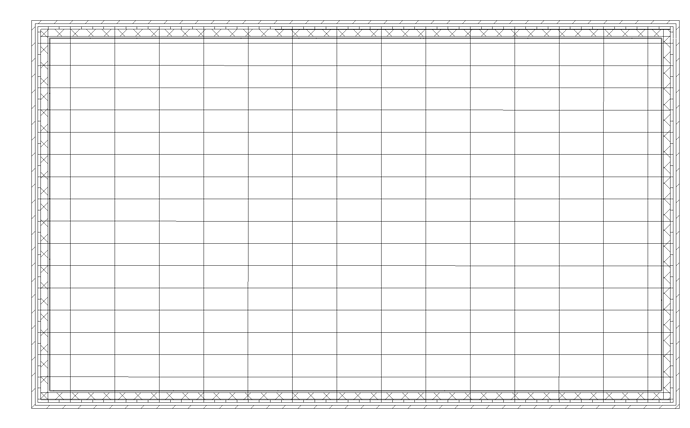

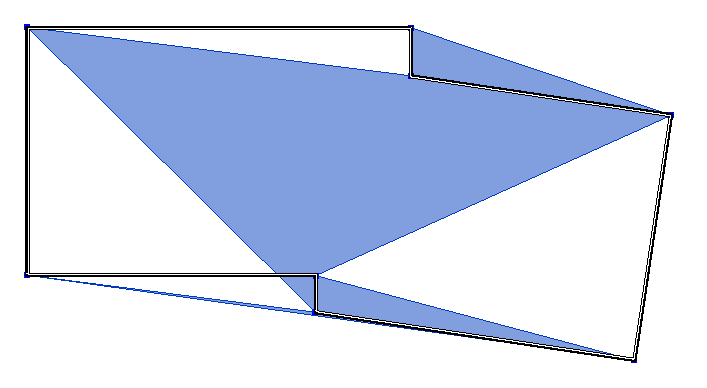

I tried your script but the result is different as shown in the image.

Please suggest.

[chandanakeerthi19]

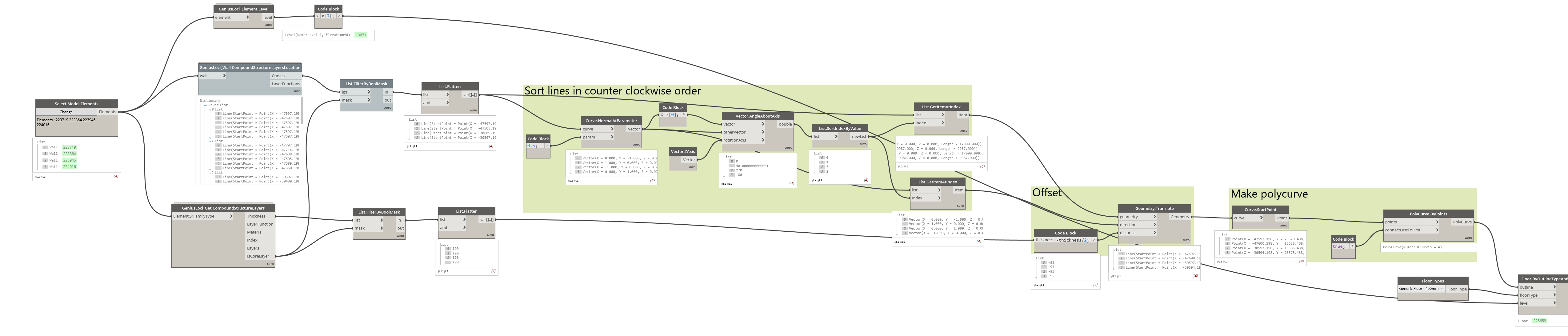

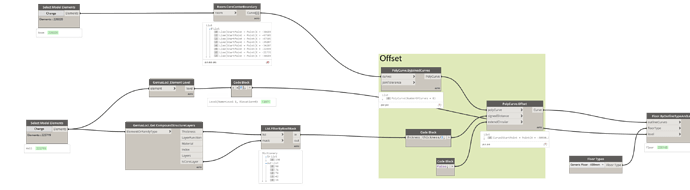

My script

[Alban_de_Chasteigner]

Use the properties of the room for a complex shape. You will get the boundary lines already sorted.

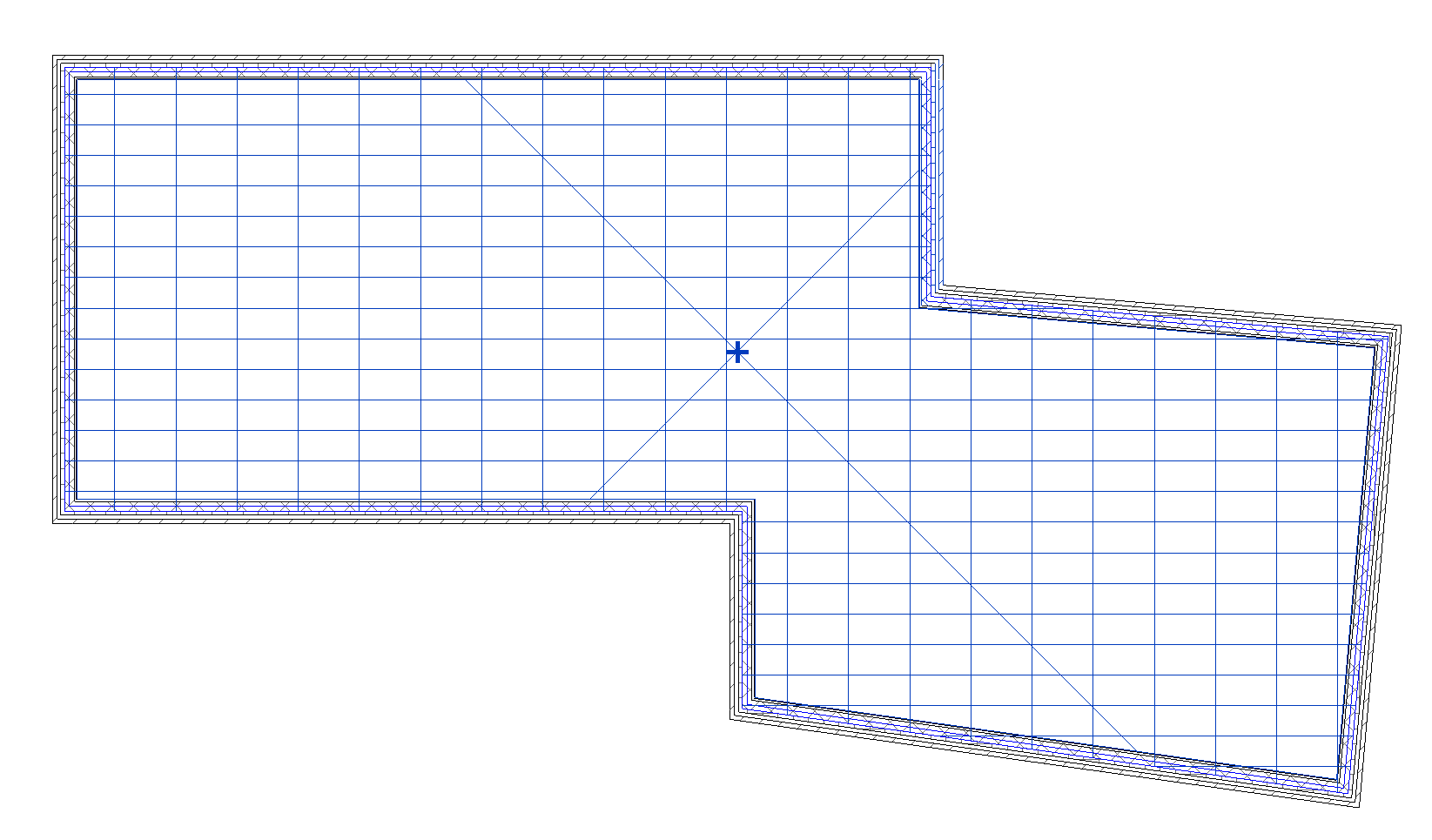

wall Core exterior to floor (room).dyn (26.1 KB)

[chandanakeerthi19]

But those are exterior walls. Do i need to create area plan for that? Please suggest.

[shehab10]

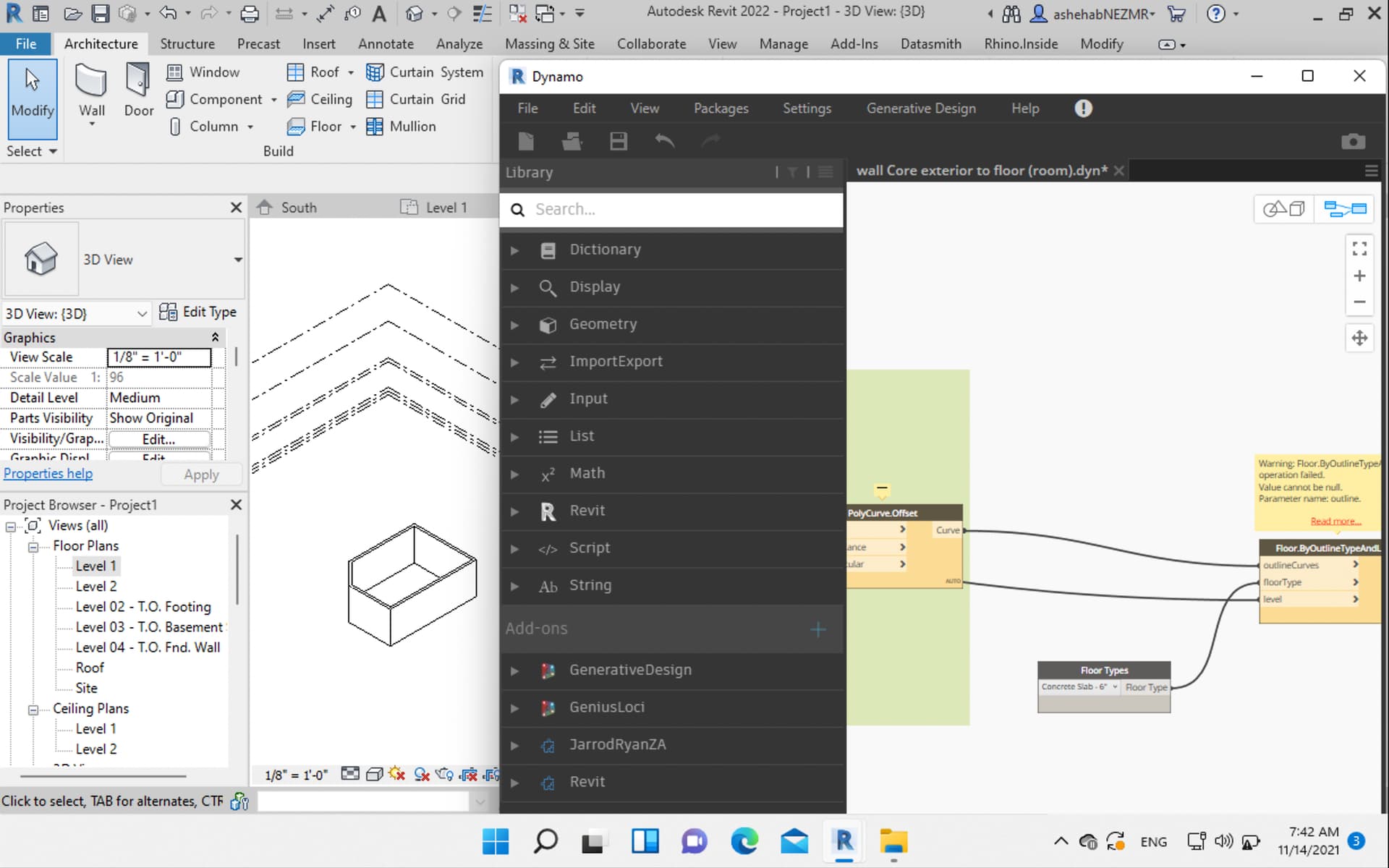

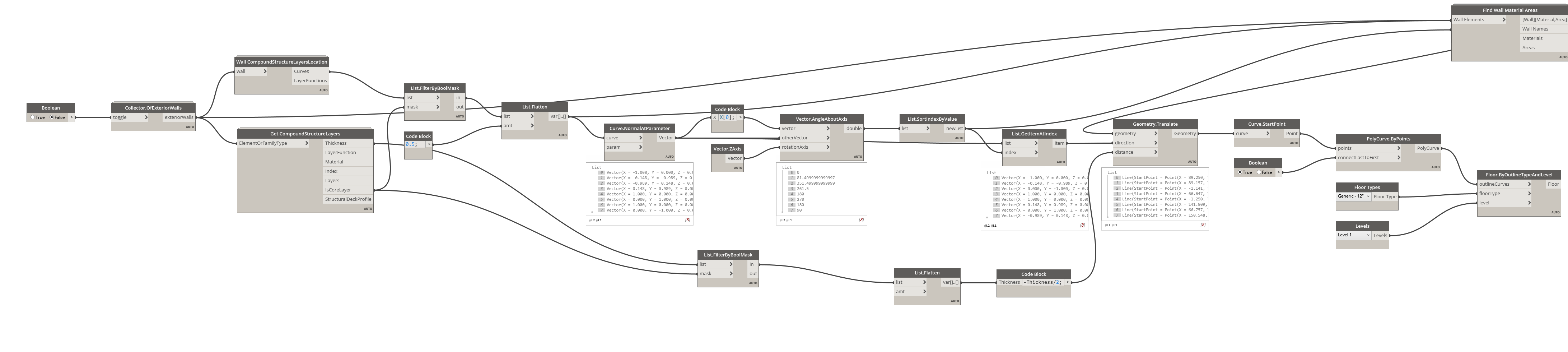

I am getting the following error as attached in the image , is there any explanation ? please
