Panel_Triangle Bent.rfa (292 KB) Hi all,

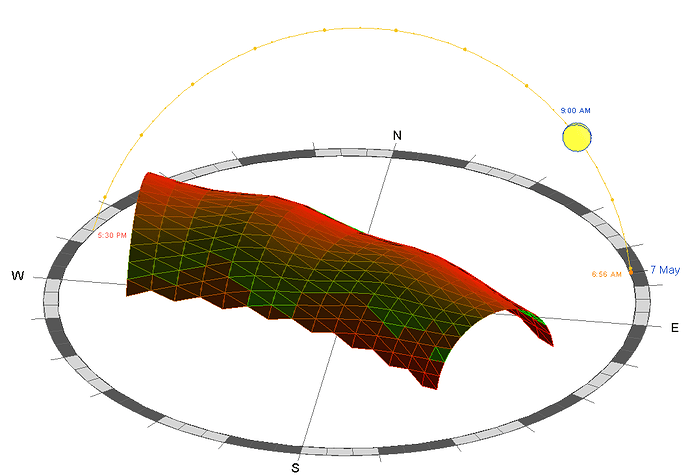

I am hoping someone can give me some insight here. I have been looking into using Dynamo too create a thermal map on a surface using the sun settings. I have created the graph and in principle it works, shading the panels (red = high exposure down to green = low exposure) however as you can see, it creates some unexpected result (ie green panels when they should be red).
This is using an adaptive component family on a mass (which is loaded into the project)

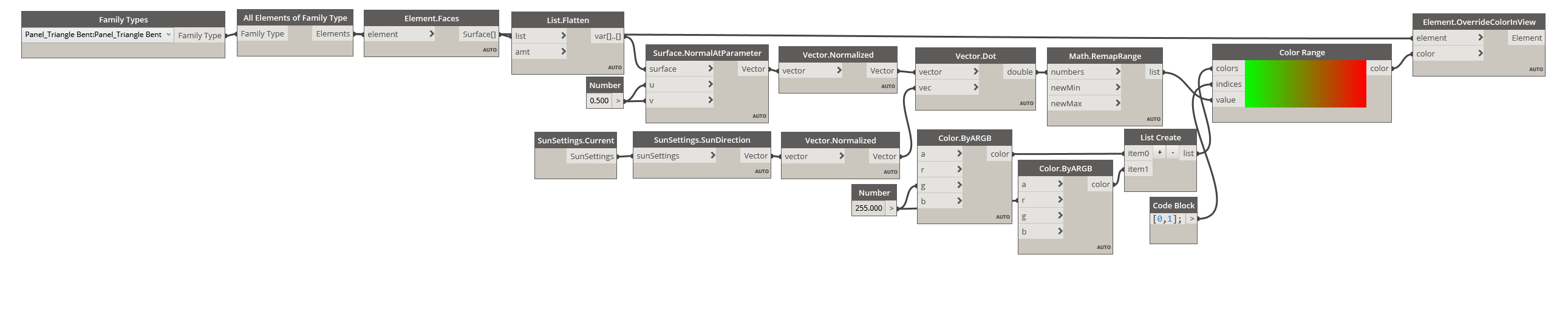

I have attached some images, the graph and the panel family. If anyone can tell me why this is not working correctly, I would greatly appreciate it.
SunAngle Effect_Short.dyn (35.7 KB)
