Family Instance By Point and level not working for level-2

[vipinkr]

Hi Every One,

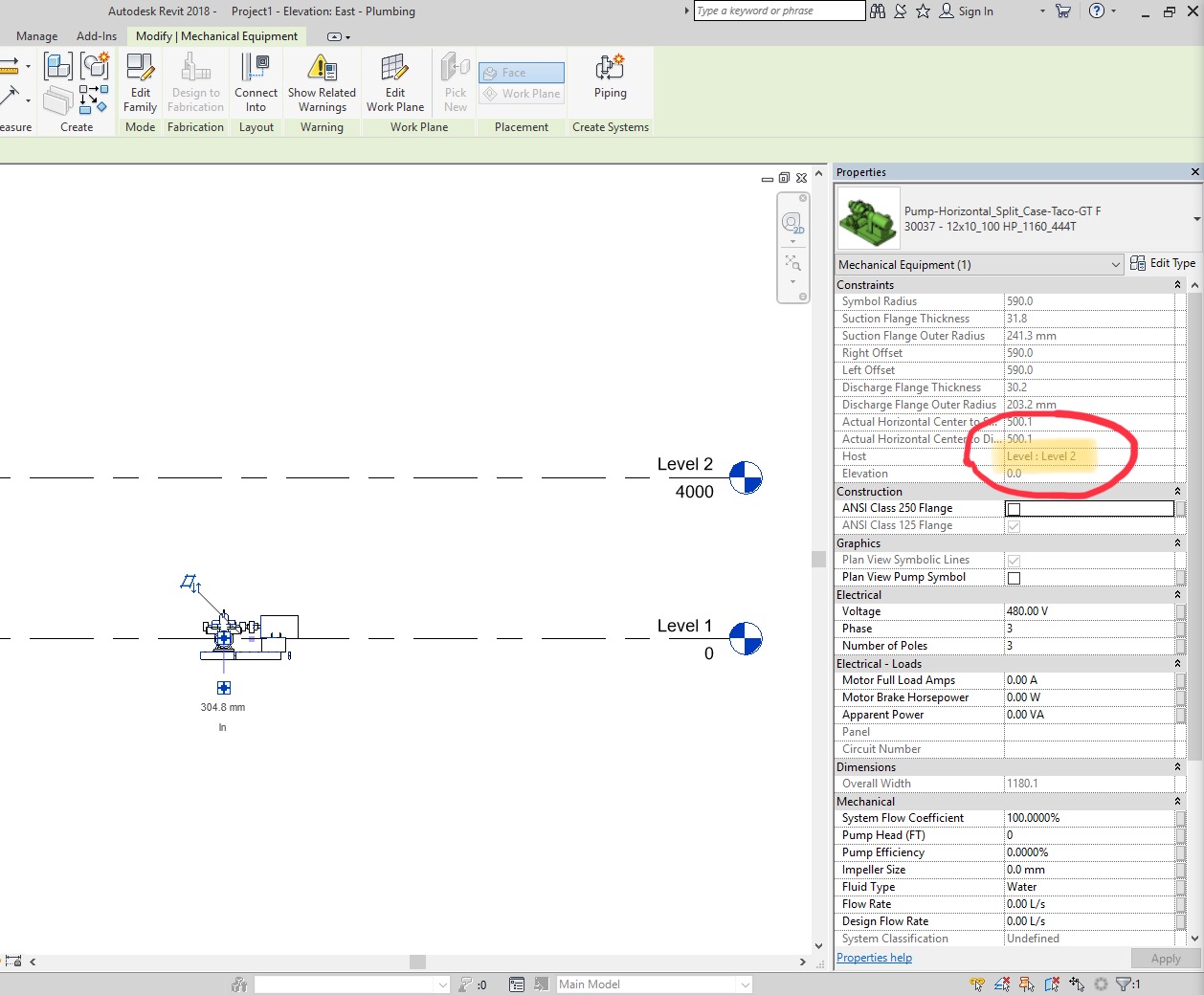

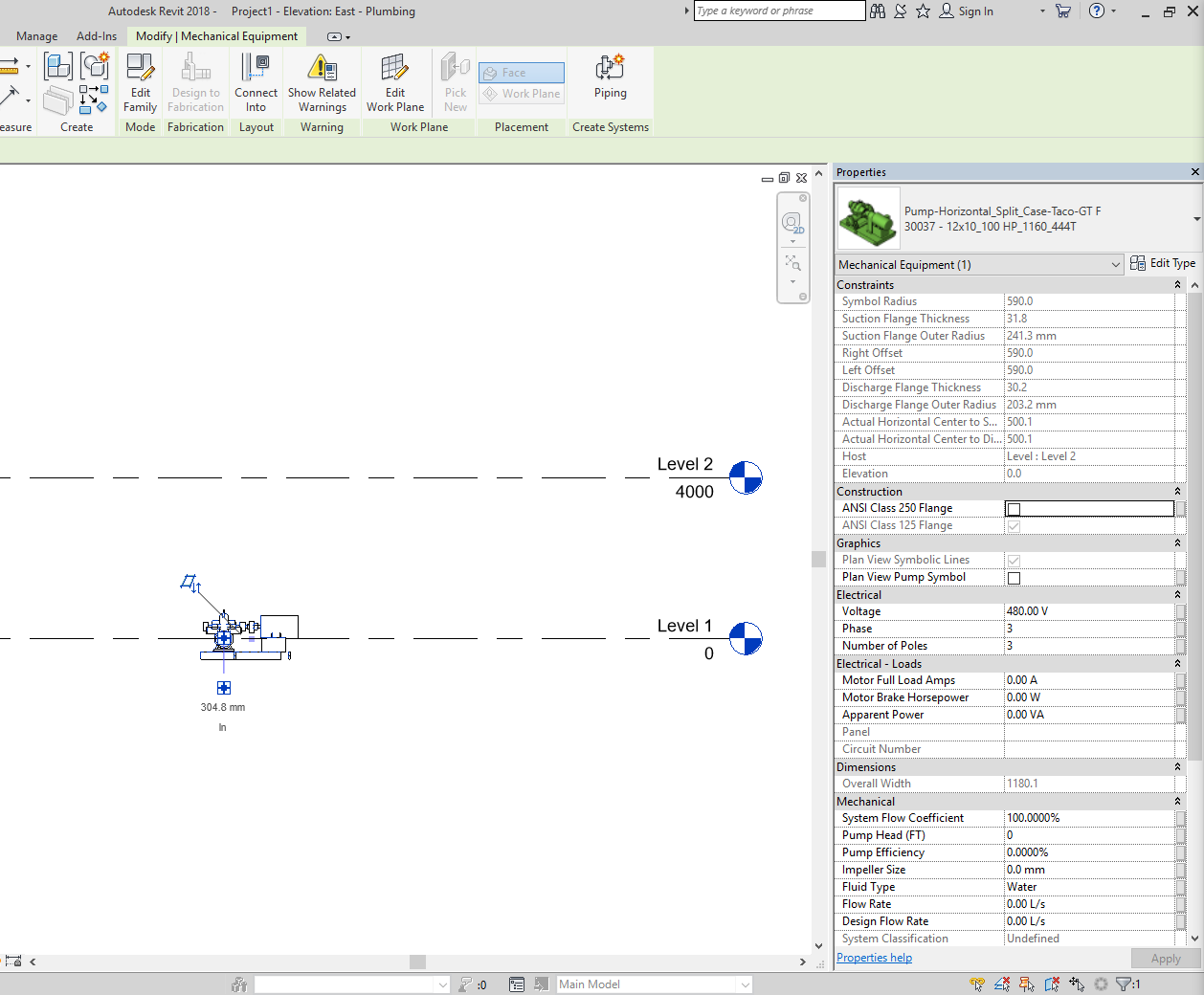

I am using family Instance by point and level. It is working fine for level-1, but it is not working in the case of level-2. I have tried Spring node as well but same error is appearing. Please find the attached screen snip.

Thanking you,
Vipin.

[jacob.small]

It’s working from what I can see:

Assuming you want it hosted on level two, try changing the Z value to the elevation of the level.

[vipinkr]

Thank you for your reply @jacob.small, as you suggest, I changed the Z-value (tried for many value) but nothing helping me.

My Project Idea:

1. Create all the relevant elevation level for pump house.
2. Use familyInstance to place the pump at the level.
3. After fixing/selecting the pump, all other fitting item will be selected similar the pump.




[vipinkr]

Please some one help.

[Andrew_Hannell]

works for me

depending on your family, you might need to explicitly set the offset from the hosting level
