Creating corridor from 3D Polyline

Civil 3D
1

Hello all,

I need to model 14 different corridors in different elevations. Please see the below picture.(A colored hatched area will be one corridor)

image2030×857 166 KB

I do have 3d polylines of those shapes. I will create those assemblies using composer.

Instead of creating alignments, profile, corridor over and over again, I want to create corridor from a 3d polyline using DYNAMO. (I already have 3D polylines and I want to use them as design profile)

I am a new DYNAMO user and tried Dynamo’s corridor sample for creating corridor from 3D Polyline.

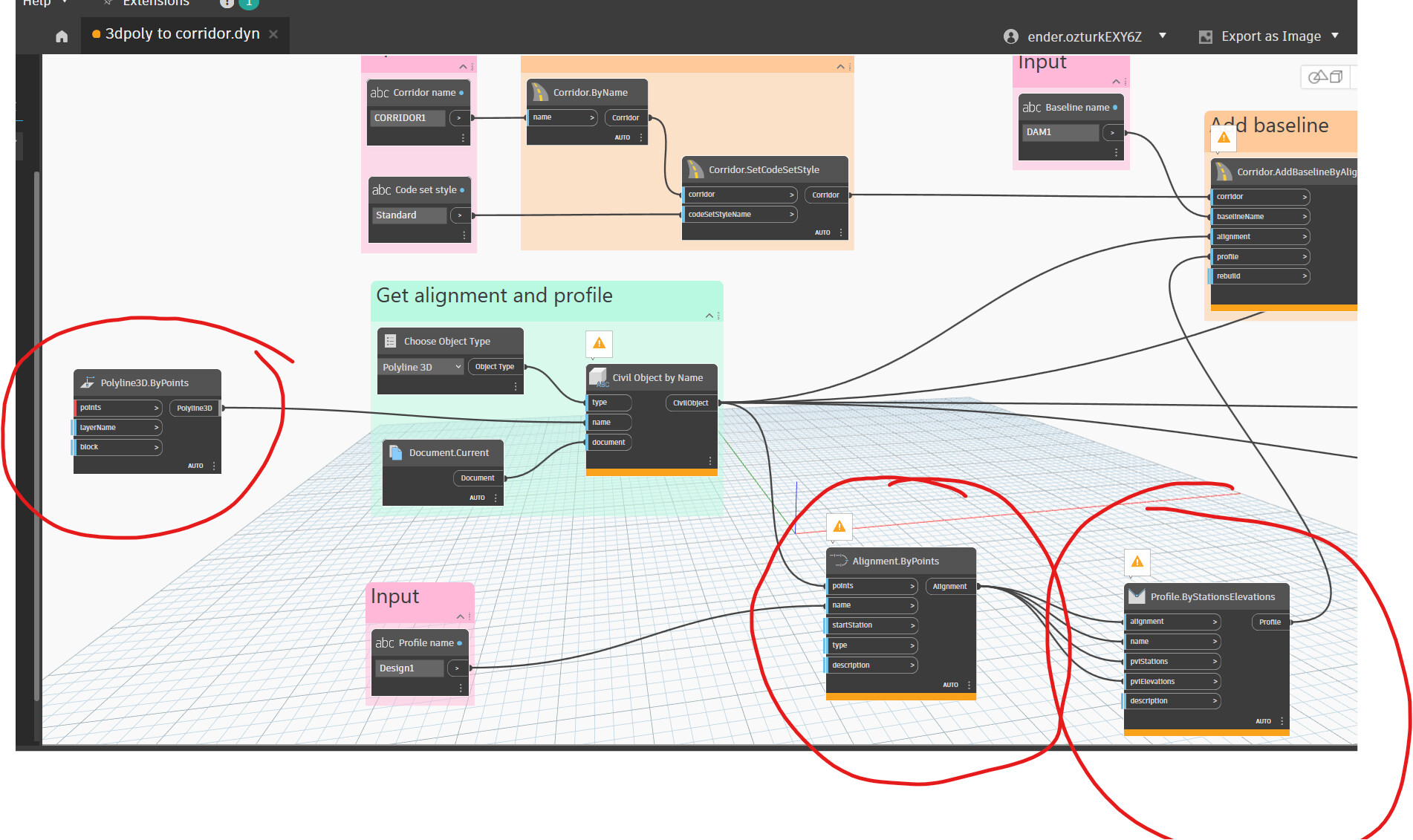

Please have a look below picture.

image1902×1131 452 KB

what is the hierarchy for this practice in Dynamo? what am I missing?

I need your suggestions.

Regards,

2

Hi @EnderDyn,

Have you spent some time in the Dynamo Primer?

In particular, the Civil 3D section will be very useful to understand:
