Change color fills for spaces from their parameter values

Revit
1

Hi guys I have a question about color fills.

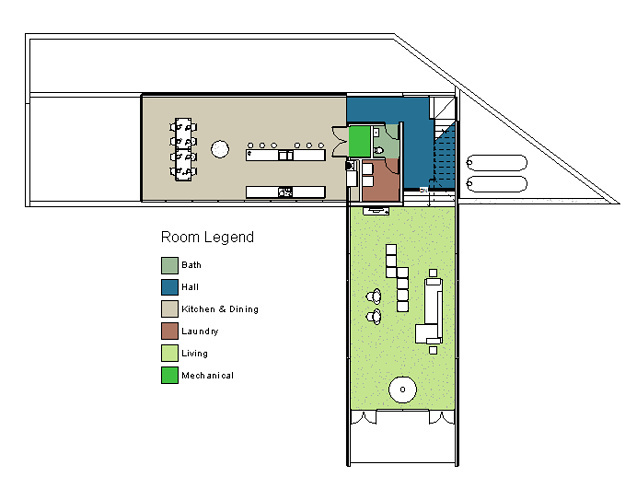

I was looking at this picture:

And I was wandering if it would be possible to change color fills with few logical conditions.
Let me explain better…

Let’s say that spaces have two shared parameters:
A and B

I would like to change color fills with those conditions:

  • If the parameter value “A” is <= 99% of the parameter “B” then the color of the Space has to be Red
  • If 100% of “B” <= “A” <= 150% of “B” then the color of the Space has to be green.
  • If the parameter value “A” is >150% of the parameter “B” then the color of the Space has to be Blue
  • if “B” is == 0 and “A” is ==0 then the color of the Space has to be white
  • if “B” is == 0 and “A” is not == 0 then the color of the Space has to be white

Do you think it’s possible?
Thanks indeed! :slight_smile:

2

I guess you could use some Element.GetParameterValueByName nodes (to read paramaters A and B) combined with some AND and NOT nodes to compile a new parameter (with Element.SetParameterByName) (e.g. strings called “red”, “green”…) to be used in the color scheme (in which you manually assign the correct color to the corresponding string).

EDIT:

I thought that using revit calculated parameters was quicker so I gave it a try but then I remembered that you cannot use those in Dynamo or in the color scheme, so unless you want to retype the calculated parameter by hand in another parameter here is what I thought:

I wanted to use the “excel-styled” IF statement:

if(B = 0, “White”, if(C < 1, “Red”, if(C > 1.5, “Blue”, if(C > 1, “Green”, “Unknown”))))

(not fully tested)

I then read how to convert this language to dynamo: http://dynamoprimer.com/en/04_The-Building-Blocks-of-Programs/4-3_logic.html
and found an example here: http://dynamobim.org/forums/topic/if-then-else-in-dynamo/

So i wrote a codeblock with:

(B==0?“White”:
(C<1?“Red”:
(C>1.5?“Blue”:
(C>1?“Green”:“Unkown”))));

Capture.png1874×498 49.9 KB

Cattura.PNG919×409 11.2 KB

Now you should have a parameter telling you what color that room should be, so you just have to open the view color scheme and assign the corrisponding color to each value.

3 Likes
4

Hi GregX,

Sorry for my belated answer but I was busy…
What you are showing on you answer is exactly what I was looking for. I will have a look and let you know if I still have any problems.

Thanks again for your help.
P.s. Are you Italian?

Ciao Ciao =)

1 Like
