Wall Outlines without doors / openings

[Jannis]

Hi everyone
I need the outlines of a some walls, but without the intersections of doors and openings.

Actually the curves which appear when hovering a wall would be perfect.

I tried some stuff to get the exterior / interior location curve, but I wasn´t successful

[Bjorn_Keulemans1]

Have you tried Element.GetLocation?

If that does not work, get the begin and end point and make the line yourself (assuming no arced walls)

[Vikram_Subbaiah]

@Jannis

I need the outlines of a some walls, but without the intersections of doors and openings.

In plan?

wallCurves.dyn (9.9 KB)

[Jannis]

Thanks @Vikram_Subbaiah and @Bjorn_Keulemans1
I am going with the location line now I thought there could be a possibility to get the “real” outline of every wall.

Kind regards

[anshad113]

Hi, @Vikram_Subbaiah how to retrieve the location curve as in the geometry, without door opening.

like this

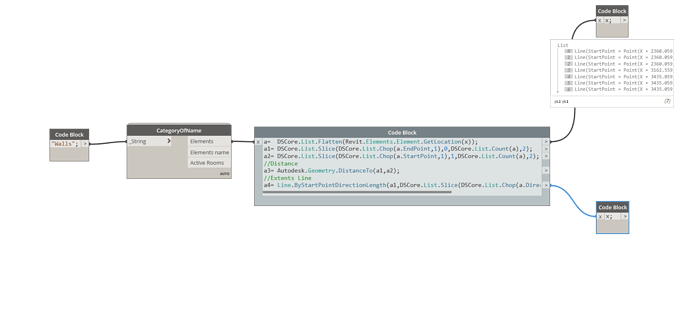

[Durmus_Cesur]

Hi,

You can use this path. If you really need it.

Durmus

[anshad113]

@Durmus_Cesur Thanks for your reply, Here I have tried it with nodes, but I am not sure my last inputs were correct as I didn’t get the design script line a4 completely. But the result I am getting is different with one you have added in the GIF. Can you please correct me. Capture1-Durmus|690x135

Also I am attaching my work around to achieve adding some sill concrete without the door openings.!
CreateSillByWallLocation.dyn (97.4 KB)

[Vikram_Subbaiah]

@anshad113

how to retrieve the location curve as in the geometry, without door opening

You could try intersecting the curve with the wall geometry.

[anshad113]

Thanks @Vikram_Subbaiah that’s an simple and great idea, it works. Thanks again for your support

[vanman]

how did you get this with the door opening?

[vanman]

whats element.locationcurve from?

[christian.stan]

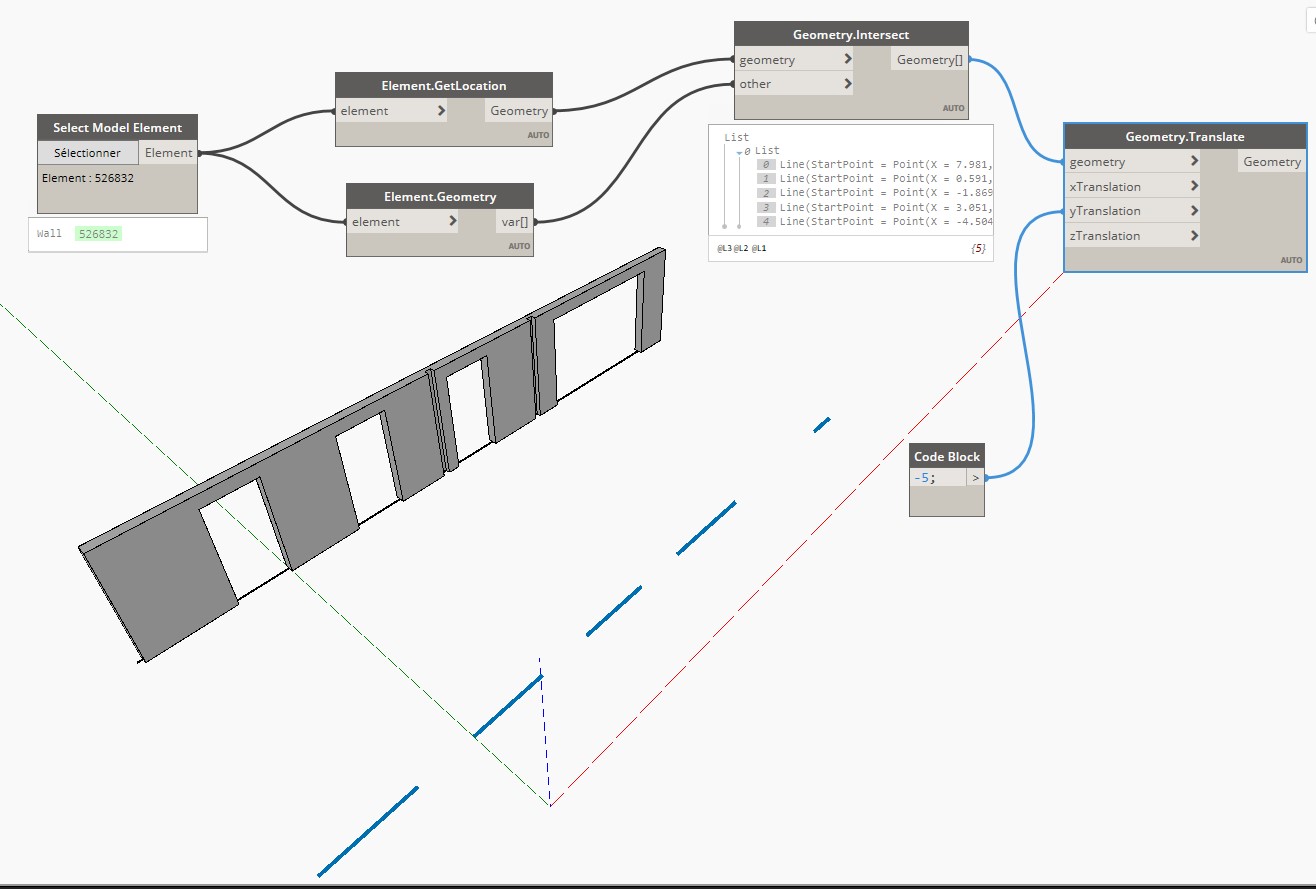

Hello,
Here’s a line of thought

Cordially
christian.stan

[vanman]

Works great. Wonder if there’s a quicker method though without element geometry
