Hi everyone. I’m working on a Revit 2024 project where I need to generate a single-line electrical diagram from a circuit schedule.

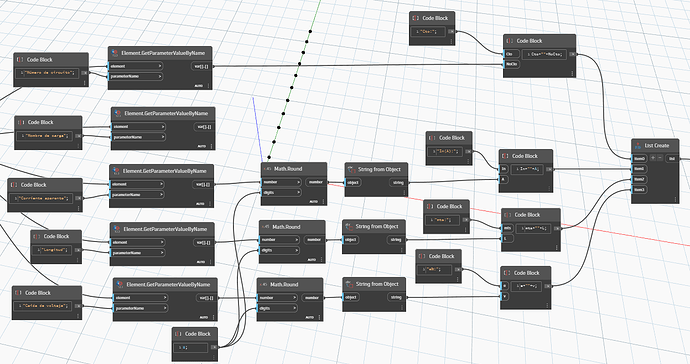

In Dynamo, I’ve successfully:
- Filtered circuits by panel
- Retrieved parameters like circuit number, length, voltage drop, current, etc.
- Grouped these values per circuit into sublists
- Created insertion points in a drafting view
The issue is that although everything is wired correctly into the TextNote.ByLocation node, the text notes do not appear in the view.
I’ve tried using List.Map with a code block: x => String.Join("\n", x) to combine the data per circuit, and I’ve also verified:
- That the view is a Drafting View
- That the TextNoteType is valid and readable
- That the point coordinates are within the visible area
Has anyone faced this issue? What else could be preventing the text notes from showing?
Thanks in advance for any help.
