Set sub-assembly parameters - Codes

Hi,

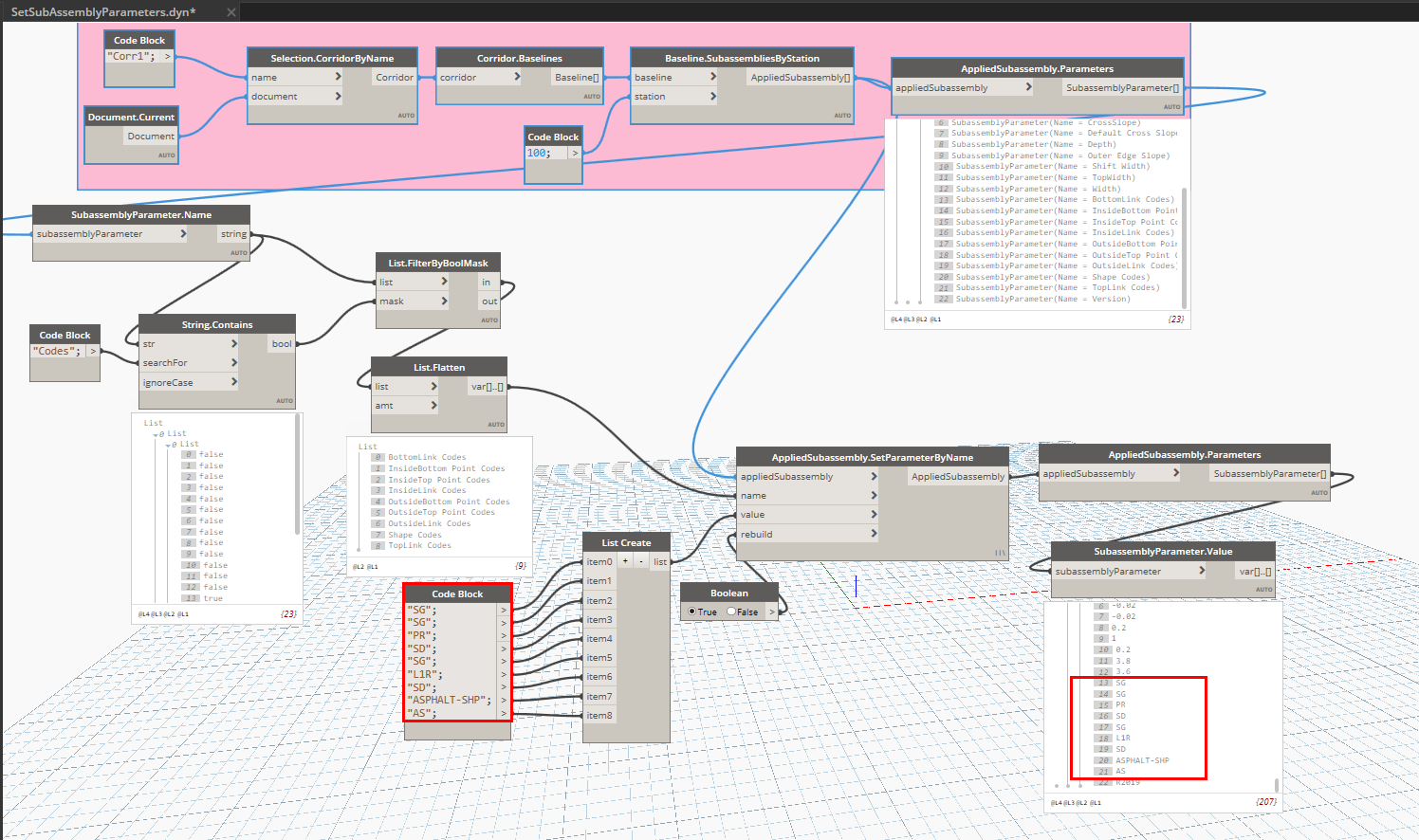

I created this graph to set codes on my assembly , it seems that works but i dont see any effect on my drawing,
any idea why is that?
thanks.

Hi @rinag ,

Thanks for sharing your workflow above. I tried to test it and it seems to be working. What I think happen is that your codes are being applied in the drawing but only at Station 100 as you specified. What I did is to replace the Code Block = 100 to Baseline.Station to get all station and update the lacing to be auto then separate the codes e.g. Point Code and Link Codes etc…

Please see attached animated gif and concept guide images below.

Guide1

Guide2

Cheers,
Jowenn.
