Set basepoint / surveypoint


#1

does anyone know the workflow for setting the project basepoint respectively the survey point?


#2

Hi Peter,

I’m not sure if this helps, but when you want to move the survey point, you need to modify the base point and vice versa:

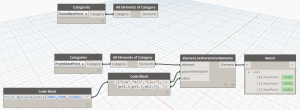

Capture2

What did you have in mind?


#3

Dimitar thanks again. that solves the issue.

peter


#4

Dimitar , I’m attempting to copy your nodes but I seem to be missing something.

Note my Watch node - only showing 1 value.

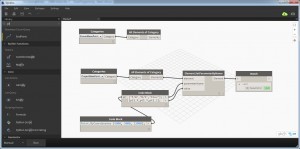

Dynamo









What am I missing?

Thanks


#5

Lacing!


#6

Lacing?


#7
Right click in set Parameter node and set lacing to longest.

Second Option create an extra set Parameter for each value


#8

That’s great. Thank you for the reply and explanation.



Much appreciated.
