Return coordinate angles of columns from Revit

Revit
1

HI,

I wanted to know if there is a way in Dynamo to find the coordinates of the corners of a column imported from Revit.

columns.PNG1287×818 35.6 KB

I have to export all the values in excel

thanks

2

Hi David,

Are you looking for Top Coordinates or bottom of the column?

4

thanks Kulkul,
bottom of the column, the supporting base, I need this information for setting on site

5

Below is an example workflow of 4 columns.

6

Sorry KulKul,

I can not see the image, I do not know why, can yuo send me an e mail or a private message on the forum??
turinadavide@gmail.com

thanks

7

ok, sorry, now i see all image… one minute

8

No Problem. Here is the dyn file Columns Botttom Coordinates.dyn (7.0 KB)

9

ok with a standard column It works very well!! thanks… now i have this problem/error with my type of column

warning: Unable to compute edge from curve : NO_CUR_BB – No current bulletin board exists.

what does it mean?

dynamo error.png1591×881 98.8 KB

thnks

10

Try this,

After “AllElementsOfCategory” use these nodes -> “Element.Geometry” -> “Geoemetry.Explode” -> Surface.FilterByOrientation. See if that helps.

11

Thanks Kul,

Your solution worked!!

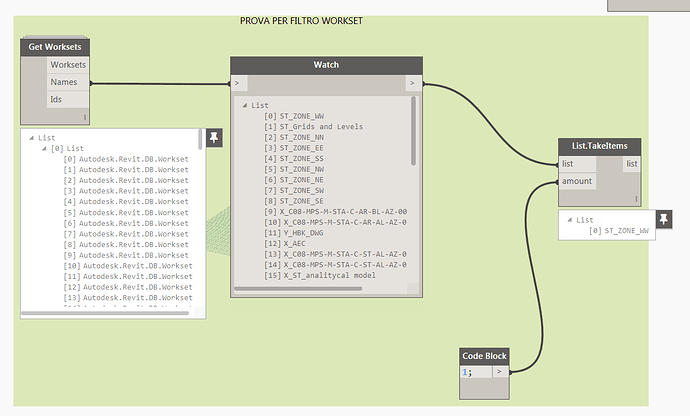

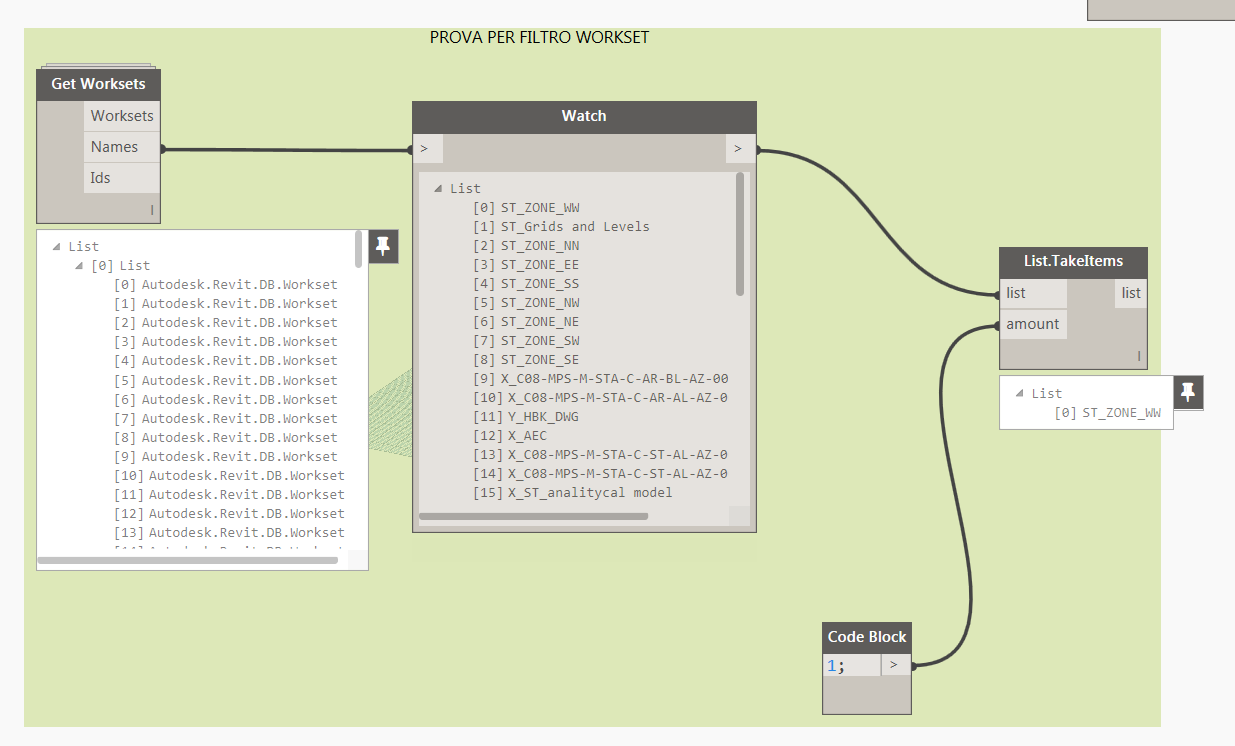

Now… i would like filter my ELEMENT by workset befor ELEMENT.FACES… is it possible? because I would be able to choose the work area on the same project.
is there any function?

workset.png1235×746 51 KB

thank you so much for your help

12

Hi David

In this case. You need to start new topic your question is off topic. Thanks :slight_smile:

13

Right! sorry

Thanks!!

14

You could try this too…
ColumnsBotttomVertices.dyn (7.2 KB)

20160831-4.png2456×450 75.9 KB

15

thanks Vikram,

with your solution i have a little problem

vilkin.png1146×576 32.1 KB

but it would definitely be a lighter solution

16

Introduce a Flatten node between Element.Geometry and Topology.Vertices

17

nothing, gives me the usual error

18

Seems like not all geometry in Element.Geometry list are Solids.
Try filtering out no solids and see it it works.
You could use RemoveIfNot node to do so
