Reading the coordinate of a PVI

Civil3D
,
1

Hi guys!!

I have a problem to solve. How do I read the position (coordinate) of this PVI?

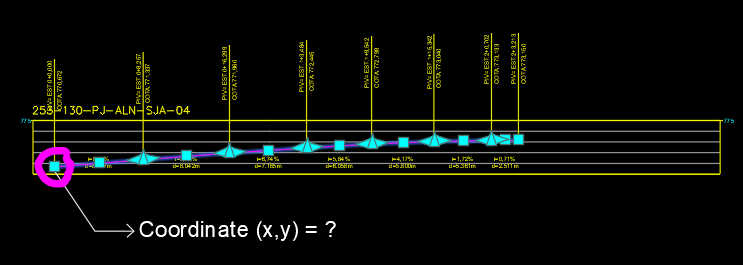

image743×265 16.9 KB

At some points I need to insert a small block of marking between the PVI’s that have a certain slope value. For that, I need to be able to read that point, that is, its coordinate.

I tried to use the GetParameters node but I was unsuccessful as I can’t get its location.

Any suggestion?

I thank the attention.

2

Hi @dffreitas,

You could accomplish that with a combination of Civil 3D Toolkit and Camber nodes.

PVpoint
PVpoint804×554 32 KB

2 Likes
3

@mzjensen , Is it possible to do this for multiple profiles?

I’m trying to get the point for multiple profile views but it gives this error


4

@mzjensen , Since you answered me, I have another question.

I have your Camber 1.0 package installed. After the package update, some nodes disappeared.

Is it possible for me to have both versions of packages to use in Dynamo?

5

looks like you’re using Iteris package for the profile view, you’ll perhaps need to use a different selection method and then use the Convert to Camber Object node in order to use the camber profileview.getpoints…

6

Sorry about that. It’s a known issue that others have also noticed and I’m working on a fix. Which version of Civil 3D are you using?

Unfortunately, no. It’s only possible to have a single version of a package at a time. Although you can download previous versions of a package on the package manager.


2 Likes
7

@mzjensen , I use the 2021 version.

8

@mzjensen , but thanks for the help.

9

If you’re able to upgrade to 2022.1, then everything should work.

2 Likes
