Placing family instances over multiple levels


#1

Hi

I’m trying to place a family instance by point and level over multiple levels. I have my points and I have my corresponding levels but I’m not sure how to wire up the the FamilyInstance.ByPointAndLevel node. Because I have two lists I don’t think the List.Map node will work. How can I achieve this?

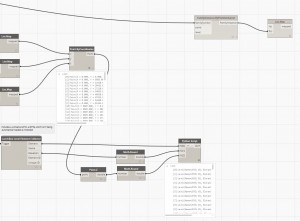

Multiple levels


#2

I think you’re looking for combine.


#3

can you post a screen shot pls of how to use it


#4

Not sure what your problem is Paul? It seems you have a list of points and a list of levels so if you wire these into the place family instance node they will take the first point and place it at the first level. I presume you want a different result though, so please explain.


#5

The problem is that the family (a column) is being placed on multiple levels, not just level 0. The data trees (to use Grasshopper terminology) are the same, a list with 100 points, and a list with 100 levels on which it is to be placed. But I can’t work out how to wire it up so that point an index X is placed on level an index X. The issue is that I’m trying to use Grasshopper logic to process data in Dynamo. I figure I need to use List.map but don’t understand how this works if I have two lists (points and levels) that feed into it.

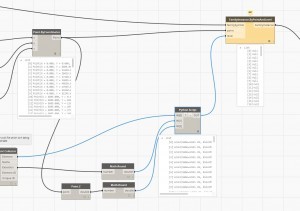

error1






#6

Hi Paul

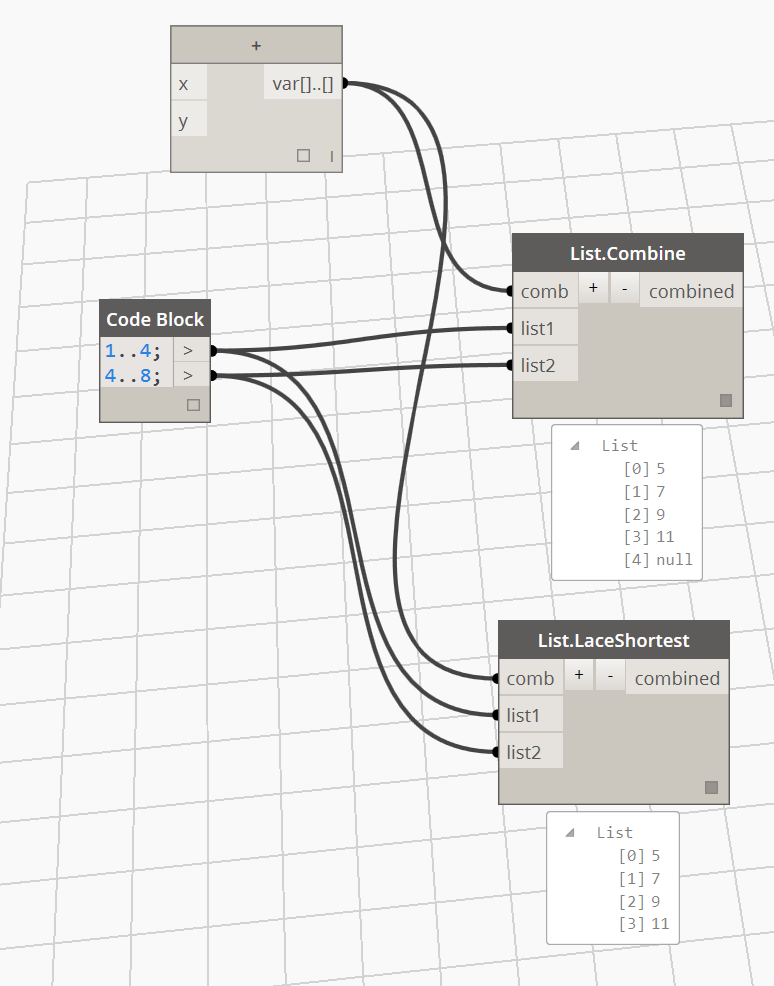

Like this, its really just map with a multiple inputs, the combinator, is the function we want to do with differing inputs, laced in some way.


#7

sorry my bad. When I reopened the file, the family symbol node reset itself. That’s why I was getting null values. Dumb user error
