Placing Bitmap Image in Dynamo environment

Geometry
1

Hi guys,

Do any of you have knowledge on how to place at BPM Image by point or projection to a specifik surface in the Dynamo environment?

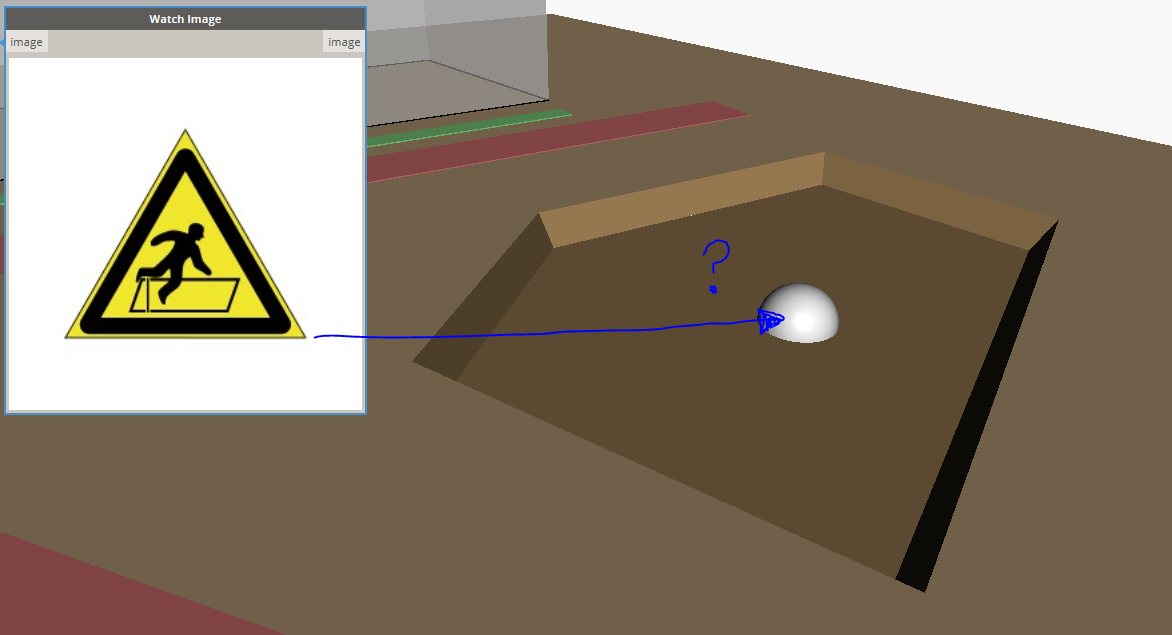

I’ve created a sphere to show the placement of the point…

PlaceImageByPoint
PlaceImageByPoint.PNG1172×635 67.1 KB

Thanks in advance!
Best regards :slight_smile:

3

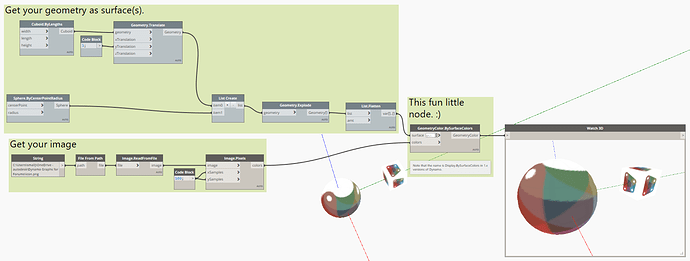

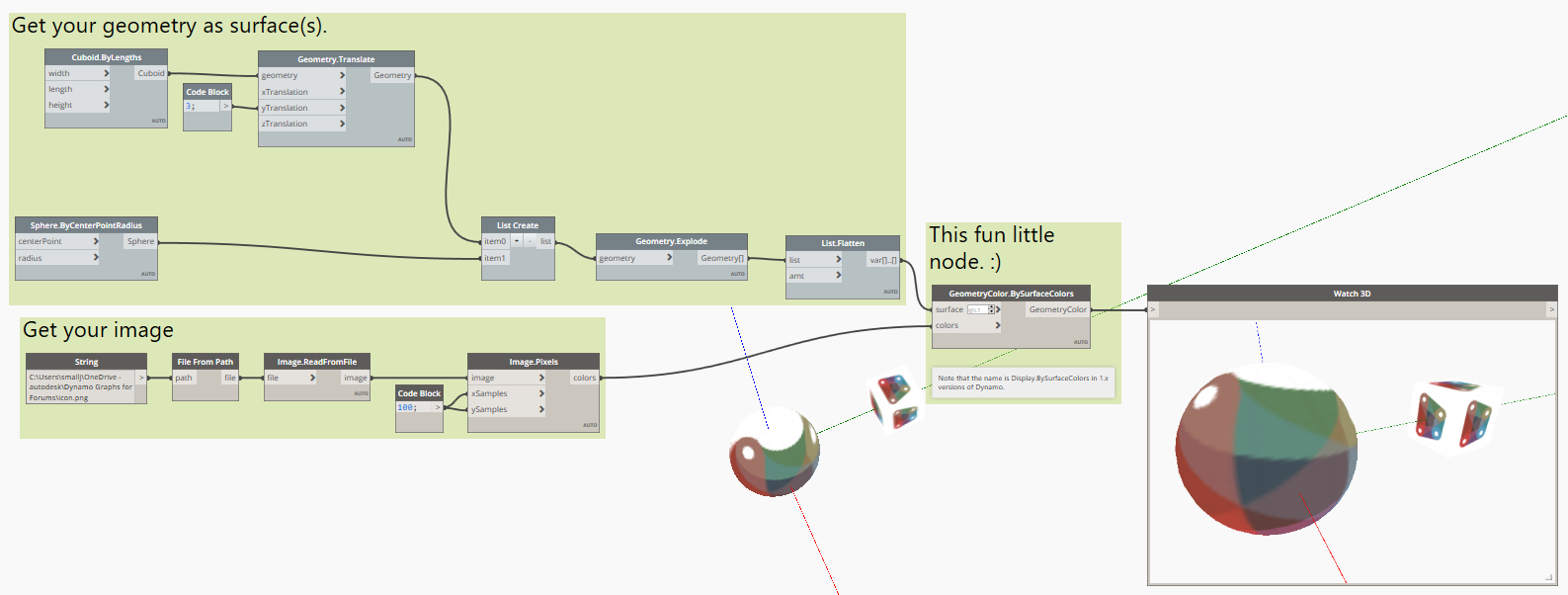

To do so inside the Dynamo environment, utilize the GeometryColor.BySurfaceColors (or Display.BySurfaceColors if you’re still on 1.x).

image1587×602 103 KB

A more detailed example can be found in the primer, at the end of the page here.

2 Likes
4

@jacob.small, thanks! just what i needed!
Do you also know how to center an image on a surface?

5

The image will be stretched from the 0,0 parameter to the 1,1 parameter.

Image sample resolution could help. A smaller image (decrease the sample size) won’t hit the corners (and a bigger one will expand past it). My first attempt at the graph above used a 72 pixel sample and I found it failed to fill stuff adequately so I jumped to 144.

6

Thanks!
