In a previous topic i learned how to retrieve the nested elements from family’s inside a linked model.

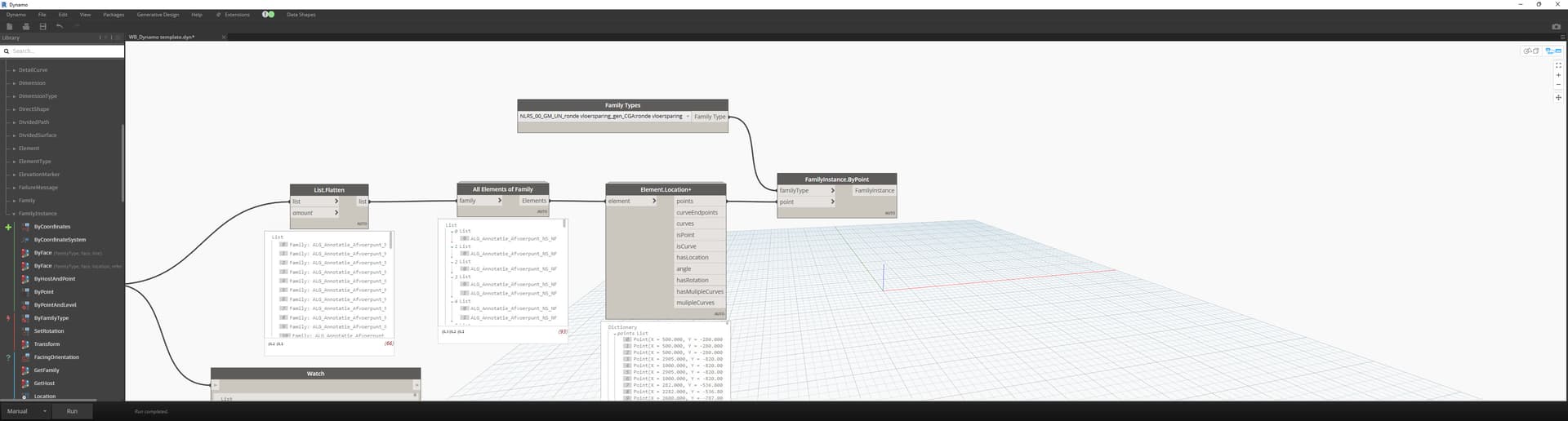

The next step is to place family’s based on the location, however it returns an error using the Element.Getlocation node.
import clr
clr.AddReference('RevitAPI')
from Autodesk.Revit.DB import *
clr.AddReference('RevitNodes')
import Revit
clr.ImportExtensions(Revit.GeometryConversion)
clr.ImportExtensions(Revit.Elements)
element = UnwrapElement(IN[0])
loc = element.Location
if isinstance(loc, LocationPoint):
rvtPoint = loc.Point
protoPoint = rvtPt.ToPoint()
OUT = loc
it works for one element. and the point is missing but you have a location
import clr
clr.AddReference('RevitAPI')
from Autodesk.Revit.DB import *
clr.AddReference('RevitNodes')
import Revit
clr.ImportExtensions(Revit.GeometryConversion)
clr.ImportExtensions(Revit.Elements)
element = UnwrapElement(IN[0])
loc = element.Location
locs = []
def locorign(x):
if isinstance(loc, LocationPoint):
rvtPoint = loc.Point
protoPoint = rvtPt.ToPoint()
for i in element:
locs.append(locorign(i))
OUT = locs, loc
Thats not working, but in this way it can run, maybe it is posible to convert the orgin to a point
@kleinnagelvoort most probably you are collecting families, you need to collect the instances of these families in order to get the instances location.
for i in element:
locs.append(locorign(i).ToProtoType())
import clr #.NET Laden
import sys #sys is de fundamentele Python bibliotheek
#de standaard IronPython-bibliotheken
#sys.path.append('C:\Program Files (x86)\IronPython 2.7\Lib') #Imports the
#standaard IronPython-bibliotheken, die alles dekken, van servers en
#encryptie tot reguliere expressies.
import System #The System namespace in de hoofdmap .NET
from System import Array #.NET class voor het verwerken van array-informatie
import System.Collections.Generic as MGen #Module kan nu benaderd worden met MGen.xxxx
#from System.Collections.Generic import * #Hiermee kunt u generieke afhandelen. Revit's API
#soms wil hard-getypte 'generieke' lijsten, genaamd ILists. Als je niet nodig hebt
#deze kunt u deze regel verwijderen.
clr.AddReference('ProtoGeometry') #Een Dynamo-bibliotheek voor zijn proxygeometrie
#classes. Je hebt dit alleen nodig als je interactie hebt met geometrie.
import Autodesk.DesignScript.Geometry as AGeo #Module kan worden opgeroepen a=met AGeo.xxxx
#from Autodesk.DesignScript.Geometry import * #Laadt alles in Dynamo's
#geometriebibliotheek
clr.AddReference("RevitNodes") #Dynamo's nodes voor Revit
import Revit #Laad in de Revit-namespaces in RevitNodes
clr.ImportExtensions(Revit.Elements) #Meer laden van Dynamo's Revit-bibliotheken
clr.ImportExtensions(Revit.GeometryConversion) #Meer laden van Dynamo's
#Revit-bibliotheken. Je hebt dit alleen nodig als je interactie hebt met geometrie.
clr.AddReference("RevitServices") #Dynamo's classes voor het omgaan met Revit-documenten
import RevitServices
from RevitServices.Persistence import DocumentManager #Een interne Dynamo class
#dat het document bijhoudt waaraan Dynamo momenteel is gekoppeld
from RevitServices.Transactions import TransactionManager #Een Dynamo class voor
#transacties openen en sluiten om de database van het Revit-document te wijzigen
clr.AddReference("RevitAPI") #Verwijzing naar Revit's API DLL's toevoegen
clr.AddReference("RevitAPIUI") #Verwijzing naar Revit's APIUI DLL's toevoegen
import Autodesk #Loads the Autodesk namespace
import Autodesk.Revit.DB as RDB #Loading Revit's API UI classes module kan nu worden aangeroepen met RDB.xxxx
#from Autodesk.Revit.DB import * #Loading Revit's API UI classes
import Autodesk.Revit.UI as RUI # Loading Revit's API UI classes als RUI.xxxx
#from Autodesk.Revit.UI import * #Loading Revit's API UI classes
doc = DocumentManager.Instance.CurrentDBDocument #Dit is het actieve Revit document
uiapp = DocumentManager.Instance.CurrentUIApplication #Een handle instellen voor het actieve Revit UI-document
app = uiapp.Application #Een handle instellen op de momenteel geopende instantie van de Revit-toepassing
uidoc = uiapp.ActiveUIDocument #Een handle instellen op de momenteel geopende instantie van de Revit UI-toepassing
# einde code omrekenen revit feet naar huidig ingestelde document units
# Hieronder kan je dan gaan programmeren
# Gebruik boiler template
#Start Transaction
#TransactionManager.Instance.EnsureInTransaction(doc)
#Eind Transactie
#TransactionManager.Instance.TransactionTaskDone()
rdb_xyz = RDB.XYZ(0,0,0)
point = RDB.Point.Create(rdb_xyz)
OUT = point.ToProtoType()
import clr #.NET Laden
import sys #sys is de fundamentele Python bibliotheek
#de standaard IronPython-bibliotheken
#sys.path.append('C:\Program Files (x86)\IronPython 2.7\Lib') #Imports the
#standaard IronPython-bibliotheken, die alles dekken, van servers en
#encryptie tot reguliere expressies.
import System #The System namespace in de hoofdmap .NET
from System import Array #.NET class voor het verwerken van array-informatie
import System.Collections.Generic as MGen #Module kan nu benaderd worden met MGen.xxxx
#from System.Collections.Generic import * #Hiermee kunt u generieke afhandelen. Revit's API
#soms wil hard-getypte 'generieke' lijsten, genaamd ILists. Als je niet nodig hebt
#deze kunt u deze regel verwijderen.
clr.AddReference('ProtoGeometry') #Een Dynamo-bibliotheek voor zijn proxygeometrie
#classes. Je hebt dit alleen nodig als je interactie hebt met geometrie.
import Autodesk.DesignScript.Geometry as AGeo #Module kan worden opgeroepen a=met AGeo.xxxx
#from Autodesk.DesignScript.Geometry import * #Laadt alles in Dynamo's
#geometriebibliotheek
clr.AddReference("RevitNodes") #Dynamo's nodes voor Revit
import Revit #Laad in de Revit-namespaces in RevitNodes
clr.ImportExtensions(Revit.Elements) #Meer laden van Dynamo's Revit-bibliotheken
clr.ImportExtensions(Revit.GeometryConversion) #Meer laden van Dynamo's
#Revit-bibliotheken. Je hebt dit alleen nodig als je interactie hebt met geometrie.
clr.AddReference("RevitServices") #Dynamo's classes voor het omgaan met Revit-documenten
import RevitServices
from RevitServices.Persistence import DocumentManager #Een interne Dynamo class
#dat het document bijhoudt waaraan Dynamo momenteel is gekoppeld
from RevitServices.Transactions import TransactionManager #Een Dynamo class voor
#transacties openen en sluiten om de database van het Revit-document te wijzigen
clr.AddReference("RevitAPI") #Verwijzing naar Revit's API DLL's toevoegen
clr.AddReference("RevitAPIUI") #Verwijzing naar Revit's APIUI DLL's toevoegen
import Autodesk #Loads the Autodesk namespace
import Autodesk.Revit.DB as RDB #Loading Revit's API UI classes module kan nu worden aangeroepen met RDB.xxxx
#from Autodesk.Revit.DB import * #Loading Revit's API UI classes
import Autodesk.Revit.UI as RUI # Loading Revit's API UI classes als RUI.xxxx
#from Autodesk.Revit.UI import * #Loading Revit's API UI classes
doc = DocumentManager.Instance.CurrentDBDocument #Dit is het actieve Revit document
uiapp = DocumentManager.Instance.CurrentUIApplication #Een handle instellen voor het actieve Revit UI-document
app = uiapp.Application #Een handle instellen op de momenteel geopende instantie van de Revit-toepassing
uidoc = uiapp.ActiveUIDocument #Een handle instellen op de momenteel import clr
element = UnwrapElement(IN[0])
loc = element.Location
locs = []
def locorign(x):
if isinstance(loc, LocationPoint):
rvtPoint = loc.Point
protoPoint = rvtPt.ToPoint()
for i in element:
locs.append(locorign(i).ToProtoType())
OUT = locs
element = UnwrapElement(IN[0])
loc = []
for x in element:
loc.append(x.Location)
locs = []
def locorign(x):
if isinstance(loc,LocationPoint):
rvtPoint = loc.Point
protoPoint = rvtPt.ToPoint()
for i in element:
locs.append(locorign(i).ToProtoType())
OUT = locs
The only issue iam having rn is that the placed family’s are not on the location they are suposed to be.
I tried by point and level & point but i get the same result, they get dropped arround the project base point.
