Lateral cover for bars

[Jorge_Villarroel]

Hi everyone,

1. I have the following script and I manage to put the bars at a determined cover relating the bar size, but I don’t know how to do it in the perpendicular faces of the element. Do you know how can I do it?

2. When I get the wall width, I only managed to get the width from the “wall types” node but if I put the “Model Element” (the selected element from the Revit model), it doesn’t get me the number/parameter I’m looking for. Why?

Thanks in advance!

PD: Try to do this on a single 20 or 30 thick wall.
A
Fierro_Punta_Muro.dyn (31.5 KB)

[Kulkul]

@Jorge_Villarroel

but I don’t know how to do it in the perpendicular faces of the element. Do you know how can I do it?

Hi Jorge,

Similar topic is discussed here Rebar showing up in Dynamo but not being placed in Revit - #2 by Kulkul

[Jorge_Villarroel]

Kulkul, Hi. I don´t see the similarity to my problem? What am I missing?

Thanks

[Kulkul]

Could you drop rvt file or post a link to the file uploaded on Drive, Dropbox, etc…

[Jorge_Villarroel]

Kulkul,

Here are the files:

https://drive.google.com/open?id=0B06GJ9aNr2cdd0RhS19peU5qYUU

Thanks!

[Kulkul]

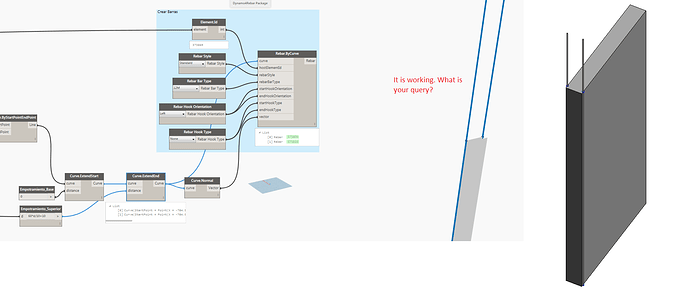

I tried your script it is working. Can you be more specific what is your query?

[Kulkul]

@Jorge_Villarroel

2. When I get the wall width, I only managed to get the width from the “wall types” node but if I put the “Model Element” (the selected element from the Revit model), it doesn’t get me the number/parameter I’m looking for. Why?

For you second question. It is because “Width” is a type parameter. If you need from model element you need to get element type as shown below.

[Jorge_Villarroel]

Thanks for your time.

My queries are:

1. How can I do the cover in the perpendicular face (no the selected)


2. When you plug the “Select Model Element” node into the “Element.GetParameterValueByName” node, can’t get the info I need (width).

Thanks!

[Kulkul]

@Jorge_Villarroel

When you plug the “Select Model Element” node into the “Element.GetParameterValueByName” node, can’t get the info I need (width).

“Width” is a type parameter. If you need from model element you need to get element type as shown below.

[Kulkul]

Are you trying to get top surface rebar?

[Jorge_Villarroel]

Thanks for the response to the query #2.

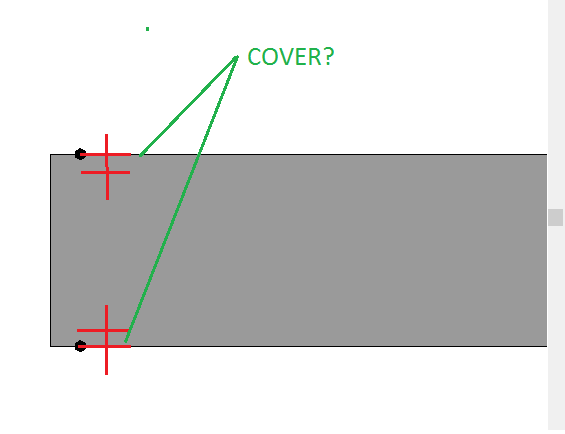

The issue with #1:

Thanks

[Kulkul]

Hi Jorge,

Are you looking for something like this:

And here is dyn file Fierro_Punta_Muro(Kulkul).dyn (35.2 KB)

[Jorge_Villarroel]

Yes! Thanks a lot! I’ve been trying a different -longer- way of the same thing. Thanks really!
