How to create hexagonal panels by lists of points?


#1

How to create hexagonal panels by lists of points?..


#2

Have you tried those “ByPoints” methods? E.g., Polygon.ByPoints(), PolyCurve.ByPoints()?


#3

Yu Ke,

Thanks for your time. I did, but i don´t know how to manage lists…

Cheers.


#4

Hello René Castillo Picazo,

If possible can you post a picture of your graph and explain what you want to achieve.

Thanks,

Ritesh




#5

Ritesh,

Thanks for your response.

I need to create a regular hexagon panel, but the surface pattern in Revit creates an irregular hexagon.

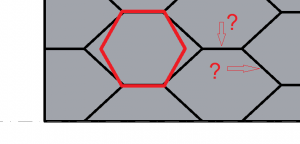

Hexagonal Panels

I created an hexagon pattern like this:

… but the component doesn’t fit in the borders (surface)

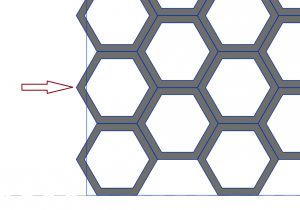

Hexagonal Panels Surface

In Dynamo, i created a simple surface with a UV Grid, but i don´t know how to manage lists to connect each 6 points to create the panel. I have not the definition right now, but I’ll upload the file the next time.</span>

Thanks.

René,
