Element Geometry - Round to Rectangular Duct fitting

[vishalghuge2500]

how we can generate such element’s geometry?
I’m trying to get surface area of duct fittings

sample- duct fitting.rvt (6.6 MB)

[jacob.small]

Can you post an RVT model with the geometry in question? There is likely a work-around but which one to go with is a bit difficult to advise on without first trying a few things.

[pyXam]

What happens if Try element.solids?

[vishalghuge2500]

@jacob.small sample uploaded.

@pyXam

[Draxl_Andreas]

@vishalghuge2500 ,

a workaround is boundingbox

[sovitek]

Try something here could probably work

[sovitek]

or an alternative way could be rebuild

[tve-69]

which packages have this node ? Can you show me ?

[sovitek]

here is some options

[tve-69]

Sorry, i mean this node

[sovitek]

århh yeah ;)…synthezise toolkit

[joby7MFSX]

apologies for resurrecting an old comment, but I tried to redraw this fitting using your method and had a few questions.

1. How do I see a 3d version of the new loft?

2. How do i use that new loft to calculate the surface area?
   Thanks

[sovitek]

@joby7MFSX

How do I see a 3d version of the new loft?

you will see the geometry in dynamo canvas ,probably you need zoom to fit…maybe

@joby7MFSX

How do i use that new loft to calculate the surface area?
Thanks

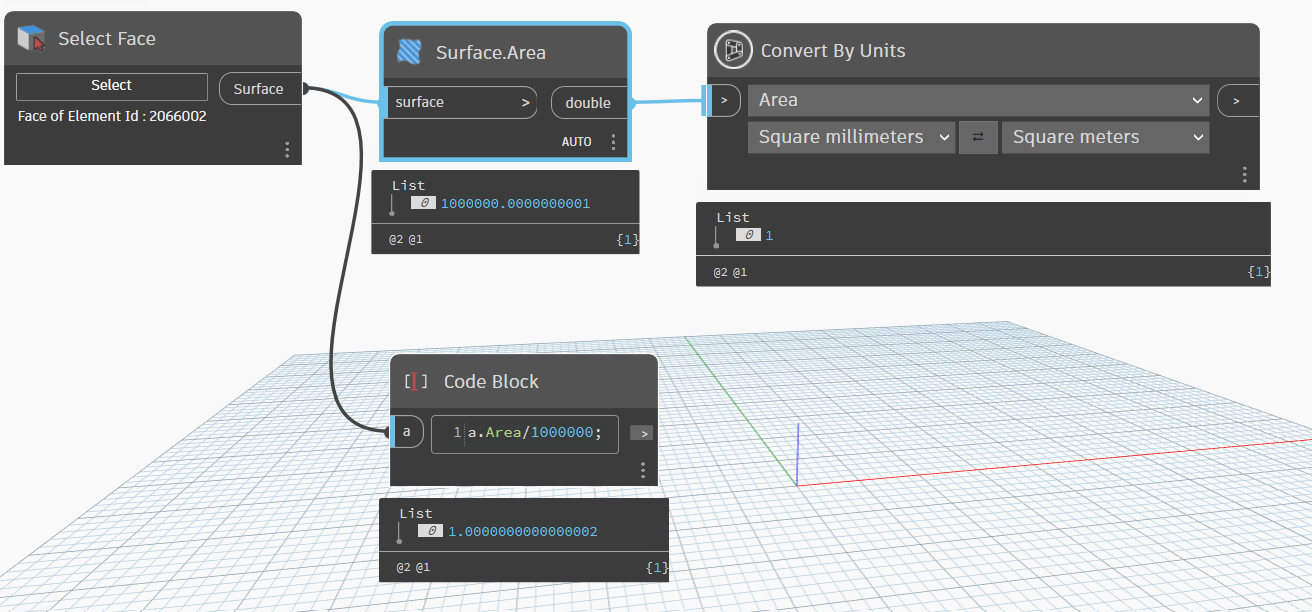

we have a surface area node OOTB for that or just in a codeblock
