DWG Import in Dynamo Studio 2019

1

Hi I followed the instrutions of importing geomerty in Dynamo studio i have a dwg made which dose not want to get imported what am I doing wrong?

import%20dwg

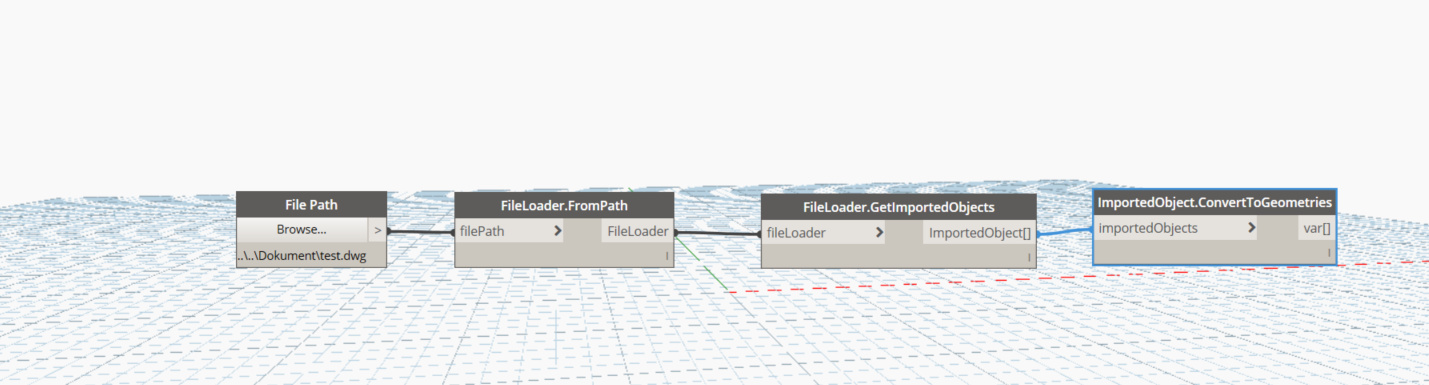

import dwg.jpg1429×385 162 KB
test.dwg (42.6 KB)

import%20dwg
import dwg.jpg1429×385 110 KB

http://primer.dynamobim.org/en/05_Geometry-for-Computational-Design/5-8_importing.html

2

Hi @johannaroenner

Could show us previews for all nodes.

3

Did you mean Dynamo Studio 2017?

4

Hi I changed to Dynamo studio 2017 and autodesk Autocad 2017 and it works. I was not the Dynamo 2019 that was the problem cause it could read the old Autocad files but it could not handle autocadfiles dwg. from autocad 2019

5

This is because the dog standard changed in 2019. You’ll find you also have issues importing a 2019 dwg into a 2017 Revit version unless you save down the file format.

6

How do you get the fileloader nodes?

7

They only existed in Dynamo studio, which was discontinued about 2 years ago.

Best to utilize Dynamo for Civil 3D instead.

8

Damn… what is Dynamo for Civil 3d?

9

Hallo
Yes it was long time ago in Dynamo Studio.
civil 3D Download Civil 3D 2023 | Civil 3D Free Trial | Autodesk
It is usally enough to use Dynamo i Revit. To get geomerty by catagory
Skjermbilde 2023-01-30 143213
