Hello everybody,
I’m wondering if I can extract a line (horizontal) ? from these parameters concerning windows.
- Windows frame mullion cut
- Wind glass cut
- Glass project
- Hidden lines
- Oppening cut
- Wind opening projection
- Windows still head cut
- window still head projection
- window tags
I need this line to create a beam on every window of my project (for a structural analysis after export), I made a Dynamo program which does this but I have a problem to find the direction of the beam.

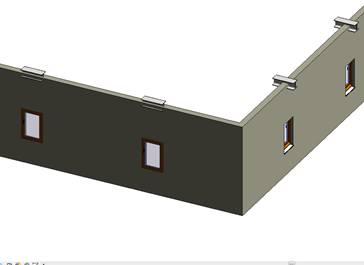

The problem is shown on the photo.
Thaaank you for advance
