Create and centre door tag annotations

Revit
, , , ,
1

Hi guys,

I am trying to write a script that is supposed to tag all doors in a project based on a selected family type and then center it in the middle of the door leaf.

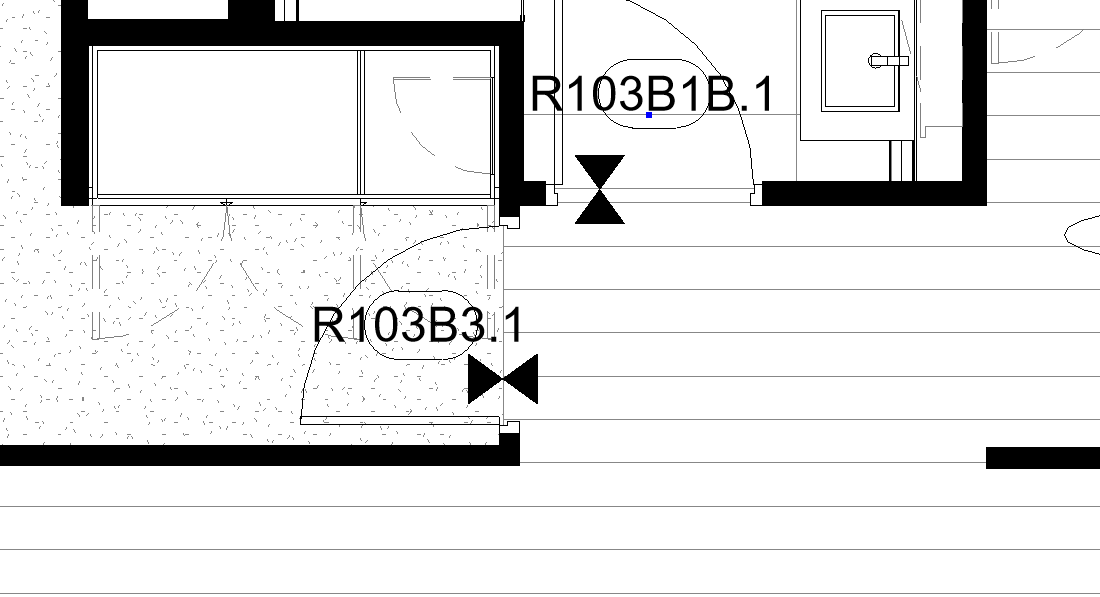

image.png1100×597 11.9 KB

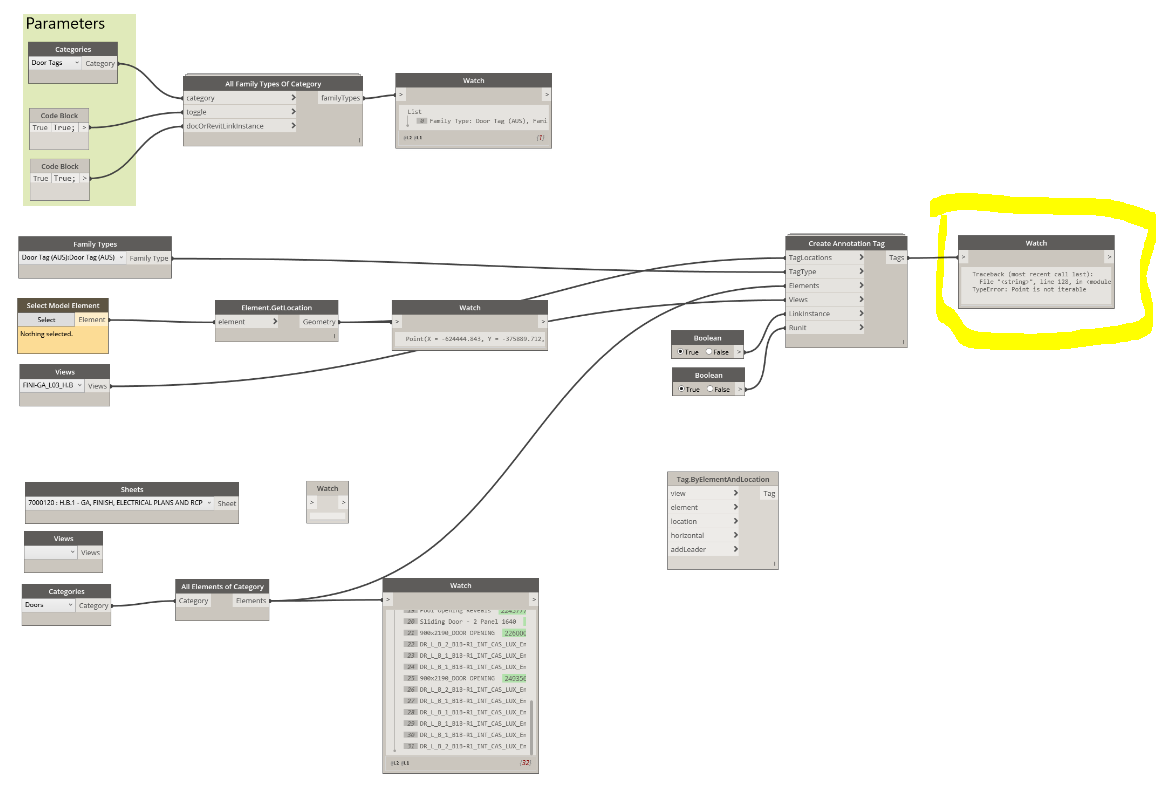

I have started a script that will take the location of the annotation symbol highlighted above. I have used the Archi-lab package (create annotation node) however it is not working. Does anyone know why?

image.png1156×801 75.1 KB

Also, I am not sure how to go above centering the annotation symbol once it is placed. Does anyone have any ideas about doing this?

PTW_DoorTags.dyn (13.2 KB)

2

Hi @dobbst01,

You need as many points as elements.
Connect Element.GetLocation to AllelementsOfCategory node.
