Compare point cloud to autocad solid

Can dynamo compare point cloud data to a autocad solid
I am a civil 3D user, and I am familiar with building a surface and comparing with a design surface, this is very effective for topographical instances, but civil 3D won’t work on vertical surfaces. I need to do asbuilt surveys of structures, I have point cloud data of complex geometric structures with vaulted ceilings, and was wonderin if
Dynamo is ableto do this

It could be possible in Dynamo, but probably not easy

I’d take a look at Cloudcompare- it will compare a mesh to a pointcloud & generate a heat map of the variation between the two

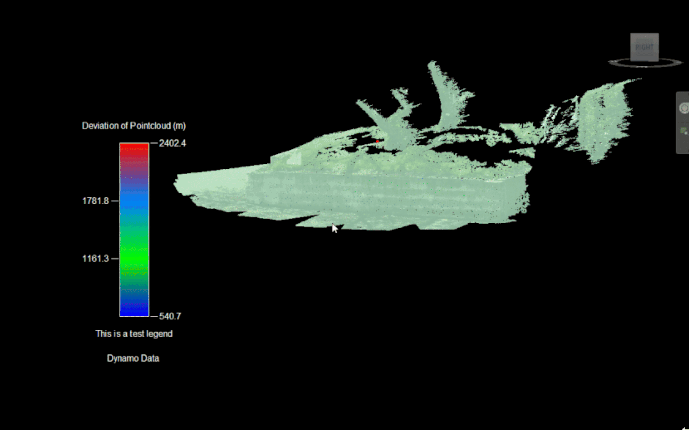

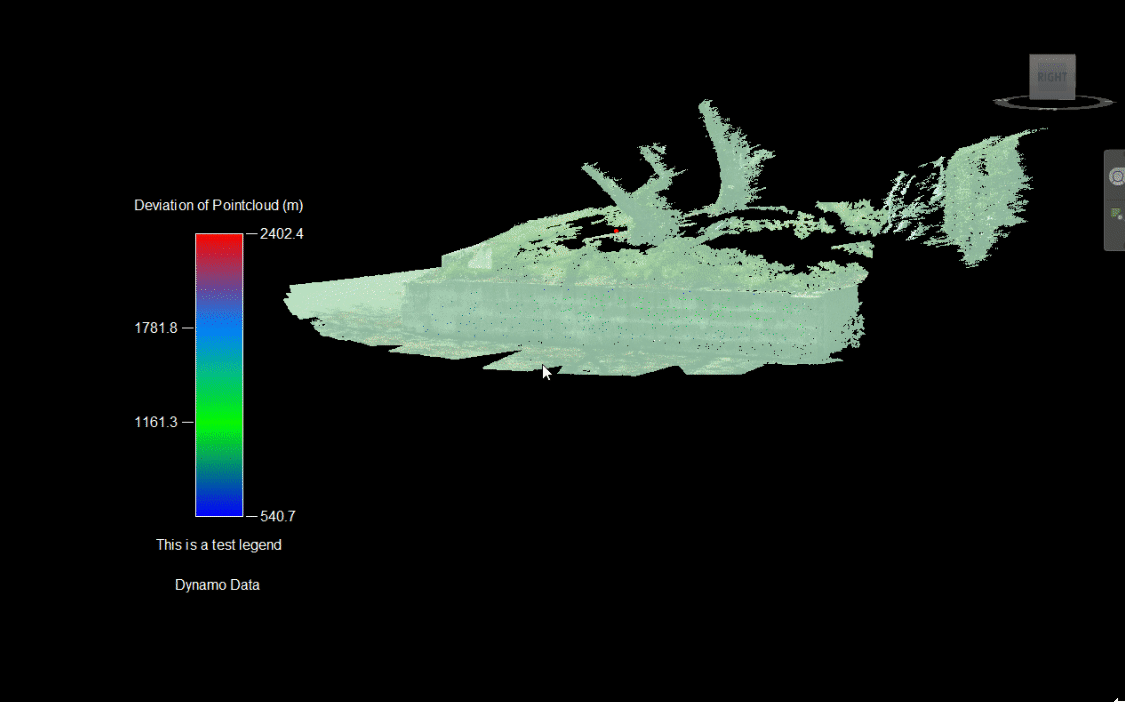

Something along the lines of a Deviation of Pointcloud Analysis Display Override?

1 Like

@Andrew_Hannell Cloudcompare, great software, great team :+1:
