Civil 3d corridor to revit enviromnet

Civil3D
21

Check the last example here https://github.com/Autodesk/civilconnection/tree/master/Examples/Dynamo/2.0

22

the major problem i am dealing with is the Geometry scaling warning in Revit, even if i set the shared coordinates with apposite tool in civil 3d. i guess due to that i can’t correctly visualize the result mass family in revit.

23

study this first https://github.com/Autodesk/civilconnection/tree/master/Doc

24

again, thank you for the precious help

25

Have a read here, it applies also to CivilConnection PolylineExtensions.ObjectByGeometry

26

I guess i got it! Thank you for your help!

2

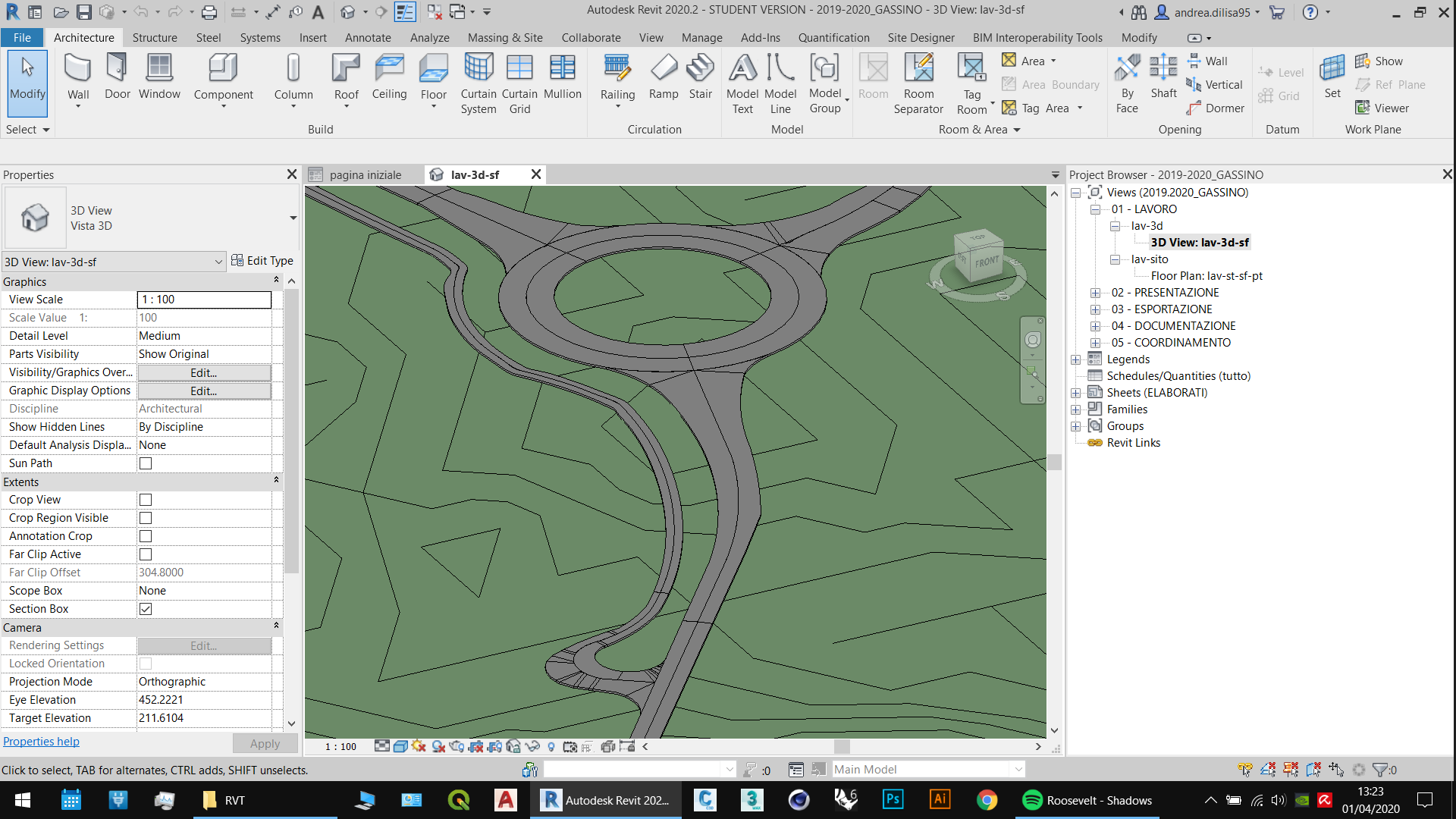

21920×1080 283 KB

2 Likes
27

HI, I have one question about this project, how had you did, so that all baselines of the roundabout are displayed from Civil 3d to Dynamo?

28

CivilConnection has specific tools to display and obtain data from Civil 3D corridors. In the corridor section you should use GetBaselines and then Geometry in the Baseline tab.

29

Ok, thank you very much
