Beam along curves form imported DWG

Revit
1

Hi all,
I have a dwg file with a ring made of many lines( straight but not on a plane).
I would like to use these lines to generate beams.
Roof-Box-ring-beam Wireframe.dwg (1.7 MB)

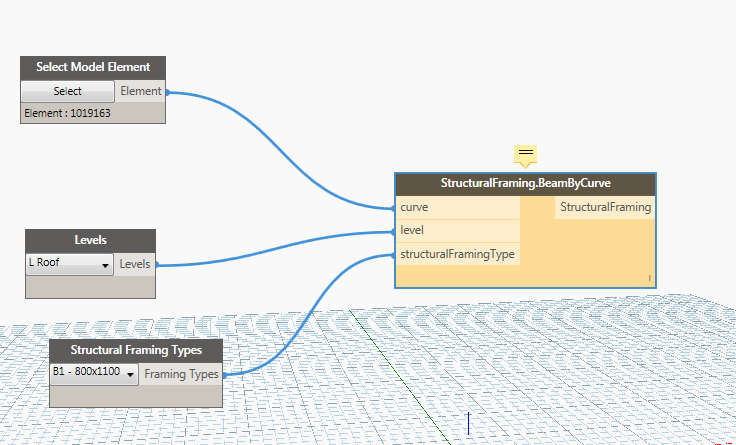

Pasted image883Ă—547 1.92 KB

Pasted image736Ă—445 28.7 KB

Any help?

thanks in advance

2

Hi @simoneavellini
try putting an “element.geometry” node between the "select model element " and “structuralframing.beambycurve” nodes

1 Like
3

HI Mostafa,
thanks for the prompt reply, tried but got an other error.

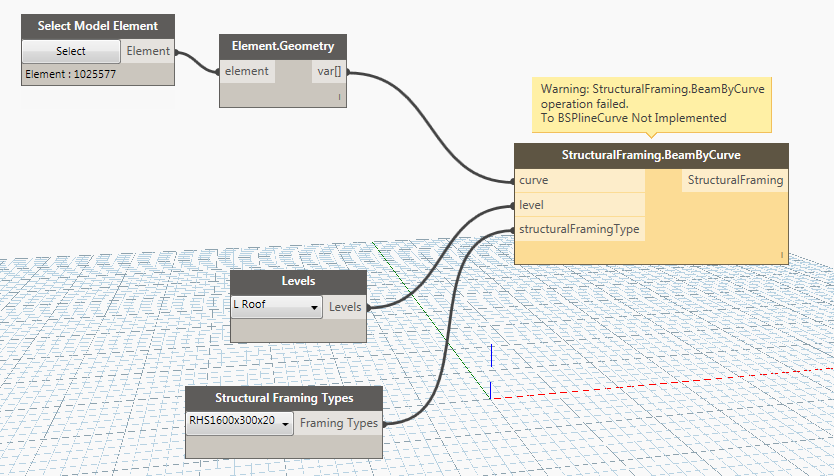

Pasted image834Ă—476 39.6 KB

Anyideas?

4

@simoneavellini
Try adding a “ToNurbsCurve” node after “Element.Geometry”

1 Like
5

Not yet

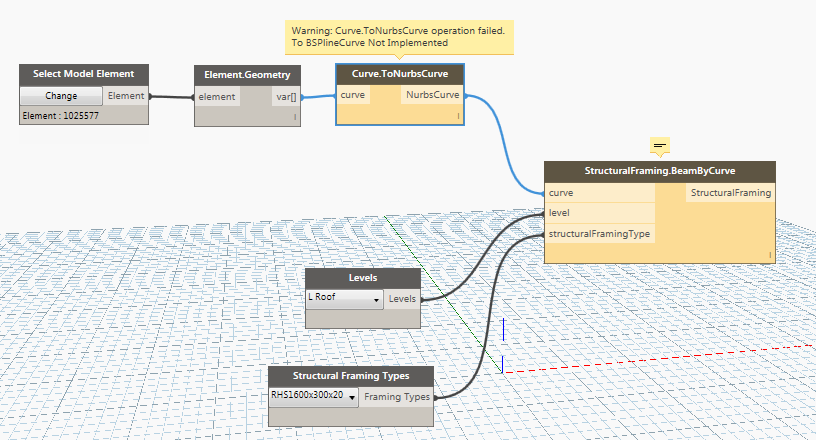

816Ă—440 36.7 KB

6

Pasted image1350Ă—723 82.4 KB

I should have asked you to show the output of element geometry earlier… :slight_smile:

1 Like
7

It worked!
but now I got these bad guys here…

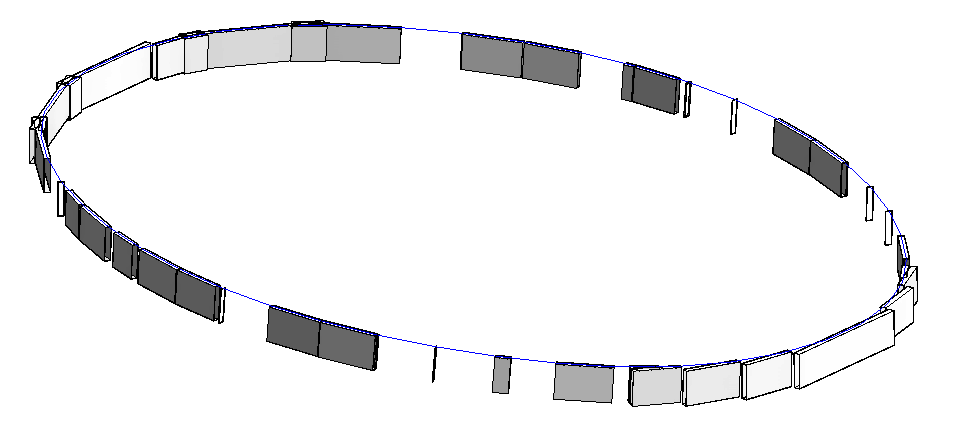

Pasted image957Ă—448 8.59 KB

:unamused:

8

I’m pretty sure that’s an issue with the beam family …

1 Like
9

it appears the beams are all joining. You can unjoin all beam elements with StructuralFraming.DisallowJoins from the package manager.

1 Like
10

I tried with standard RHS/UB sections and it gives this error. It works whit RC sections…I dont know why actually

I also tried the StructuralFraming.DisallowJoins but with no luck…Thanks Tom

11

Interesting. When I try it with an American W shape it works fine.

1 Like
12

Looking at this a bit closer it looks like it Revit is looking at the straight segments and trying to extend either the extend the Start or End Extension value of the beam. I am unsure if Dynamo could fix this, but probably could. It wouldn’t take that long to fix it in 3D . . . .

1 Like
