Automating Wall Tiles


#1

After going through few tutorials on automating wall finishes/tiles I thought of trying it myself, but for multiple levels. Everything is fine till i am doing it for a single level but things get complex once I try to implement it on multiple levels. I will try to explain the problem here:

  1. I have 33 rooms and thus 33 roomcurves, each of these rooms give me the level they are in and thus 33 Level data(Note: I just have 5 unique levels, multiple rooms on same level).
  2. Now, when I run the nodes(jpg attached) it gives me ONLY 33 walls. Mayble it’s lacing or something. But what I want is that with just one run all the wall tiles on all the levels to be done.



Can some genius help me out?

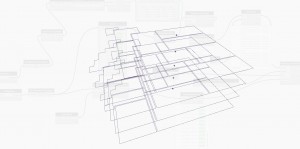

Nodes_WallFinish RoomSchedule_WallFinish WallCurves_WallFinish Walls_WallFinish


#2

Hi Abhijeet,

Connect your list.flatten node with “Curve.ApproximateWithArcAndLineSegments” node and also make sure you set your lacing to cross product for “Wall.ByCurveAndHeight”.See below example. Good Luck!

wall


#3

Thanks Kulkul,

It solved my problem. But cross product didn’t work for me, had to use longest because even my wall input was a list.

One more question, right now these walls are created using centre line, can I create them using finish faces?



Again, thanks a lot :slight_smile:
