Topic: Areas of polycurves Maria_Barahona. http://dynamobim.com/forums/topic/areas-of-polycurves/ i try find area polycurves as in a picture. but PolyCurve.ByJoin is null. [image]

[image] alibabon: There may be way to collect Curve in the Plane or find intersecting between Curve and face element can found list 4 curve? ? [image]

i tries way find curve in 1 ref plane, i wanna find node find ref plane

I’m guessing you need to use Group Curves (from Archi-lab) to group your selections by joinable curves first. Then you can join them.

hi Nick_Boyts i done, [image] then i use node PolyCurve.byJoinedCurve but error, beacause i wanna find area polyCurver as in picture

It looks like you’re short a curve in each group. You have 7 curves but you need 8 (4 for one rectangle and 4 for the other.)

[image] Nick_Boyts: It looks like you’re short a curve in each group. You have 7 curves but you need 8 (4 for one rectangle and 4 for the other.) I understand that, and now I’m looking for ways to get that result, you can help me. Thanks

@alibabon You could also join the missing curve by using Springs.LineLoopMerge. [image]

hello Kulkul. I got 7 Curve and i wanna join it 2 surface as the picture. There is file: [image] check intersect colunm and floor.dyn MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhe…

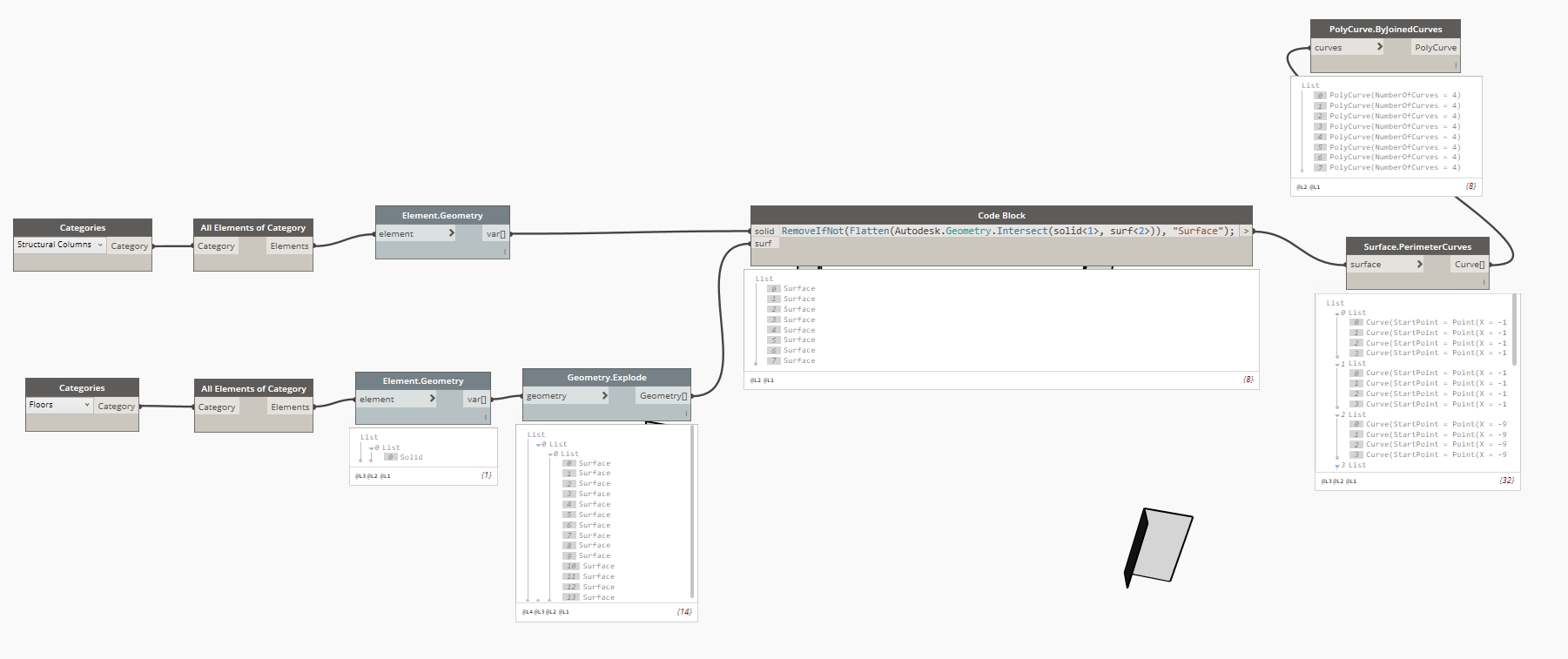

@alibabon Here is how you get the areas. [image] [image]

Thanks Kulkul. Let me ask if there is a way to collect four contiguous Curve together, because the above is only true for one case.

I believe that’s what i showed you above how to create 4 contiguous curve together. If the Curve Intersect each other then remove the intersecting curves and close the curve.

Areas of polycurves (to be continute)

Kulkul July 16, 2017, 4:39pm 13
