Area Loads by Level


#1

I am trying to import area loads into Dynamo and create structural floors from them. The result would be a loading plan from Area loads. I can create the floors, but the problem is with Area loads themselves. I cant seem to import them by level as they don’t seem to have level parameter shown in their properties.


#2

Hi Shaun,

When you import AreaLoads with the Element.Geometry node, the resultant geometry lines already have the correct Z elevation. Wouldn’t that be enough?

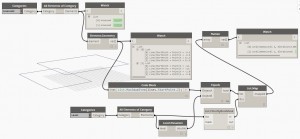

If you really need levels tho, you could try a method similar to this (note the lacing on the “Equals” node):

2014-12-22_140522


#3

Thanks Demitar,

Loading

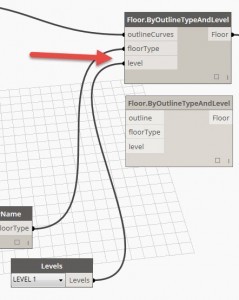

The reason I need the level is when you create floors you need a level input where the loads are taken from. The z value from the loads may work if they know their levels. I can try your suggestion.


#4

You were right I was over thinking it. The floors were created by the loads Z elevation even though I had the elevation in the Floor.ByOutlineTypeAndLevel set to Level 1.
