[Tip] Profile from (projected) Feature Line

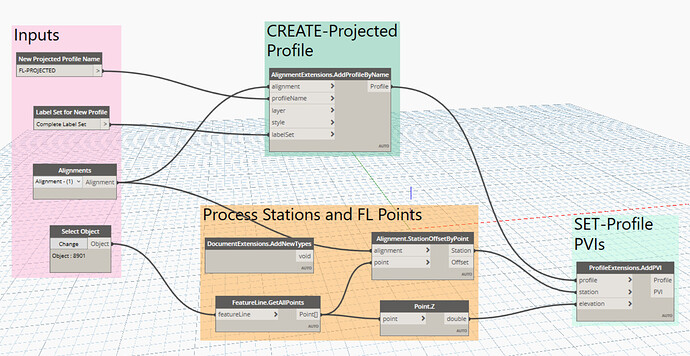

I was helping on the Civil 3D Forum and related how you can use Dynamo for creating a profile from a feature line and thought I’d share here since I don’t recall seeing this topic recently.

Feature line to profile.dyn (30.6 KB)


Nice work on this Kirk. Have you played with using this as a baseline for something like a Ditch Assembly? It would be nice to skip the Alignment step when its not a road. I can do Polyline to Corridor in Dynamo, but can’t figure out the same routine through Feature Lines.

No I haven’t tried that many corridors with Dynamo yet.
