Hey everyone,
Floorplans and Details are different in their Z value. A detail has Far Clip Offset and a floorplan has View Depth.
I want to draw Section Boxes in a 3D view based on the crop box and the Z value. But how do I get the correct Z value parameter? I was thinking of filtering on ViewType. But I am already filtering on whether the Sheet or the View is the Active view…
I am just a bit stuck

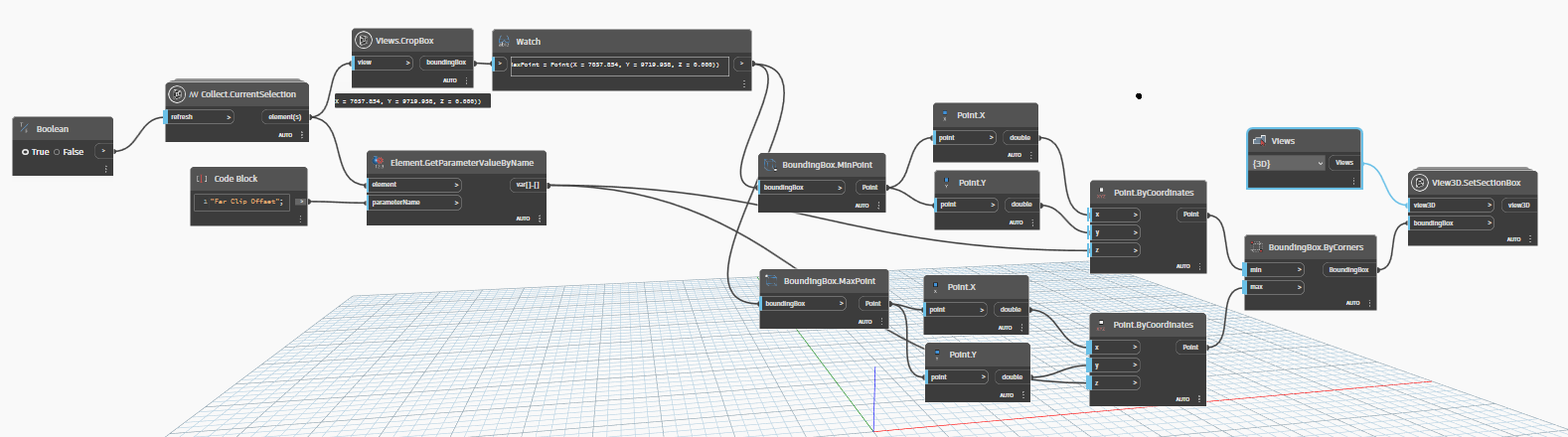

2D naar 3D Sectionbox.dyn (100.4 KB)
That’s not what I need as I already built that within the script.
I am looking to filter based on ViewType as they have a different need for Z value
That is not your original question.
Yes it is as I stated this. I think you need to read more carefully.
I’m not looking for a value, I am looking for the correct parameter based on the ViewType as they are different

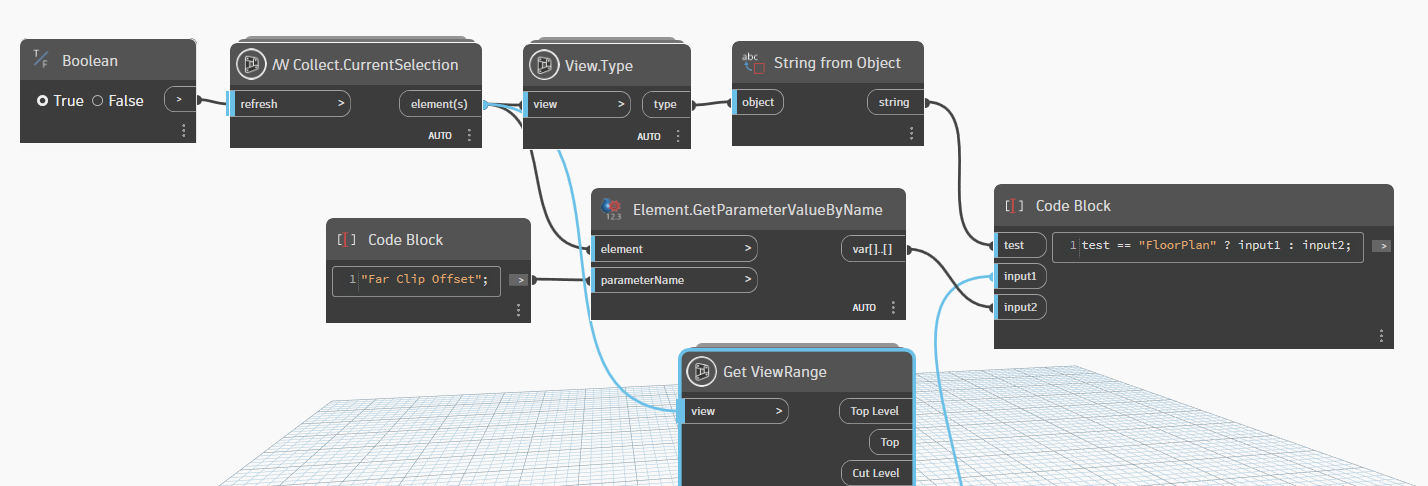

Never used a Code block as a If node. Can I use it for multiple Tests?
I want categorize in 4 ways:
Detail / Section → far clip offset
FloorPlan / AreaPlan → View Depth
CeilingPlan → View Depth reversed
Sheet as active view → find the view on it and qualify for the previously named 3 types.

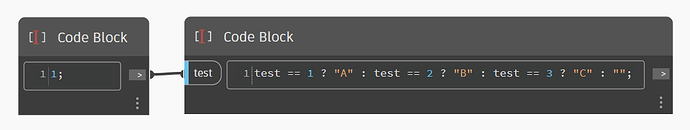

Wow if I only knew in the beginning you can write nested ‘If(’ statements (excel formula style) this way. This is so powerful!
