Sequence of Renumbering Type mark family

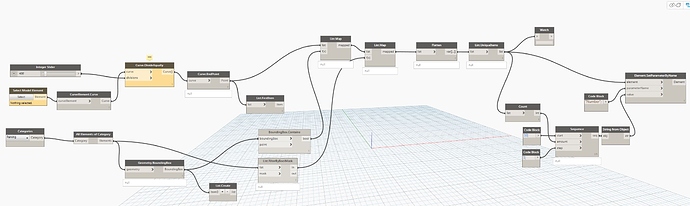

Hi, I want to renumber the Type mark of Light fixture or Fire Alarm Smoke detector in a particular sequence. I got the dynamo file from the web for the Car parking renumbering. So I try to modify it as per my requirement. In that file they are using the spline for the renumbering order. They are using the Bounding box points of Car Park and spline curve points to find the elements. In my case the bounding box of Detector doesn’t intersect the spline because by default spline lie on the floor. Herewith I have attached the snapshot. Is there any way to modify?


Ilayaraja P

If your families are all at the same elevation you could draw your spline as a model line at the appropriate elevation or leave it as a detail line and move it to the appropriate elevation afterwards.
If your families are at varying elevations you could move their bounding boxes to the elevation of the curve.

You have many options to remedy your situation. You just need to give them a try and see what works best for you.

Dear @pilayaa I’m having the same problem, did you manage to solve it?
