Scripting how to change negative and positive offset

Civil3D
1

Hi
I’m creating a script for our traffic designer so that they can use Dynamo to write information from Extended Data to Excel.
They asked for Right and Left side of alignment set as R for Right and L for Left instead of exact offset value as a number so I created this separate part in the script (attached) but I wonder if there is another way I can do it?
Regards,
Patrick

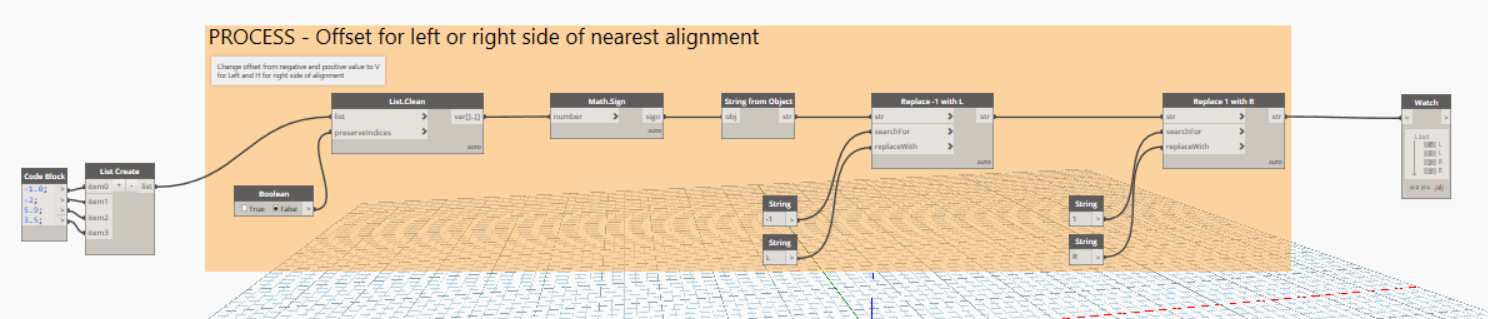

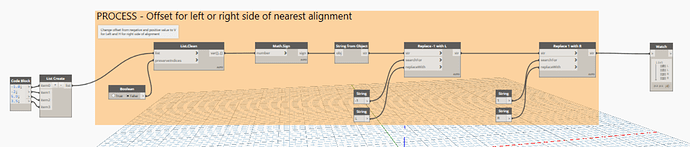

image1488×319 138 KB

OffsetForLeftOrRightSide.dyn (22.1 KB)

1 Like
2

Would this work?

Offsets

3 Likes
3

Thanks for the tutorial on code blocking it Zach. I’d also suggest adding the case of 0 offset just in case.

image759×760 39.8 KB

edit: might actually want to put quotes around the zero condition (… : “0”; ) so you don’t have mixed type list.

3 Likes
4

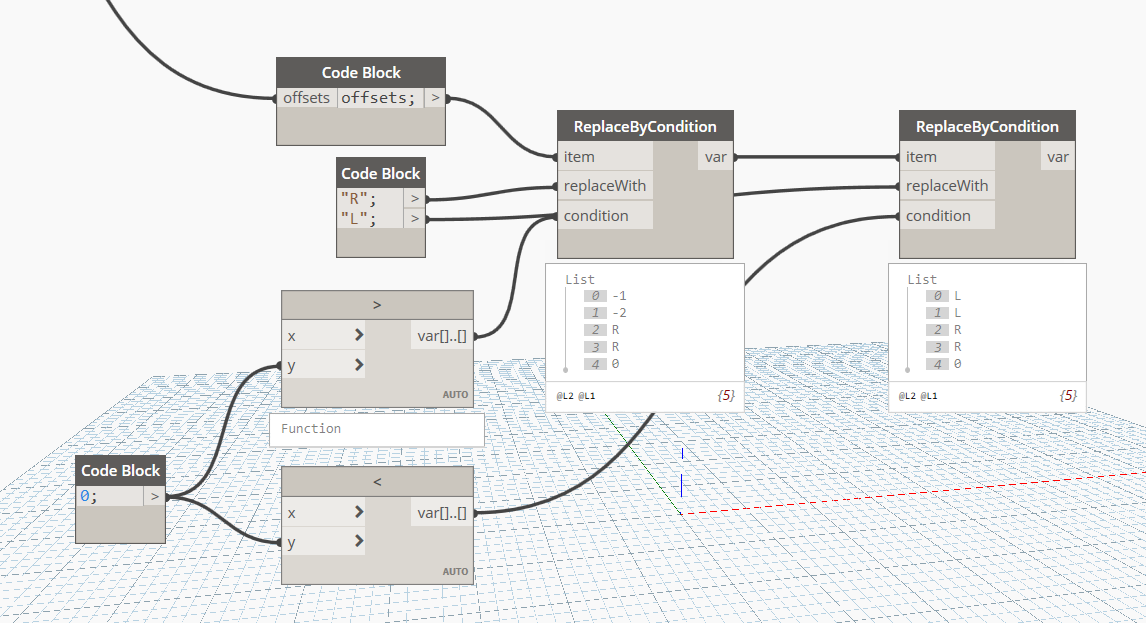

Just for fun/sharing here’s another way:

image1146×623 61.1 KB

4 Likes
6

Thanks for your inputs @mzjensen and @KirkWM
Three really good examples how to deal with the issue using both codes and standard nodes and you also added the capability to show if the object don’t have a offset :slight_smile:
Really love this forum

2 Likes
7

Agree!!
Thanks for the example of coding @mzjensen

8

Thanks @KirkWM how to deal with it using nodes. Similar result as mine but you made it shorter and also added the less or more nodes. Haven’t used them before so it was good to now ow to use them. Need to test them out.

1 Like
