I’m trying to put text object at profile view with Calculated 3DLegnth, I have successfully got XYZ from alignment profile, The rest I need help, any one here in this forum can figure out, see attached Nodes where I’m ended, Thanks for your attention on this post.
Hi @Hannan1 .Can you share a screenshot of what you want to do?
Hi @yaseminV2XL5 I would like to calculate 3d Cumulative length/Chainage with Pythagorean theorem formula, and then get profile view Insertion point to place along the profile band a text object with 3D length/Chainage
How about calculation for 3D Cumulative length/Chainage, to put into string code node.
ممكن
ان ترفق لوحة مثال
@hosneyalaa see
@hosneyalaa null result.
It’s better
attached example drawing and dynamo file
@hosneyalaa Unfortunately
It’s not difficult.
Upload the files to any external site.
Put the link here.
@hosneyalaa It’s here,

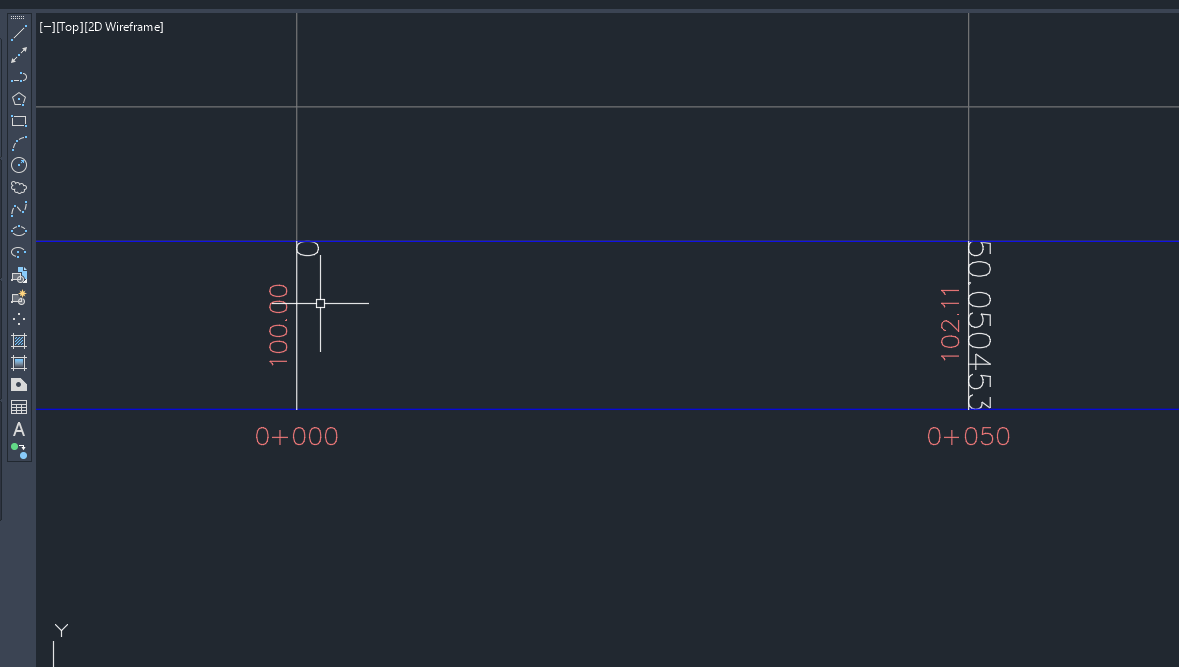

I have place 3D Length with text object in the profile see
@hosneyalaa @yaseminV2XL5 A goal is to put text object with cumulative distance as you can see in the attached drawing where text have placed, we can get coordinates, but the think is how we can convert coordinates to cumulative distance see here

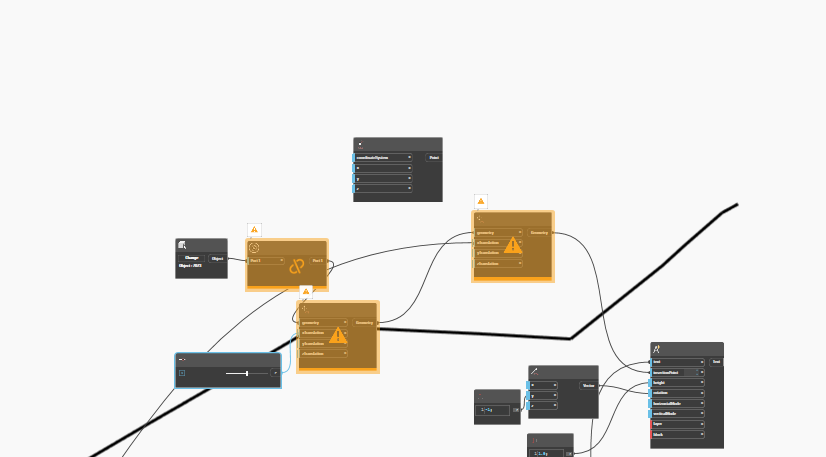

CH Test F.dyn (53.6 KB)
@hosneyalaa What are those errors is it from the Add-Ons packages which i need to install,
Yes - check the workspace references when you open the file.
