New to Dynamo - Place multiple windows

Developers
1

Hallo,
I’m all new to Dynamo. Using 1.2.1.0 with Revit 2017 right now

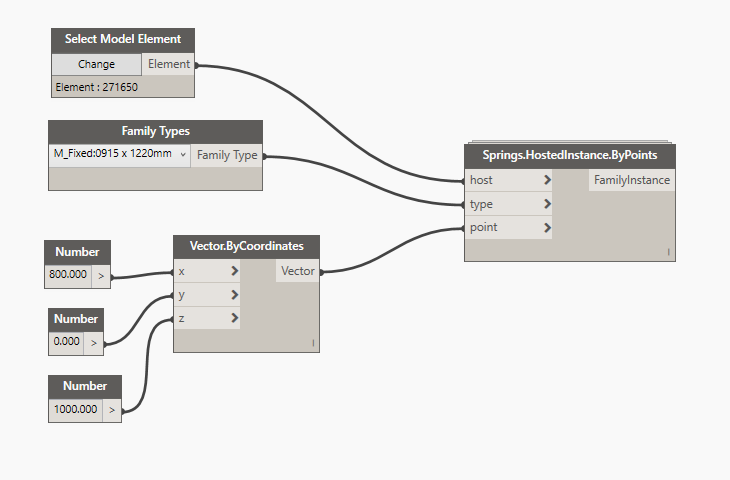

I’m trying to inset multiple windows into a wall. From tutorials etc… I have create this small dynamo script, that work well when putting in 1 window. However I wish to place a series of windows, and that I can’t get to work. I have been looking for tutorials or other scripts, for placing multiple windows (or doors) but can find any.

Hope someone can help me :smile:

image.png730×480 22.7 KB

2

Hi @hepe9000

Right click on the custom node and change lacing to longest.

3

I tried that, did not change anything. I changed both the Vector and Hosted node blocks

4

Hi @hepe9000,

I have done a simple test.
It works for me when i use “Point.ByCoordinates”.

Place%20Multiple%20Windows%2001
Place Multiple Windows 01.png959×626 113 KB

Place%20Multiple%20Windows%2002

Place Multiple Windows v01.dyn (6.5 KB)

Kind regards,
Mark

5

That worked. Thanks! :smile:

6

Hi Henrik,

Good to hear this works for you :thumbsup:

Would you mind marking the post as solved, maybe others can also benefit from it.

ProblemSolved

Kind regards,
Mark
