Move the pipe point to connect the other pipe

[mansonchen]

Whats node can move the pipe point to connect the other pipe and create fitting?

bandicam 2022 02 18 15 07 00 976

Thanks

[jw.vanasselt]

Hi,

I am also very curious about this answer.
I’ve been looking for this for a while myself, I would also like to make a tool that connects connectors or moves one connector to another.

I wonder if this is easy with dynamo because you want to perform the action often and therefore want to use a keyshortcut

[mansonchen]

If I use element set location node can change element curve ,but can’t create fitting.

bandicam 2022 02 18 18 38 30 684

[jw.vanasselt]

You can use the mepover package for create fittings

[mansonchen]

But it only use same height pipe.
If two pipes different height, like this video:

bandicam 2022 02 18 15 07 00 976

and if use Tee.By2MEPCurves one main pipe connect multi branch pipe will have problems

[jw.vanasselt]

Ah okay, I don’t know or this is possible.

[sovitek]

Hi @jw.vanasselt …if you want fitting connect to fitting something could work…

PS which software are you use for make these videos ? arhhh bandicam should take alook first ,hahaha…is it free

[jw.vanasselt]

Nice job! There is only one problem. I want to use a keyshort cut for this action and that is not possible I guess.

I use OBS studio for my videos

[sovitek]

thanks…which keyshort do you use for that task ?

[jw.vanasselt]

I use CV for connect into and VC for connect connector

[sovitek]

Hello @mansonchen …not sure something could work…

[mansonchen]

Hi sovitek,
Thanks you share this way.
But I want to control the end point to connect other pipe.
If two pipes different height, use control point to connect other pipe will create fiitings.

bandicam 2022 02 18 15 07 00 976

[sovitek]

alright…could you share your graph and rvt file with that situation ?

[sovitek]

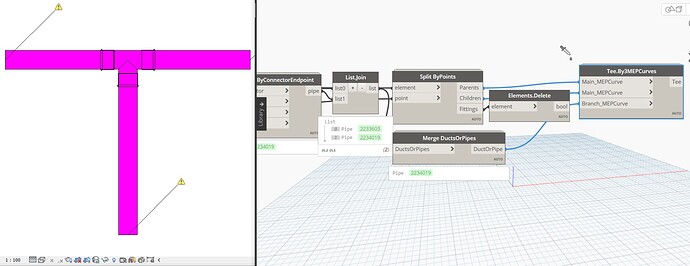

How about something here…

and a version with fitting against fitting

[ahmed.aelgammal]

How can I connect the branches with the main pipe.
Select multiple elements instead of single pipe.

[sovitek]

Hello @ahmed.aelgammal … could you show what you have done so far…btw it should be possible

[ahmed.aelgammal]

I have tried your previous dynamo workflow and tried the one you showed in video but I keep getting this error. I have attached the dynamo file I am working on

1.3_connectBranchToMain.dyn (34.8 KB)

[sovitek]

I havent open your dyn…but looks like your last fitting dont attach 2 pipes

[christian.stan]

Hello,
It looks like its main pipe is not long to accommodate the T (so it returns an error)
Cordially
christian.stan

[ahmed.aelgammal]

could you share with me the script that you developed above to check vs my script
