Does dynamo can help me Displaying a material thumbnail (of a family type) on revit schedules (by using the “type image” parameter) while take it from the actual JPEG file setting on appearance tab, in the material settings of that particular family type? ofcourse i will use same file name from the JPEG as the family type name.

Right now, i need to enter the jpg filename twice for each family type:

  1. on Type image.

2.As a material inside the family.

DYN
DYN1658×885 257 KB

2

hi,
try to access image path of selected element:

than set the path as a string to type image.

3

Hi @danezeq,

You can find the texture paths with the Material Find Texture Path node.

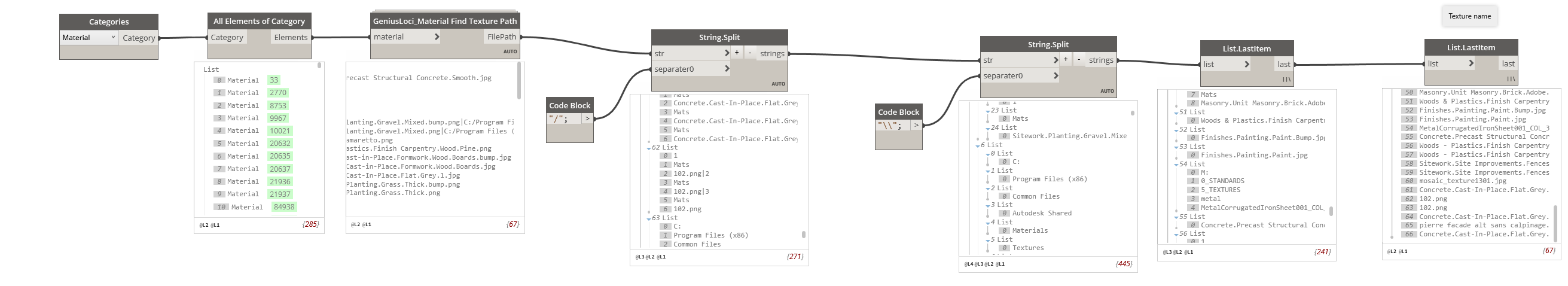

Find texture name
Find texture name2622×478 102 KB

PS : Please note that this can take several minutes to calculate.
