How to modify beam unions usig Dynamo?

Revit
1

Hi, I’m new using Dynamo for a structure so, I don’t know if there is a method to change the union between two or more beams using Dynamo and not going one per one in revit after the importation using StructuralFraming.BeamByCurve.

Thanks

2

Hi Marcos,

Show us how far you have completed your work. This is a help forum to ask for help with things that you cannot figure out on your own, but actually tried. Thanks :slight_smile:

3

Dynamo.PNG1364×727 159 KB

Thanks kulkul,

I’ve explored a bit, but I’m not sure of any step. In dynamo I’ve got like in the picture. And what I’m trying is the good result in revit. Can you help me?

4

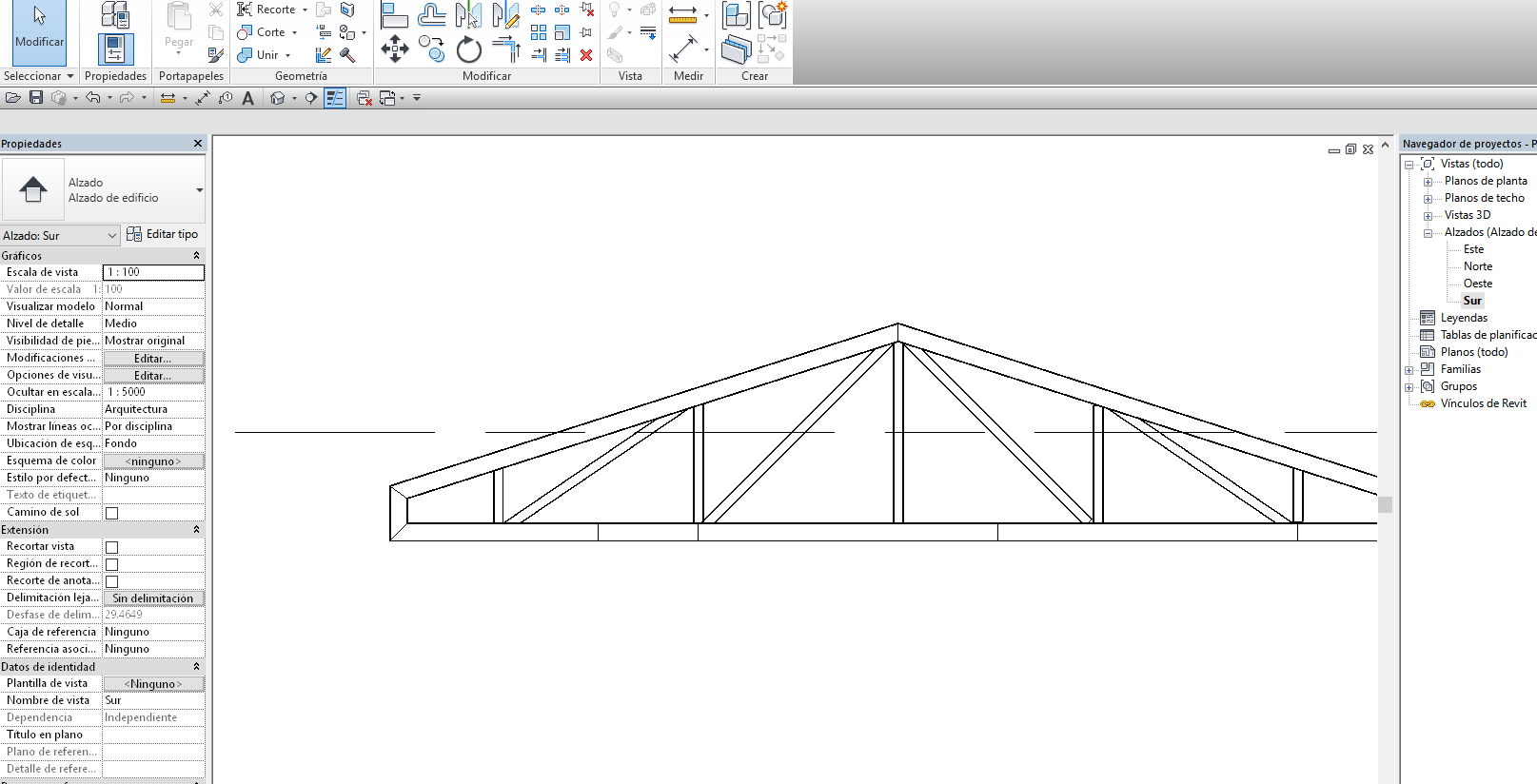

Revit ok.PNG1615×824 69.3 KB

This is what I’m trying to get

5

I don’t know of access to the native miter or coping options, but you can achieve this by incorporating unique end controls of your framing families. These would include positive/negative start/end offsets as well as positive/negative start/end miters. Its a bit of up front work but for non-concrete elements it creates very specific and consistent control of member joins.

6

Thank you jeff, I will explore this way
