How can I make section views and create sheets?

[nathalia.perez]

translated by moderator. See below the line for original post.

---

Hello everyone, I am new to dynamo and I am making section views of several doors from different families, but when creating the sheets they do not appear and on the other hand the sections look like nothing more than a line. The last node I used is Sheet.ByNameNumberTitleBlockandViews and it gives me the following error: Sheet.ByNameNumberTitleBlockandViews operation failed. View 0 Could not be packed on the sheet. Does anyone know how I can make sections of several doors and create the sheets to display them?

---

Original post below

---

Hola a todos , soy nueva en dynamo y estoy realizando vistas de sección de varias puertas de diferentes familias, pero al crear los sheets no aparecen y por otro lado las secciones se ven como una linea nada mas. el ultimo nodo que utilicé es el Sheet.ByNameNumberTitleBlockandViews y me da el siguiente error: Sheet.ByNameNumberTitleBlockandViews operation failed. View 0 Could not be packed on the sheet. Alguien sabe como puedo hacer secciones de varias puertas y crear los sheets para la visualizacion de las mismas?

[jacob.small]

@nathalia.perez the forum language is English. This is a requirement in order to make search work, otherwise I would practice my Swedish with each of my replies.

For future posts please run text though an online translator of your choice, keeping the original above/below a break point as I did above if you’d like.

[nathalia.perez]

I will take it into account, thank you very much!

[bharat.minocha]

@nathalia.perez Care to share the snip of what’s your workflow?

[sovitek]

Yes its possible, another option could probabaly be a door legend if i understand right

PS Genius Loci

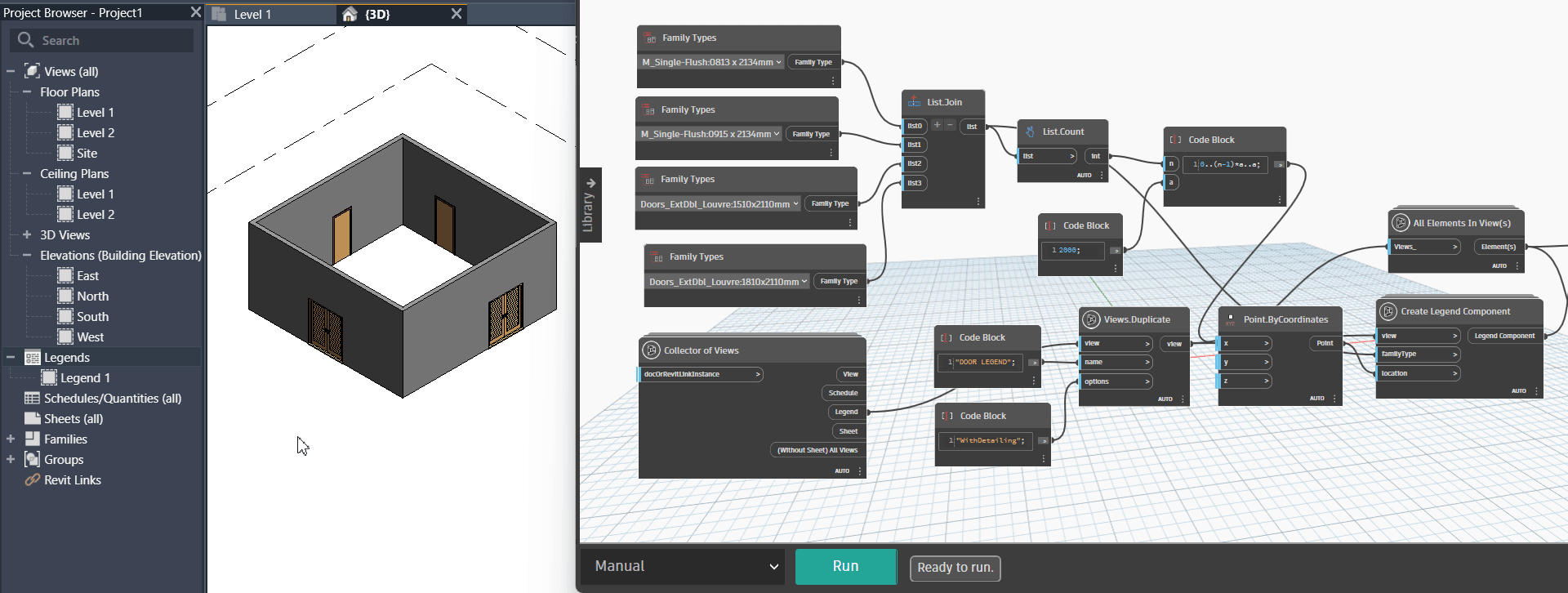

and probably something here with section and set on sheet…rough example

PS Datashapes

[nathalia.perez]

thank you very much for taking the time to make an exercise to show me. however, the cuts still do not appear in the revit section views, and the sheet.ByNameNumberTitleBlockViewsandlocation node does not work since it creates the sheet but does not show the view inside it.

[sovitek]

hard to say, could you show your whole graph? but when i look in your browser it seems you dont create any section view…i use Datashapes for create section view…and be sure you have the dynamoironphyton 2.7 version 2.5 installed as well…

[nathalia.perez]

An apology for answering until now, the system did not let me upload images. This is the path I made to generate the sections.

[sovitek]

no worries, try something here

section.dyn (51.8 KB)

and be sure you have the dynamoironphyton 2.7 version 2.5 installed as well
