Group PolyCurves by Distance, but only according to their start- and endpoints

Geometry
,
#1

Hello everyone,

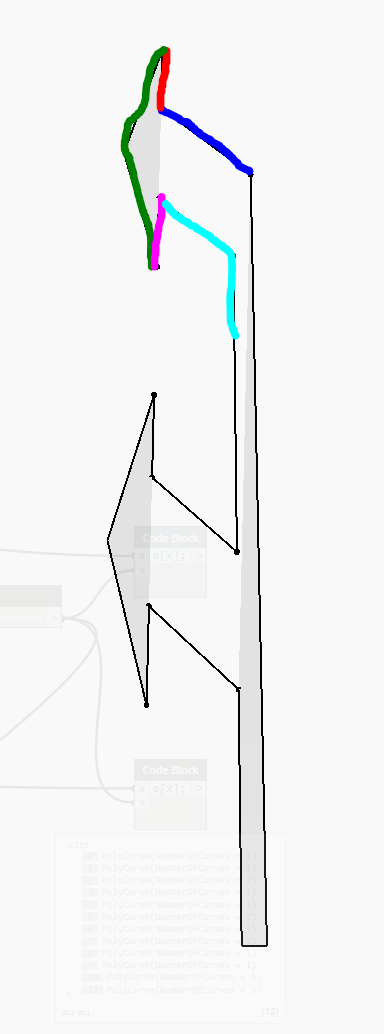

I am working on a script which gets (2D) Civil3D Blocks into Dynamo to turn them into 3D Civil3D Objects. The problem which i am facing right now is that PolyCurves which intersect with other PolyCurves which are already Closed, see image below:

image527×959 29.8 KB

This wouldnt be a problem if i could just Close the Blue Polycurve, except i cant do that because i have other Objects in my file which look like this: (As you can see the Surface is wrong)

image384×1034 19.4 KB

I think the solution here lies with the fact that in the first screenshot the lines are not connecting at their start- or endpoints but they are at the second image. But i dont know how to group Curves only by their start- and endpoints

I hope i was clear enough, and that someone knows a good way to approach this :slight_smile:

Regards,
Daan

Files:
Complex Road Marking Script V4 04-12-2020.dyn (33.5 KB)
RoadmarkingDWG.dwg (892.9 KB)

#2

Try a group curves node from Archi-lab. It may not load in C3D but last I checked it was a custom node which means you can copy / paste the contents D4R to add the code to your graph, save the graph, and open it in C3D to get the good stuff.

1 Like
#3

Okay thanks for the tip, i’ll try that!
Ps: what does D4R mean?

#4

Hi Jacob,

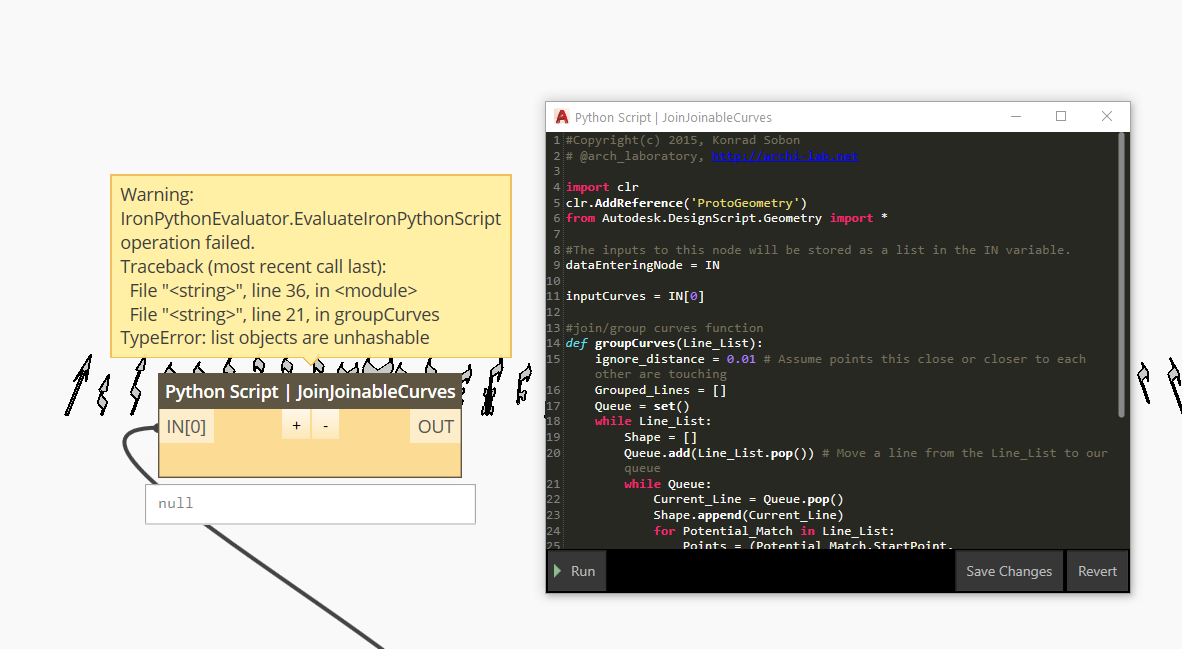

I tried to do the thing that you said but i am getting this error:

image1182×649 58 KB

I don’t know how to solve/ approach this because i don’t know a lot about Python.

The Script:

#Copyright(c) 2015, Konrad Sobon
# @arch_laboratory, http://archi-lab.net

import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *

#The inputs to this node will be stored as a list in the IN variable.
dataEnteringNode = IN

inputCurves = IN[0]

#join/grou    p curves function
    def groupCurves(Line_List):
    	ignore_distance = 0.01 # Assume points this close or closer to each other are touching
    	Grouped_Lines = []
    	Queue = set()
    	while Line_List:
    		Shape = []
    		Queue.add(Line_List.pop()) # Move a line from the Line_List to our queue
    		while Queue:
    			Current_Line = Queue.pop()
    			Shape.append(Current_Line)
    			for Potential_Match in Line_List:
    				Points = (Potential_Match.StartPoint, Potential_Match.EndPoint)
    				for P1 in Points:
    					for P2 in (Current_Line.StartPoint, Current_Line.EndPoint):
    						distance = P1.DistanceTo(P2)
    						if distance <= ignore_distance:
    							Queue.add(Potential_Match)
    			Line_List = [item for item in Line_List if item not in Queue]
    		Grouped_Lines.append(Shape)
    	return Grouped_Lines

    OUT = groupCurves(inputCurves)
#5

I Think the error has to do with the fact that i am feeding nested lists into this Python script.
But i dont know how to change this script to also accept nested lists

#6

Wrap it in a new custom node perhaps? How much do you need this to scale?

1 Like
#7

Hi @JacobSmall,

Yeah i did that and now it works as expected!
Thanks for the help!!
