Get Room Boundaries

Revit
1

I am using Room Boundaries node by archilab to get the room bounding elements such as Wall, columns.
But this node is giving some duplicated elements (walls).

I can eliminate duplicates but I don’t want to eliminate them when there is a rectangular column with multiple sides inside the room boundary.

Please suggest how to remove those wall duplicates.

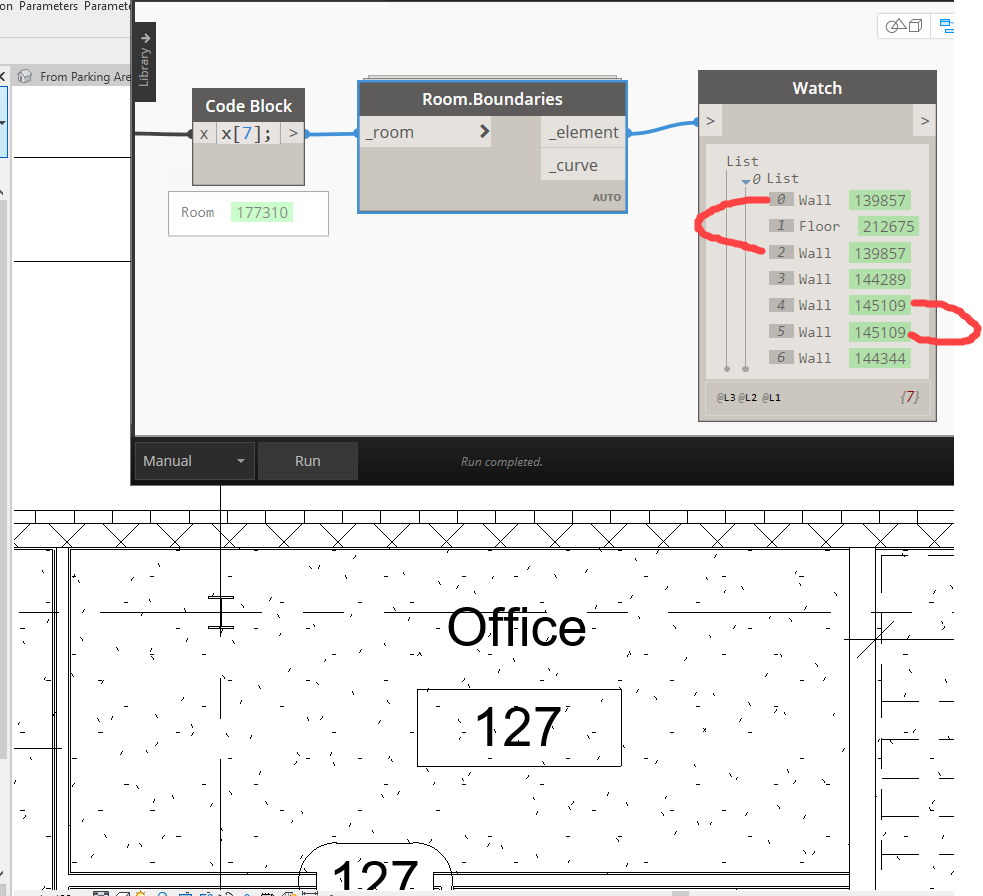

image983×896 41.9 KB

2

My guess is that it’s picking up the same wall twice as it is bounding two rooms…

I’m a bit confused as to what you’re asking but maybe try “List.UniqueItems” if you want to get rid of duplicates. :slight_smile:

3

One of the wall is an exterior one (not shared with any other room) which is duplicated.

I can’t use List.Unique items, because there are rooms with rectangular columns in it. Those columns have different sides bounding the room and I want them to be counted maybe twice, thrice depending upon its position.

4

Just to confirm, are the curves associated with the duplicate items also duplicate?

5

Will check that. Off from work.

I just tried it on the Autodesk sample project.

6

I think you need to give us a bit more graphical information…

Reading your text has me very confused. :confused:

1 Like
7

Apologies. I’ll share the details when I get back to work.

8

Pfff… log in over the weekend… The internet never sleeps :smiley:

9

@Alien
Here, all that I don’t want are the repeating walls.

The column is repeated 4 times because 4 sides of it are bounding the room.

@Robert_Younger, Curves are not showing anything.

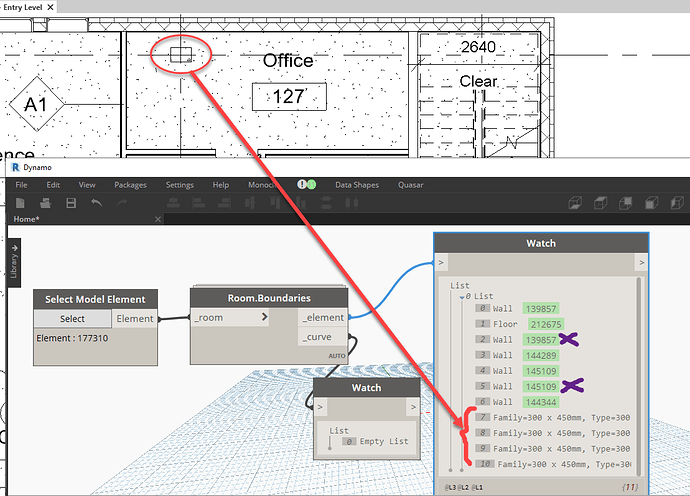

image1109×798 94.2 KB

10

If anyone would like to have a look at the python code.

# Copyright(c) 2015, Konrad K Sobon
# @arch_laboratory, http://archi-lab.net

# This node was an update to Wall.Boundaries node
# that can be found in Clockwork package. Thanks
# to Andreas Dieckmann for making the original one.

import clr
clr.AddReference('RevitAPI')
from Autodesk.Revit.DB import *

clr.AddReference('RevitNodes')
import Revit
clr.ImportExtensions(Revit.GeometryConversion)

clr.AddReference('RevitServices')
import RevitServices
from RevitServices.Persistence import DocumentManager
doc = DocumentManager.Instance.CurrentDBDocument

import sys
pyt_path = r'C:\Program Files (x86)\IronPython 2.7\Lib'
sys.path.append(pyt_path)

def Unwrap(item):
	return UnwrapElement(item)

def ProcessList(_func, _list):
    return map( lambda x: ProcessList(_func, x) if type(x)==list else _func(x), _list )

def GetRoomBoundary(doc, item, options):
	eList = []
	cList = []
	try:
		for i in item.GetBoundarySegments(options):
			for j in i:
				eList.append(doc.GetElement(j.ElementId))
				cList.append(j.Curve.ToProtoType())
	except:
		calculator = SpatialElementGeometryCalculator(doc)
		try:
			results = calculator.CalculateSpatialElementGeometry(item)
			for face in results.GetGeometry().Faces:
				for bface in results.GetBoundaryFaceInfo(face):
					eList.append(doc.GetElement(bface.SpatialBoundaryElement.HostElementId))
		except:
			pass
	return [eList, cList]

if isinstance(IN[0], list):
	items = ProcessList(Unwrap, IN[0])
else:
	items = [Unwrap(IN[0])]

options = SpatialElementBoundaryOptions()

boundloc = AreaVolumeSettings.GetAreaVolumeSettings(doc).GetSpatialElementBoundaryLocation(SpatialElementType.Room)
options.SpatialElementBoundaryLocation = boundloc

elementList = []
curveList = []

try:
	errorReport = None
	if isinstance(items, list):
		for item in items:
			elementList.append(GetRoomBoundary(doc, item, options)[0])
			curveList.append(GetRoomBoundary(doc, item, options)[1])
	else:
		elementList = GetRoomBoundary(doc, items, options)[0]
		curveList = GetRoomBoundary(doc, items, options)[1]
except:
	# if error accurs anywhere in the process catch it
	import traceback
	errorReport = traceback.format_exc()

#Assign your output to the OUT variable
if errorReport == None:
	OUT = [elementList, curveList]
else:
	OUT = errorReport
11

@theshysnail, what’s the final purpose of getting columns this way? Do you need bounding curves of columns?

Walls and all others are repeating, just use Room.FinishBoudary and you’ll see, N elements and N curves in room.

P.S. Do you have latest version of Archilab? _curve list must contains corresponding curves of elements. Or you can use Room.Boundaries from ClockWork package.

Look here too: To get Floors from Room Boundaries, Archilab and Clockwork

12

I am trying to get the net area of a room (all paint-able faces excluding walls/windows).

14

Look at Room.Finishes from Clockwork
