ETFE cushions

[mikael.santrolli]

Hi There!
My journey with Dynamo continues!
I have to create etfe panels in Revit and I was thinking to use Dynamo. Since the dome is quite complex (similar to Anaheim station) I need these etfe to be rhomboidal and filleted in the angles.
Any way to inflate a surface when I have the boundaries of the rhombs?
Do you suggest combining some revit families?

Thank you!

[Andrew_Hannell]

Hi Mikael

You don’ t necessarily need Dynamo for this- depending on the geometry, adaptive components might do the job

My fellow Sydney-sider Tim Waldock aka Revitcat has some great stuff on his blog

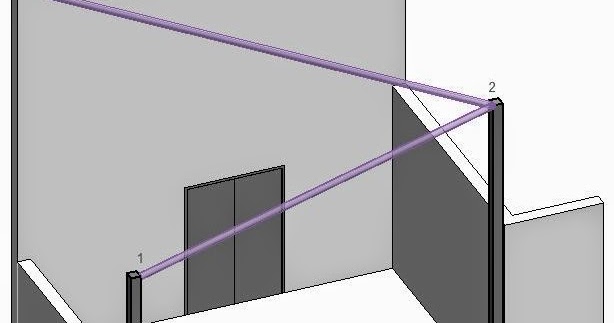

Reasons to be Cheerful - about Revit Adaptive Components

Andrew
