Elevation/section/callout tags

Revit
,
1

is there an easy way to find all elevation/section/callout tags? i want to rename types, thanks

2

Hi,

You have to get there via ViewFamilyTypes. I setup a quick graph which gets the Callout, Section and elevation Tags for you. I could not rename them with OOTB Dynamo because it said the Name was Read only, so I wrote a small python script for that. Check it out:GetTagTypes.dyn (44.3 KB)

Hope it works for you

1 Like
3

cool, ViewFamilyTypes! thanks Joelmick.

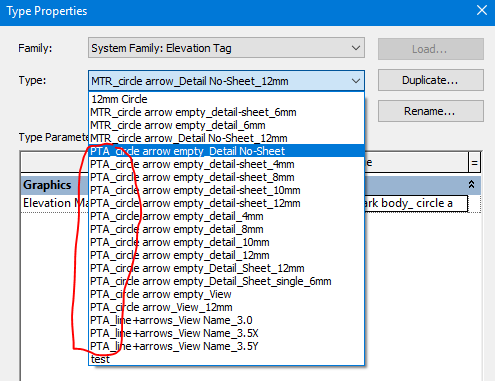

works great except for unknown reason, the graph won’t pick all types in elevation and section tags, see uploaded image w/ the red colored ones, perhaps Python is the last resort?

image914×362 33.1 KB

4

Okay weird, it seems Dynamo doesn’t recognizes them if you have not used them before. But via the Revit API you can get the other types. I have added a python node for the Callouts.

It seems the Section and elevation tags work fine.GetTagTypes.dyn (50.0 KB)

1 Like
5

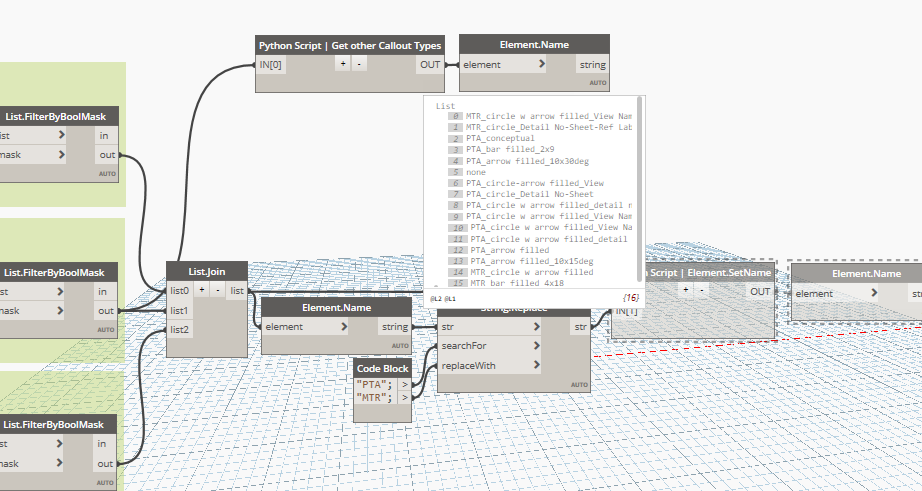

now it works totally even though i’m not exactly understood, seems your Python code GetSimilarTypes() do the tricks, what exactly does that function do? well, even though i had API experience but never used that function, thanks again!

image922×491 62.9 KB

edit: OK, GetSimilarTypes() is exactly what it means, learned new API stuff

6

Basically it looks at the system family and returns all the types which hang below that one. :slight_smile:

7

got it, very appreciated for your help!

1 Like
