Delete Doubled up Detail Families

1

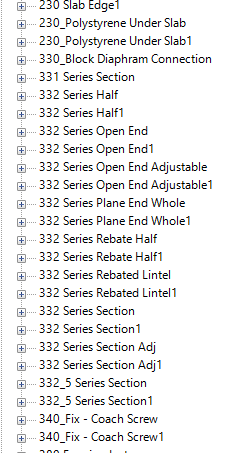

Some how in building a template I have doubled up my detail families…

I started looking at Dynamo to assist in deleting the double ups.
2 Questions

  1. I think Dynamo looks for instances in a project in the documents, hence not sure how to get a list of detail family types.

  2. Not sure if I can delete a family type from the document with Dynamo.

Thank you if you can help start me on the right track.

2

Hi Justin,

You can collect all families by using Python. Then you can filter by bool mask the duplicate ones. Good Luck!
<img src="//cdck-file-uploads-global.s3.dualstack.us-west-2.amazonaws.com/business6/uploads/dynamobim/original/2X/6/67ac7e5290d34d28ef220c1f8b6f476f0ca7f345.png" width=“690” height=“376”

2 Likes
3

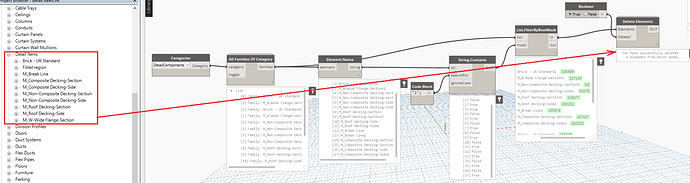

You can also use clockwork “All Families of category” node to get detail components families:

Untitled.png1755×449 107 KB

Untitled1.png1890×503 117 KB

1 Like
4

It might be more prudent to check only the last symbol of the family type’s name:

2016-06-13_10-43-11.png1505×261 38.5 KB

1 Like
5

@Dimitar_Venkov thought about it but went with string contains because if the string (1) comes in between or in first instead of last symbol :slight_smile:

6

Hi,
Shouldn’t we change family type to the correct one before delete.elements node?

7

You’re totally right. If you’re not careful and delete a family type through dynamo, all of its instances will disappear from your document. In this case, we’re dealing with a template file, so hopefully they’re yet to place any family instances :slight_smile:

8

@Tomasz_Puchala @Dimitar_Venkov is right he is dealing with template file :wink:

9

Oh, havent read carefully first post. For template it’s ok :slight_smile:

10

Hi All.
Thanks for all this help.
I have Dynamo 1.0 installed, Clockwork has not been updated for 1.0
I was able to replace the All Elements of Type node with the Python Script from Kulkul.
I got all the way to the last node Delete Elements, this node does not seem to be part of Dynamo, I’m guessing it is a clockwork node.
I ran out of time to install an older version of Dynmo to restart the graph.

Thanks for the help - I can see this will do exactly what I want.

11

Actually Tomasz_Puchala is correct.
I found out why I have a double up.
We have a drafting view that lays out all our detail families with their tags.
I imported the drafting view, this caused the double up.

12

Is it possible to do this with annotation symbols?

13

@Dimitar_Venkov and @Kulkul, where do you get the node for Delete Elements?

14

Hi @Amu

You can get it from archi-lab package.

15

the only one I can find from archi-lab is “Elements.Delete”. It doesn’t contain custom nodes like you have in yours.
