Cutting Extra solid with void family which lies below the linked Topography from Civil 3D

Revit
, , ,
1

Hi everyone!!
I was trying to create a void family which follows the topography mesh and cuts the solid elements which lies below the topography. But unfortunately I am unable to find any solution for that, as the topography is linked from Civil 3D into the Revit. I have tried many things to achieve it but didn’t got the desired results. Now recently I came across Jostein Berger Olsen script, but in that also for Geometry split node I am getting only one solid rather then two as shown in below image

Also Mesh to polysurface node gives different results at different dynamo scaling, so for me it gives proper result at small scale in dynamo.
Also note that the topography follows the Geo co-ordinates which is linked into the Revit.

I am trying to find any solution for this since past one week. It would be great if someone helps me with it…
Thankyou for your time.

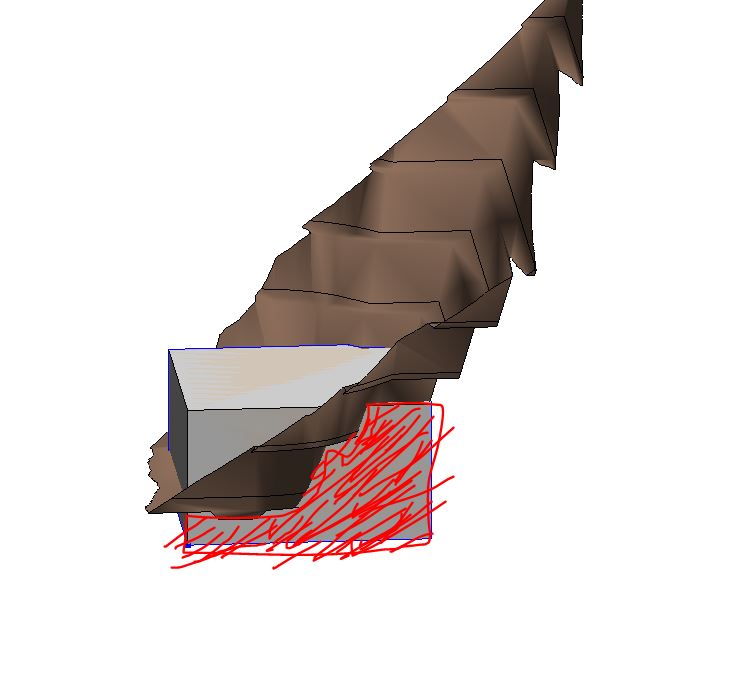

Image 01
Image 011284×395 33.3 KB

Image 02
Image 02732×683 31.9 KB

2

Hello @Shan_0502 try ampersands split tool could probably work…

Capture
Capture1870×773 86.3 KB

Capture
Capture1853×726 85.6 KB

3

Hello Sovitek…
Sorry for the late reply. Actually I tried the tool which you mentioned, but still it is not working.
The topography has been linked through Civil 3D. So I think that might be causing the problem. I am just assuming not sure about it.
Have a great day…
Thanks…

4

Hi try share your files…dwg-rvt…you can use filetransfer,webtransfer etc…and share the link here
