Creating System Families from an excel sheet CHALLENGE

Packages
24

This incorrect behaviour of Dynamo is corrected in Dynamo 2.3. Anyway the packages are installed correctly despite the shutdown of Revit.

The lists of thickness, material and function have an unequal length so use the longest lacing on the Create Compound FamilyType node.

Create%20wall%20types
Create%20wall%20types1035×495 33.8 KB

1 Like
25

it works!!
thank u very much :star_struck:

26

Hi @Alban_de_Chasteigner,

Is there a possibility to overwrite the floors created by this workflow?

For example: I have a floor called “Test1” and its materials layers called “S1, S2, S3”. In a later revision, “Test1” change the materials layer as “S1, S4, S3, S5”.

Thanks a lot,
Michele

27

Hi,

Use the FamilyType.SetCompoundLayerMaterial of the Clockwork package to change the materials in the existing floor.

SetCompoundLayerMaterial

29

Hi @Alban_de_Chasteigner

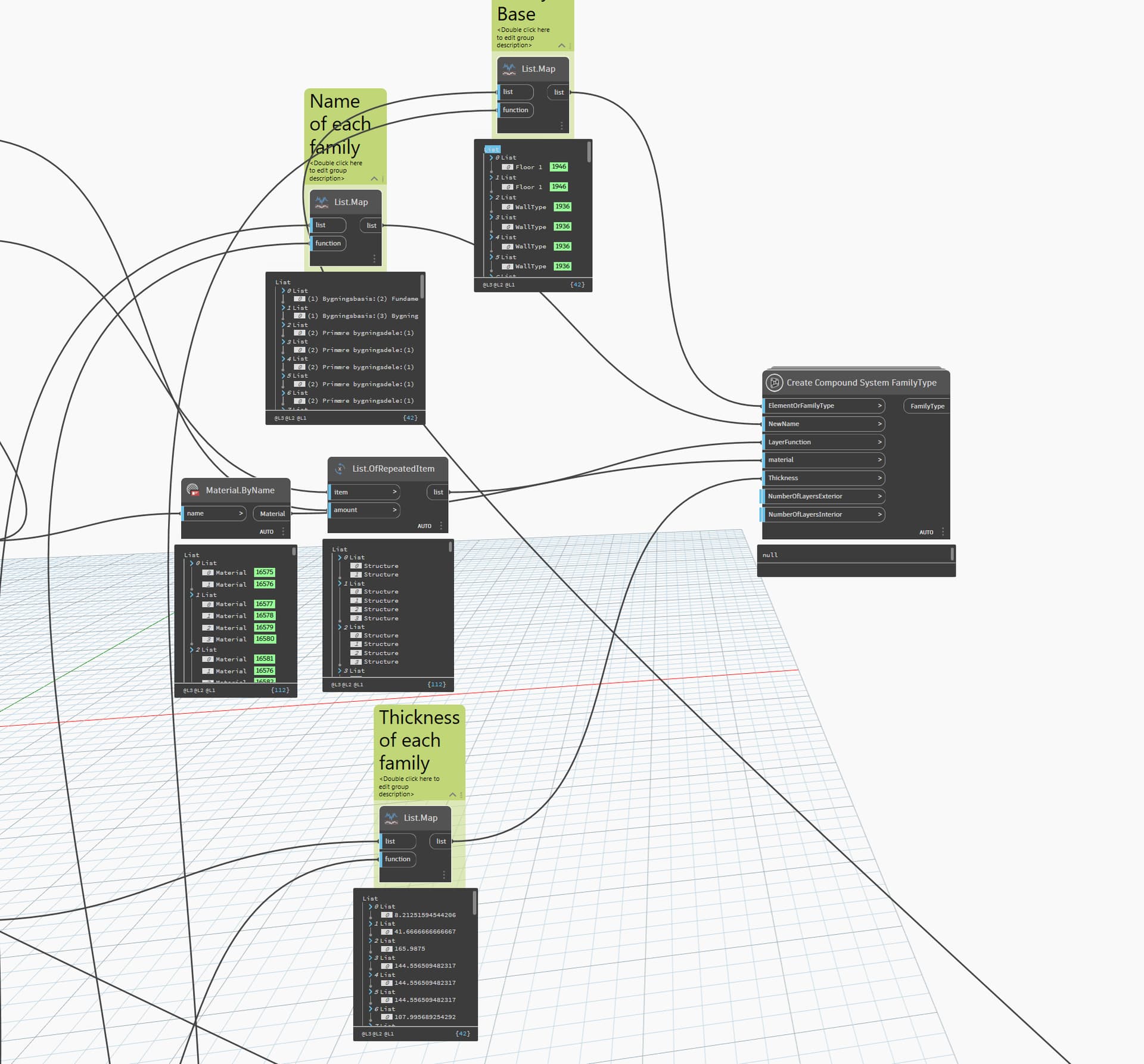

I have a problem with creating multiple familyTypes. I have the inputs as follows

image1920×1786 240 KB

Do you have any tips to solve this?
Best
Martin

30

Hi,

As specified above, you must use the longest lacing with lists of unequal lengths.
Use Flatten nodes to simplify your list structures.

Create walls
Create walls1200×1104 64.5 KB

31

Hi, thank you for the quick reply, it looks like it solved the issues, partially!

Do I have to use a single item for the ElementOfFamilyType?

image2087×1550 463 KB

Best
Martin

32

Hi again, sorry for the spam. The problem was that the names of the families i was feeding in, were too long :slight_smile: . Thank you for your help!
