Create Curtain Grid from Curve

[evesf]

Hi Everyone!
It’s my first post in this Forum. I don’t know if there is a way to create a curtain grid from a geometry ( a Curve). I am working on a very complex surface and I don’t know how to create that grid. Is there a node for that?

[Kulkul]

You can create GridLine by point. Check these posts:

Create CurtainSystem gridlines

@john_pierson Thanks so much! I just tried it out but I don’t know if I’m doing something wrong or not. In the previous release, the “CurtainGrid.AddGridLineByPoint” would allow me to add multiple lines at the same time and apparently now I can only add one at a time? My file is inserting a grid line where it finds a reference plane. [Gridline]

Randomise grids on curtain wall from list of spacing values

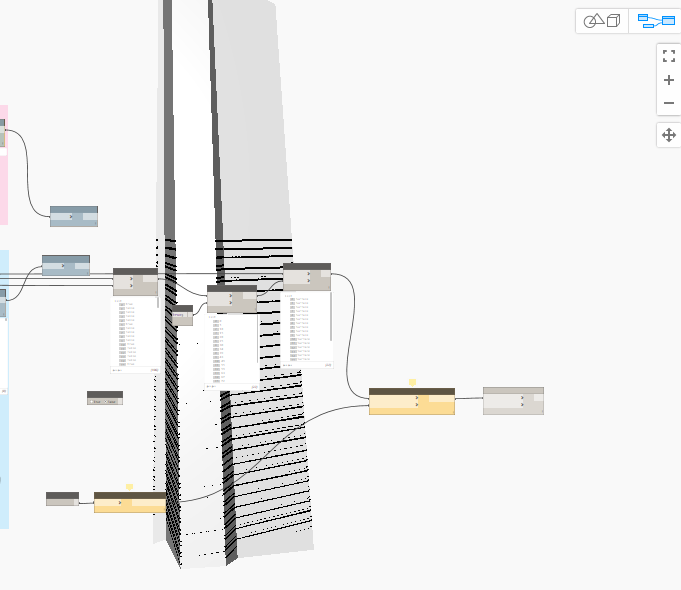

I added a bit to visualize the panels to better find a preferable confugration before running the graph (with the CurtainGrid.AddGridLineByPoint node unfrozen): [random%20curtain%20grids] [curtain%20grids%20at%20random%20vals%20from%20list%20with%20visualizer] Add Curtain Grids at Random Vals from List.dyn (18.3 KB) Hope this works for you I’m thinking there could be a more effective/concise solution than this, so maybe someone else might share some ideas

[evesf]

which package is that node coming from? Thanks!!
