Hello everyone, I am a French beginner in dynamo
I have to make a floor of a clarifier in conical shape
I can’t manage to give a slope shape to a circular floor could you help me.
Thanks
Welcome to the community.
What have you tried so far? This seems more like a Revit question than a Dynamo question if you’re stuck on even the theoretical creation of this floor before even automating it. There are many ways to create and modify a floor. You need to focus on one that works for this scenario before looking to automate it.
3 Likes
Merci beaucoup, alors en effet cette tâche est entièrement possible à réaliser sur revit cependant, cet élément étant répétitif sur de nombreux projets, pour gagner du temps, un dynamo serait mon unique option. (Impossible de le faire en famille revit car des réservations doivent y être placer)
EDIT MODERATION : TRANSLATION
Thank you very much, so indeed this task is entirely possible to achieve on revit however, this element being repetitive on many projects, to save time, a dynamo would be my only option. (Impossible to do it with the revit family because reservations must be placed there)
Et pour répondre à ce que j’ai déjà essayer, j’ai tout d’abord essayer de créer un sol circulaire et de modifier les points ce qui est impossible puisque c’est un cercle je pense. Ensuite j’ai essayer en créant un cone cependant l’outil floor de dynamo demande une curve ou polycurve. Jai chercher à obtenir des curves de ce cône je n’ai pas réussi.
EDIT MODERATION : TRANSLATION
And to answer what I have already tried, I first tried to create a circular floor and modify the points which is impossible since it is a circle I think. Then I tried by creating a cone however the dynamo floor tool asks for a curve or polycurve. I tried to obtain curves from this cone, but I did not succeed.
welcome @kevin3 , the official language of the forum is English
You should be able to modify subelements with the SlabShapeEditor. You can use this to add a point and adjust its offset.
You can also create a model-in-place floor to get just about any shape you want.
1 Like
Hello, I think if you go in a half circle and tickle Mr. Nick’s api given is related.
edit:
here is a track via node
remark (the offset must be entered in feet)
Cordially
christian.stan
1 Like
Thank you, however I don’t understand the concept of API, how should I use the codes you have indicated ?
Hello, here is a version broken down into 3 sectors, it’s doable in 2 sectors (only one sector, I don’t know how to do), I’ll let you script if you want to change
script:
19 Avril Forum anglais rep shape_conique.dyn (70.3 KB)
Cordially
christian.stan
1 Like
The nodes would be easier if you’re not familiar with how to use the API.
1 Like
bonjour, merci de votre réponse, cependant je ne comprend pas, j’ai télécharger votre fichier et l’ai utiliser une erreur apparait le sol ne peut pas se modifier. Je suis sur REVIT 2023. Peut être un problème de version ?, une action a faire au préalable sur dynamo ?
Merci
The language of the forum is English for a universal side of the different countries, it must be respected (this makes several messages to send) have you used the dynamo player, I am on Revit 2023.1
(you can dissociate the group at the end)
Cordially
christian.stan
1 Like
Hello
sorry, I thought a translation would appear because I had one for one of the previous messages. Yes I used the dynamo player.
The group is not created so I can not disocate it.
I have to use the dynamo player to create the group. The group is not created so I can’t disocate it.
thank you
Sincerely
1 Like
Hello, if you try on dynamo
Are you in manual mode?
I don’t see the value of your DZ (yet you have a result in the following code block) and the filter is based on @L2 of the node remove if not
return information about your error messages

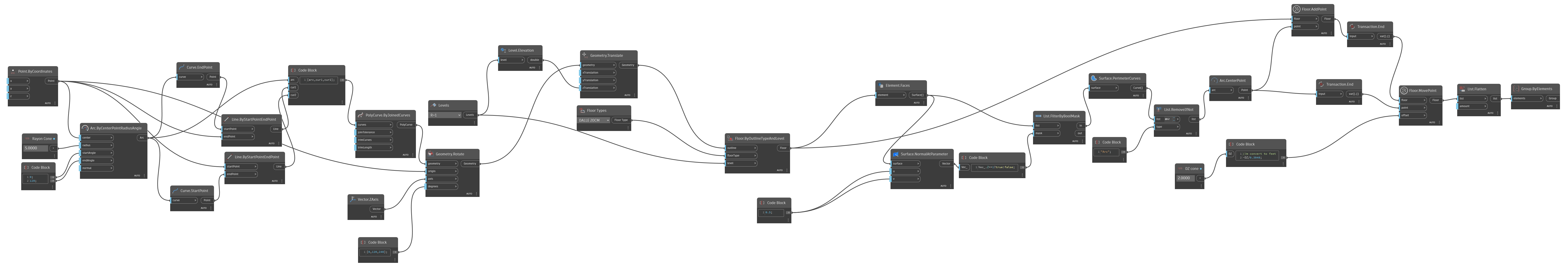

I attach partial graph after execution
edit: M. @Draxl_Andreas , you could try to see if the attached script works, thanks in advance
19 Avril Forum anglais rep shape_conique.dyn (64.5 KB)
Cordially
christian.stan
Yes, I am in manual mode. The DZ value is good the @L2 is good too, I don’t know why the lists are null.
Thanks for your help
1 Like
Try with this script
19 Avril Forum anglais rep shape_conique_ver2.dyn (72.2 KB)
I flattened the list of points add to the slab
Indicate what the error message is in the warning symbol
cordially
christian.stan
Hello, I tried it and it gives me the same error at floor add point “the shape of the floor can not be changed”
Thanks you
Sincerely
1 Like
Hello, I’ll try to dig some more (a forum friend gave me a clue
) in a different direction, I’ll get back to you if I succeed.
Cordially
christian.stan
Hi @kevin3 probably something could help…clockwork have some nodes for slabs probably it works better…
1 Like
It’s ok I found the mistake, it was just a type of floor that was flat but not changing. I still have to make the hole in the center that seems complicated.
