Array Families Along a Curve


#1

Hi all, I’ve seen a few posts on this in the past but have not found any conclusive answers. What is the best way to array a rectangular family perpendicularly across a curve?

I have been able to divided the curve and establish coordinate systems that are perpendicular but FamilyInstance.ByPoint does not allow me to apply the orientation of the coordinates. Is this something I can dousing the UV grid? Can I rotate the
amilies after the array? An added rotation instance parameter is less than ideal.

Capture2

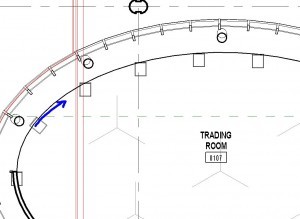

Lighting fitting on a series of x,y,z coordinates
#2

try creating a horizontal frame at parameters along the curve, then place families on those planes.


#3

Not sure what you mean by “horizontal frame.”


#4



Screen Shot 2015-04-16 at 2.45.06 PM

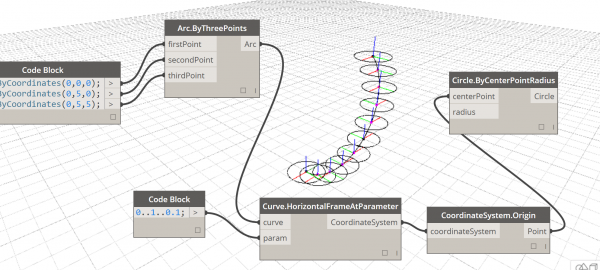

Hi, I mean the Curve.HorizontalFrameAtParameter Node, you can just search for horizontal in the search bar
